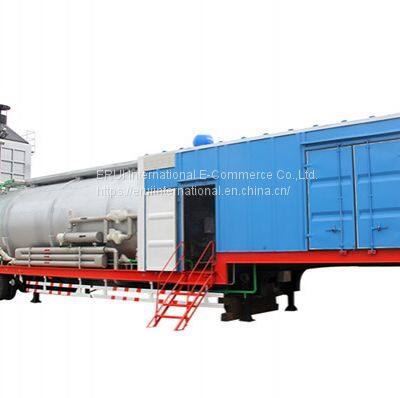

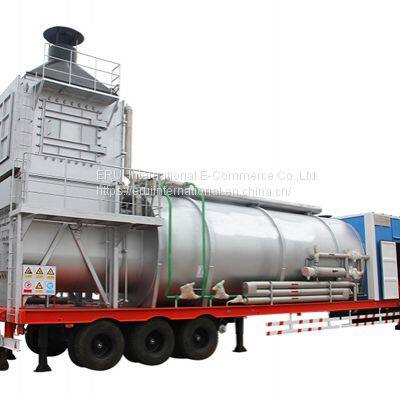

Trailer Mounted Movable Oilfield Steam Injection Boiler for Petroleum Industry

FOB Price

US$ 1300000 - 1300000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C
Delivery Detail60 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ERUI	Place of Origin	China
Type	Natural Circulation	After-sales Service Provided	Overseas service center available
Condition	New	Style	Vertical
Fuel	Gas-fired	Usage	Industrial
Output	Steam	Structure	Water Tube
Pressure	High Pressure

Product Description

Basic information of OTSG

Oilfield steam injection boiler, also known as wet steam generator, is a special steam injection equipment for heavy oil exploitation in oilfields. It uses the heat generated by the combustion of gas or oil to heat water and vaporizes it, so that high temperature and high-pressure wet steam is injected into the oil well, and the crude oil in the oil layer is heated to reduce the viscosity of the heavy oil, thereby increasing the fluidity of the heavy oil, which can greatly improve the recovery of heavy oil.

Key Feature
1. High dryness (above 85%).
2. High Thermal efficiency (above 90%).
3. Anti-scale.
4. Remote monitoring & Unattended.
5. Energy saving & Environmental protection.
6. Sewage water treatment & Reinjection.

Specifications

Rated Evaporation Capacity (t/h)

Working Pressure

(Mpa)

Steam Temperature

(oC)

Steam

Dryness

(%)

Heat Efficiency

(%)

Combustion

Method

Transportation

Mode

Sub Critical

5-50

17.2

342-370

≥90

Crude Oil

Diesel

Gas

Trailer or

Skid mounted

Super Critical

6.5-40

≤26

390

100

≥90

Crude Oil

Diesel

Gas

Trailer or

Skid mounted

ERUI International E-commerce Co., Ltd. supplies oilfield thermal oil boilers conforming to the national manufacturing criteria for pressure vessels (I, II, and III). Since 2006, the company has accumulated over 15 years of experience in supplying equipment in the oil and gas industry. These oilfield thermal oil boilers are ASME compliant. The oilfield steam thermal oil boilers are 3 main sections: convention, transition, and radiation sections. Our boilers can provide a high dryness (above 85%) steam and a thermal efficiency above 90%. ERUI International steam oil thermal boilers have both anti-scale and remote monitoring when unattended functions. Moreover, these boilers have energy-saving and environmental protection features alongside sewage water treatment and reinjection. These explain why our thermal oil boilers have dominated Shengli Oilfield. We export the boilers abroad to countries like Canada, the United States, Russia, Venezuela, and other countries, which are praised for their exemplary performance by end-users.

Our services

In order to broaden the market and provide better on-site service and technical support to our customers, we have established 57 branch offices all over the world and are trusted by customers.
