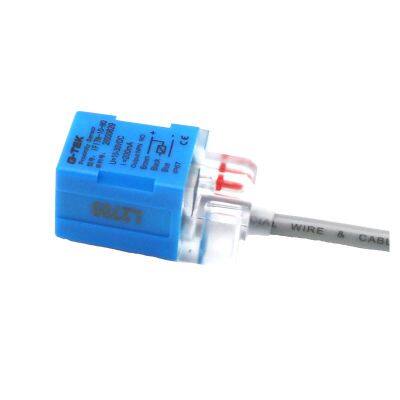

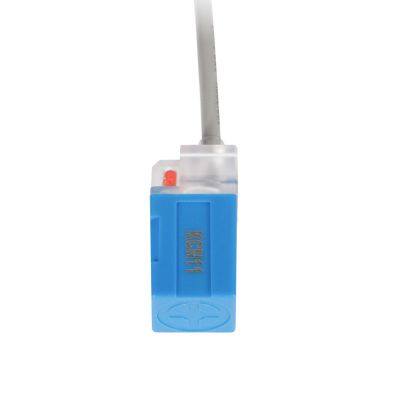

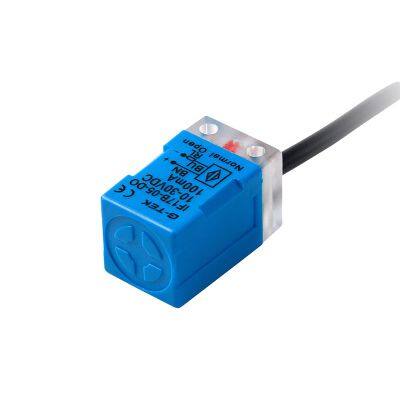

IP67 Capacitive Plastic Square Proximity Inductive Sensor for Metal Detectors
- 100000 Set / Sets per Month
- tianjin
- T/T PayPal
- 14 days
You May Like
-
Capacitive Inductive Proximity Metal Sensor for Turnstile Access Control
-
If17 Square Smart Inductive Proximity Switch for Car Barrier Gate
-
NPN Plastic IP67 Inductive Smart Proximity Switch with CE Certificate
-
Square Proximity Sensor for Tripod Turnstile Gate with CE Certificate
-
IP67 Plastic PNP Metal Detector Inductive Smart Proximity Switch
-
Elevator Position Limit Inductive Plastic Metal Detection Proximity Sensor
Product Details
| Brand Name | G-TEK | Place of Origin | China | |
| Model Number | IF17 square proximity switch | Usage | Other, turnstiles | |
| Theory | Inductance Sensor | Output | Other, transistor output |
Product Description
Parameter | ||
Square Proximity Switch | IF17DC3-wires Standard housing | |
Standard detection object | 18mm×18mm×1mm (Fe360 carbon steel) | |
Detection distance | embedded | 5mm±10% |
Hysteresis | 5~20% | |
Set distance | embedded | 0-4mm |
Supply voltage | 10~30V DC | |
Un-load current | Max.20mA | |
Voltage drop | Max.1.7V | |
Switch frequency | 500Hz | |
Residual voltage | MAX.1.3VDC | |
Control output | Transistor output，open collector | |
Resistive load | Max.200mA | |
Indicator | Operation indicator:Red | |
Protection circuit | Short circuit 、 reverse polarity protection | |
Ambient temperature | －25℃~70℃ (No-freezing) | |
Storage temperature | －30℃~80℃ (No-freezing) | |
Humidity | 35~95%RH | |
Housing material | ABS | |
Shape and size | As dimension | |
Cable | Φ4, 3×0.2mm2 | |
Protection rating | IP67 (IEC) | |
Model | ||
Installment | Product Model | Output Mode |
Embedded type | IF17B-05-NO | NPN Normal open(NO) |
IF17B-05-NC | NPN Normal close(NC) | |
IF17B-05-PO | PNP Normal open(PO) | |
IF17B-05-PC | PNP Normal close(PC) | |
Exposed type | IF17N-10-NO | NPN Normal open(NO) |
