Reduced Wall Aluminum Flexible Conduit

Introduction

We have been engaged in flexible conduit since 1999.Our company credit level is AAA. All of our products have UL license. We hope to co-operate with more customers around the world. We hope and believe our co-operation will develop bright future for both. We are manufacturers of Aluminum/Steel Flexible Conduit for cable or wire. We also support customer made products.

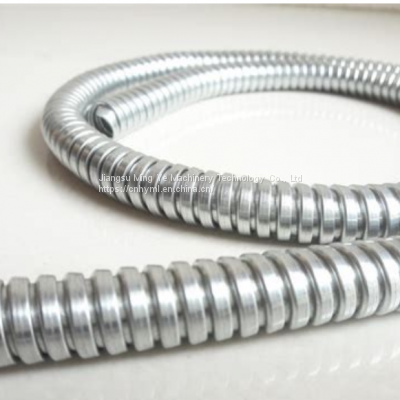

UL listed in sizes 1/2” to 4”.  It is manufactured with a lightweight , high strength aluminum alloy. Metal strip is helically formed into continuously interlocked flexible metal conduit that can withstand impact and crushing forces.

Product features:

?    Structure: Square-lock  Provides mechanical protection for conductors and cable

?    For use with listed connectors intended for NEC Type FMC (flexible metal conduit)

?    Material：high strength aluminum alloy , 66% lighter than Steel

?    Cut 80% faster than steel

?    Smooth interior for easy wire pulling

?    Superior corrosion resistance

?    Built in flexibility for simplified positioning

?    Temperature range: -50℃～+200℃

?    IP Class:  IP 40

?    Flexibility: High

?    RoHS: YES

?    Certificate: UL listed : 1/2” ～ 4”

Applications:

?    Environmental air-handling spaces per NEC 300.22(c)

?    Power and lighting branch circuit conductors and cables for connecting receptacles, luminaires, equipment, office partitions etc.

?    Metal raceway for wires and cables per NEC (ANSI/NFPA-70) Article 348

?    Motor feeder, branch, and control circuit conductors and cables

?    Class 1, Class 2, Class 3 Remote control ,signaling, and power-limited circuit conductors and cables

?    Listed wired fixtures per NEC410.77(c)

?    Voice, data, communications and video cables including CATV and optical fiber cables
