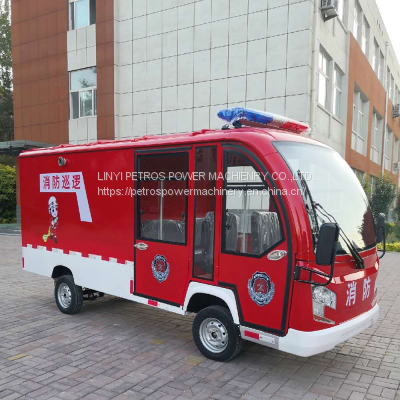

Electric fire engine double row, five seats fire truck

technical parameter

Dimensions: length × width × height

4600*1450*2100Mm

Rated carrying capacity

5 people

Maximum speed (full load)

30km/h

Minimum turning radius

6m

Maximum gradient (full load)

20%

braking distance

≤5m

Range (empty)

About 80 km

wheelbase

2005mm

Minimum ground clearance

230mm

Track width

1200mm

Vehicle servicing mass

1200kg

Rated load

1000kg

Electrical system

Battery

12v100a * 6 maintenance free batteries

battery charger

The charging time of on-board intelligent charger is 8-10 hours

controller

Inbor AC controller

electric machinery

72v4kw AC motor

power steering

Power train

Infinitely variable speed system

steering system

Double output direction power is used to automatically adjust the clearance, matching perfect trapezoidal structure, steering without dead angle.

Front axle and suspension

Independent suspension

Rear axle and suspension

Integral rear axle + high strength leaf spring + bucket type hydraulic shock absorber

braking system

Hydraulic brake, double circuit hydraulic brake and parking brake device

tyre

Vacuum radial tire 155 / 70r-12

Interior

chair

Advanced simulation leather seat

meter

Instrument display (including voltage, current, speed, mileage, light, front and rear reversing signals)

switch

Start switch, light and wiper combination switch, forward and backward gear switch, multi-function radio with USB interface

Fire pump

engine type

Four stroke, horizontal bar, air cooled gasoline engine

lift

20-35m

Start mode

Electric start / manual start

Maximum flow

50T/h

Diversion mode

Water diversion by vacuum pump and self suction during discharge

maximum power

13HP

Inlet diameter

65mm

Maximum suction depth

7m

Outlet diameter

65mm

Tank capacity

4L

Fire water tank

Thickened water tank (800L)

Fire fighting equipment

Fire extinguisher *4, fire hose *2, water gun *1, emergency tools *5 (fire wrench, fire shovel, fire ax, fire rope, fire bucket, etc.)
