Home > Products > G80 LIFTING CHAINS > Industrial 16mm Black Welded G80 Lifting Steel Chain
Industrial 16mm Black Welded G80 Lifting Steel Chain
US$ 3 - 110
/ Meter
50 Meters(Min. Order)
- SHANGHAI
- T/T Other
- 5 days
You May Like
Product Details
| Brand Name | QICHEN | Place of Origin | China | |
| Model Number | G80 | Material | Alloy | |
| Function | Transmission Chain | Standard or Nonstandard | Standard | |
| Structure | Welded Chain |
Product Description
Supply :
1.Name: EN818-2 LIFTING CHAINS
2.Material :high-quality alloy steel
3.surface treatment :self-color ,polishing ,black,plastic coating ,hot -dip galvanized .
4.manufacture standard :ISO ,DIN ,BS,JIS,ASTM
5.Quality Grade : G60 G80, G100
6.Delivery Within 10-25 days

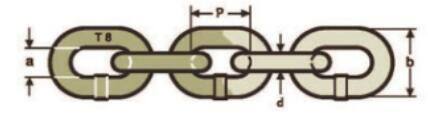

| NoMinal size | WLL/T | B.L/T | D(mm) | t(fnm) | b1(mm) min | b2(mm) (max) |
| 6MM | 1.12 | 4.48 | 6 ±0.24 | 18 ±05 | 7.8 | 22.2 |
| 7MM | 1.5 | 6 | 7 ±0.28 | 21 ±06 | 9.1 | 25.9 |
| 8MM | 2 | 8 | 8 ±0.32 | 24 ±0.7 | 10.4 | 29.6 |
| 10MM | 3.15 | 12.6 | 10 ±0.4 | 30±03 | 13 | 37 |
| 13MM | 5.3 | 21.2 | 13 ±0.52 | 39±1.4 | 16.9 | 48.1 |
| 16MM | 8 | 32 | 16 ±0.64 | 48±1.4 | 20.8 | 59.2 |
| 18MM | 10 | 40 | 18 ±0.90 | 54 ±1.6 | 23.4 | 66.6 |
| 20MM | 12.5 | 50 | 20±1.00 | 60 ±1.8 | 26 | 74 |
| 22MM | 15 | 60 | 22±1.10 | 66±20 | 28.6 | 81.4 |
| 26MM | 21.2 | 84.8 | 26±1.30 | 78±23 | 33.8 | 96.2 |
| 32MM | 31.5 | 126 | 32±1.60 | 96±29 | 41.6 | 118 |
