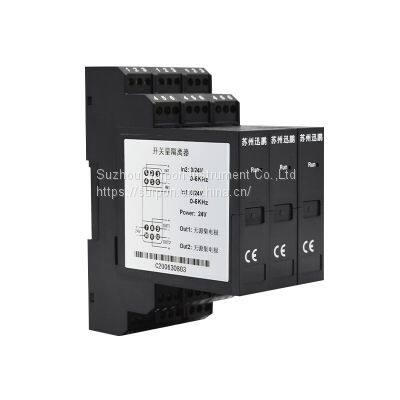

XP Series ON-OFF signal isolator

XP Series ON-OFF signal isolator (one input one output, one input two outputs, two inputs two outputs) receives ON-OFF signal from the industrial field, such as proximity switch, dry contact, voltage pulse , then converts into ON-OFF signal by order to output with isolation. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.

Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

XP Series ON-OFF signal isolator code table：

Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: one channel dry contact, output: one channel relay singal, power supply: 24VDC

           order model: XP-F1-1

Example 2  input: one channel collector with 24VDC signal , output: two channels collector with 24VDC signal ,

power supply: 24VDC

           order model: XP-F2-4-4
