Horizontal Double Shaft Mixer
- Qingdao
- T/T L/C PayPal Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | 350 | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 years | |
| Dimension(L*W*H) | 4200×1600×650mm | Condition | New | |
| Product Type | Other, coal powder | Voltage | 380V 50HZ or Customized | |
| Application | Powder | Power(W) | 11-15kw | |
| Max. Loading Capacity | 7-10t/h | Additional Capabilities | Other, crushing | |
| Mixer Type | Planetary Mixer |
Product Description
Horizontal Double Shaft Mixer
Horizontal Double Shaft Mixer Introduction:
Horizontal Double Shaft Mixer is used for mixing materials continuously & uniformly. During mixing the materials can be uniformly mixed with binder, after mixer; the blended materials can be continuously sent to the conveyor, transmit to the next equipment. Clay Double Shaft Mixer is used for coal, coal slurry, fly ash, sludge, mineral powder, clay, oxidation iron, coal slurry, sludge, clay, fly ash etc. With the good effect on mixing & blending.
Horizontal Double Shaft Mixer Working Principle:

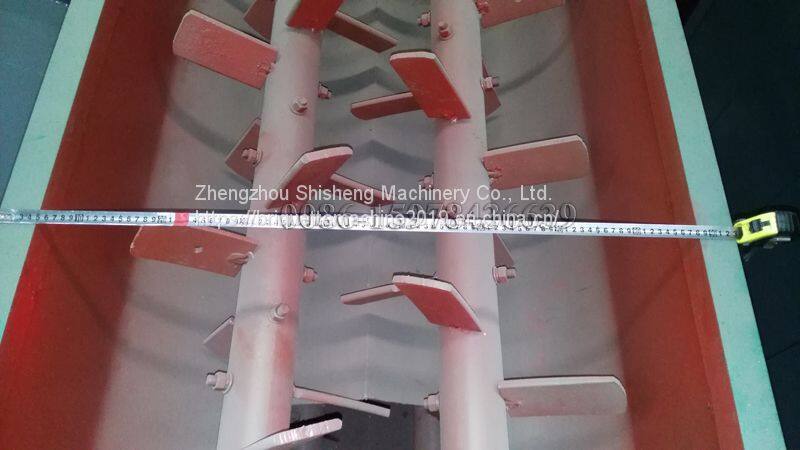

Horizontal Double Shaft Mixer has high mixing speed and good uniformity; it can be added into sticky material which contains 30% liquid. When working, the two paddle rotors which do counter rotating are mixing in the middle. As to the paddle has many special angles, no matter the materials' shape, size, and density, the materials is mixed quickly and effectively.
Horizontal Double Shaft Mixer Technical Parameter:
| Model | Capacity(t/h) | Chute Length(mm) | Propeller Diameter(mm) | Motor Power(kw) | Stirring Type | Spraying Type |
| 350 | 7-10 | 3-4 | 350 | 11-15 | Double Shaft Propeller Stirring | Straight+Spraying Nozzole |
| 450 | 10-18 | 3-4 | 450 | 15-22 | ||
| 550 | 15-25 | 3-5 | 550 | 22-37 | ||
| 650 | 22-32 | 3-5 | 650 | 37-45 | ||
| Remarks | Capacity will be different based on various material specific gravity | |||||
