Home > Products > Peristaltic Pump > Industrial Polishing Liquid And Additive Transfer Peristaltic Pump

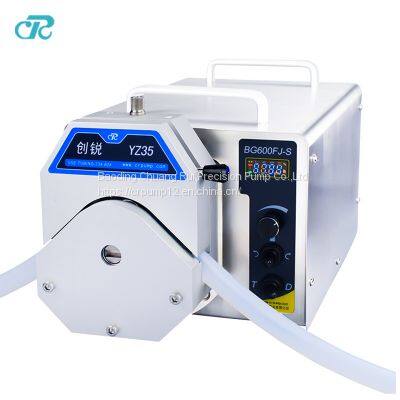

Industrial Polishing Liquid And Additive Transfer Peristaltic Pump

FOB Price

USD $880 - $1000 / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Tianjin/Shanghai
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CR	Place of Origin	China
Model Number	BG600FJ-S	Application	Other, BG600FJ-S
Fuel	Gasoline	Power	Electric
Usage	Water	Theory	Electromagnetic Pump
Standard or Nonstandard	Standard	Structure	Other, Peristaltic Pump
Pressure	Low Pressure

Product Description

Quick Details

Warranty:
1 year, 1 year

Customized support:
OEM, ODM

Brand Name:
CR

Model Number:
BG600FJ-S/YZ35

Place of Origin:
Hebei, China

Application:
Transfer Peristaltic Pump

Horsepower:
Other

Power Source:
Electric

Pressure:
Low Pressure

Structure:
peristaltic pump

Cable Length:
other

Outlet Size:
Max 13mm

Voltage:
AC220V or AC110V

Power:
<500W

Certification:
ce, ISO9001

Model:
BG600FJ-S

Pump head:
YZ35

Speed range:
0.1-600 rpm

Flow range:
1.3-12000 ml/min

speed resolution:
0.1 rpm

Display:
4-led

Operating:
Knob

MOQ:
1set

Packaging & Delivery

Selling Units:
Single item

Single package size:
62X37X37 cm

Single gross weight:
21.000 kg

Package Type:

After the pump body is wrapped in a plastic bag, the pump is packed in a custom special hard foam and placed in a carton that meets the export standards. After the other accessories have been properly placed, they are packed with tape, and the plastic film is wrapped around the whole box to prevent water ingress.

Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

Product Description

industry peristaltic pump

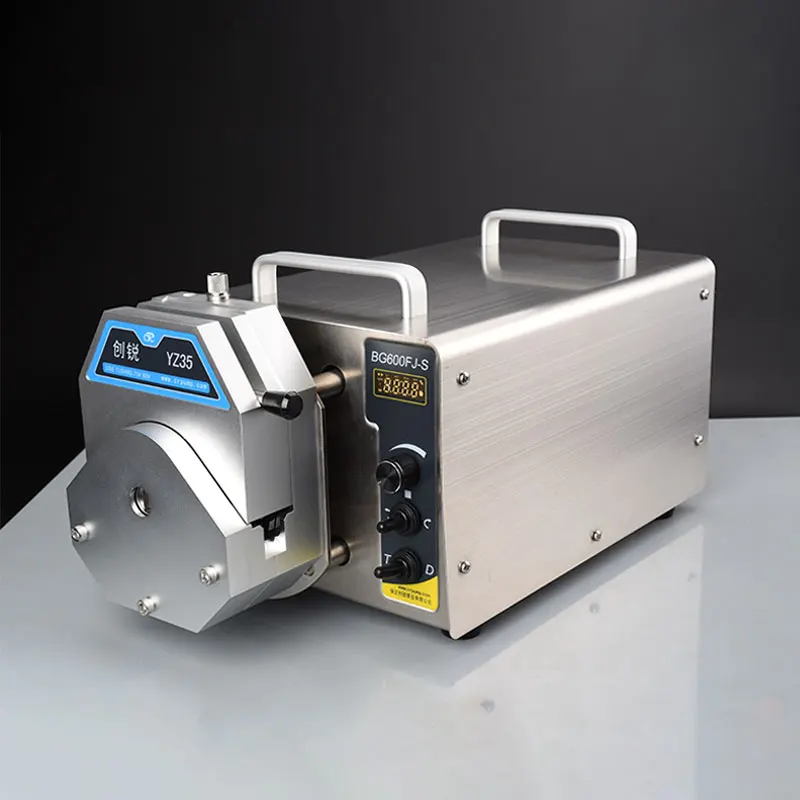

CR peristaltic pump BG600FJ-S with 2 work mode . one is for liquid constant transfer ,another is for bottle filling . that can run
with  YZ35 pump head , with flow rate from 1.3-12000 ml/min. Flow speeds can be adjusted either by hand through switching
knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control
through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available
in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.

Model	BG600FJ-S/YZ35-13	Display Mode	4-LED
Speed Range	0.1-600 rpm	Control Method	Rotary encoded knob
speed resolution	0.1 rpm	Environment Temperature	0-40℃
Max Flow	12000ml/min	Relatively Humidity	<80%
Filling Accuracy	<±0.5%	Power consumption	<400w
Filling time range	0.1-9999min	Power supply	AC220V or AC110V
Pause Time range	0.1s~9999min	Motor Type	Stepper motor
copy number range	0~9999t	External control Start & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Suckback angle	10°~720° (1° Stepping)
Suchback speed	10-300 rpm

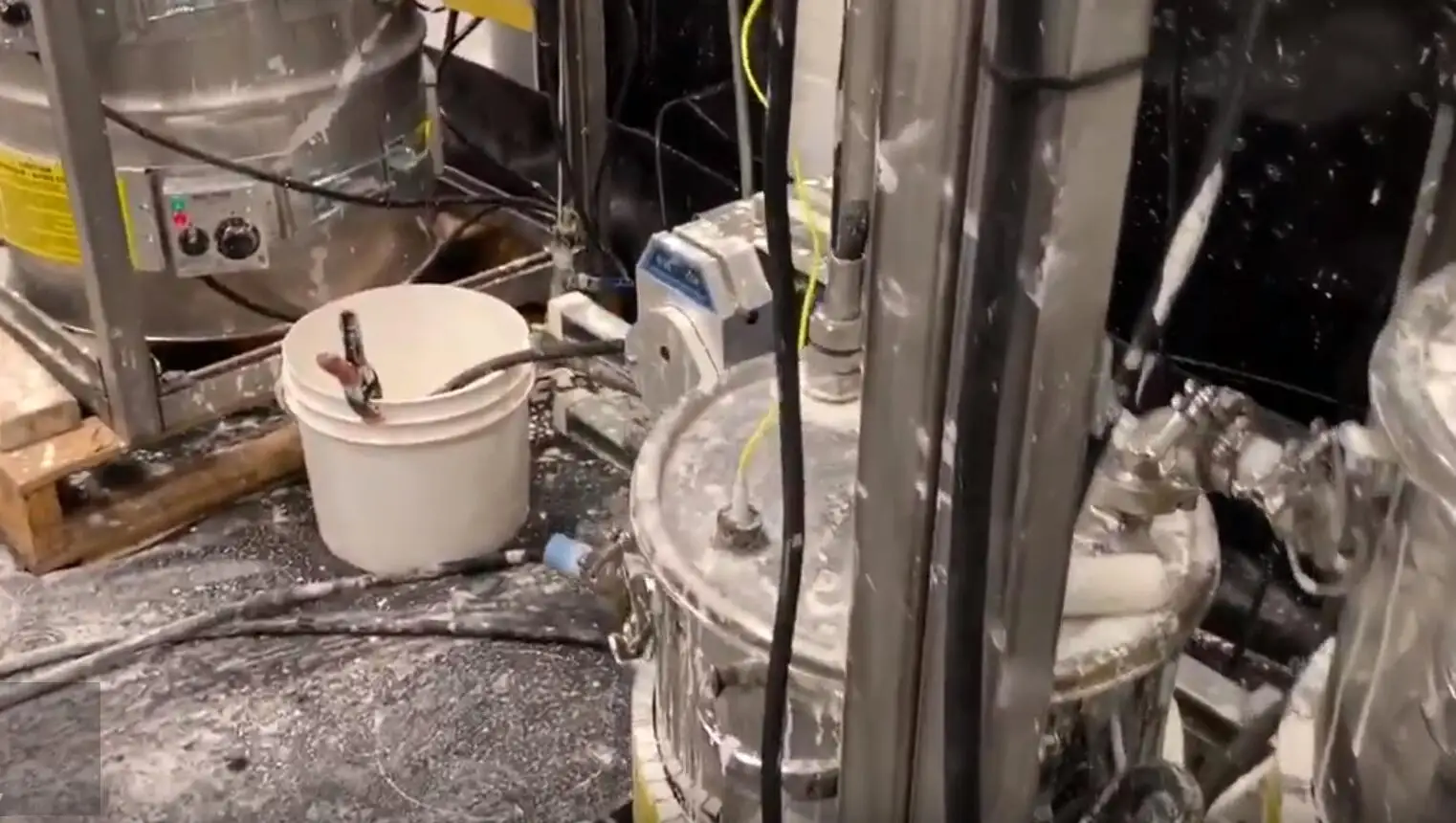

Application 1

Industry : Hard material processingModel : BG600FJ-S/YZ35
Liquid : Grinding fluid
Function : constant transfer
Tube : Norprene Chemical tube 82#
External control : start/stop
