1U Rack H.264 SDI Video Streaming SRT HTTP RTMPs Facebook Live IPTV HD Encoder

Overview:

OTV-RS11 H.264 IPTV Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. OTV-RS11 IPTV Streaming Encoder accepts 1* SDI input, then output 4 channels TS over IP in H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.

OTV-RS11 H.264 Streaming IPTV SDI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.

Not only 1-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Key Features:

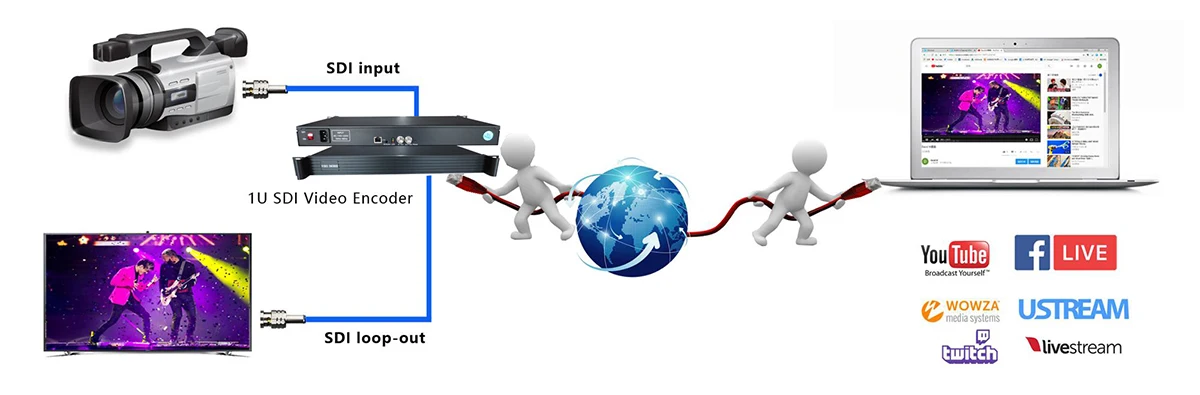

• Video Input: 1-Channel SDI With 1-Channel SDI Loopout

• Support up to 720P, 1080P HD video input

• Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression

• Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s

• Support streaming resolution settings

• GOP frame rate settings supported

• Capable of image parameter settings

• Insertable of logo and Scroll Caption; Adjustable of audio gain;

• Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications

• Support up to 4*TS over IP stream out.

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-rate, Multi-resolution, Multi-protocol

• Providing SRT/HLS/RTSP/HTTP/UDP or RTMP protocol

• Support HDCP protocol, ONVIF Network Video Protocol

• Support multiple equipments display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

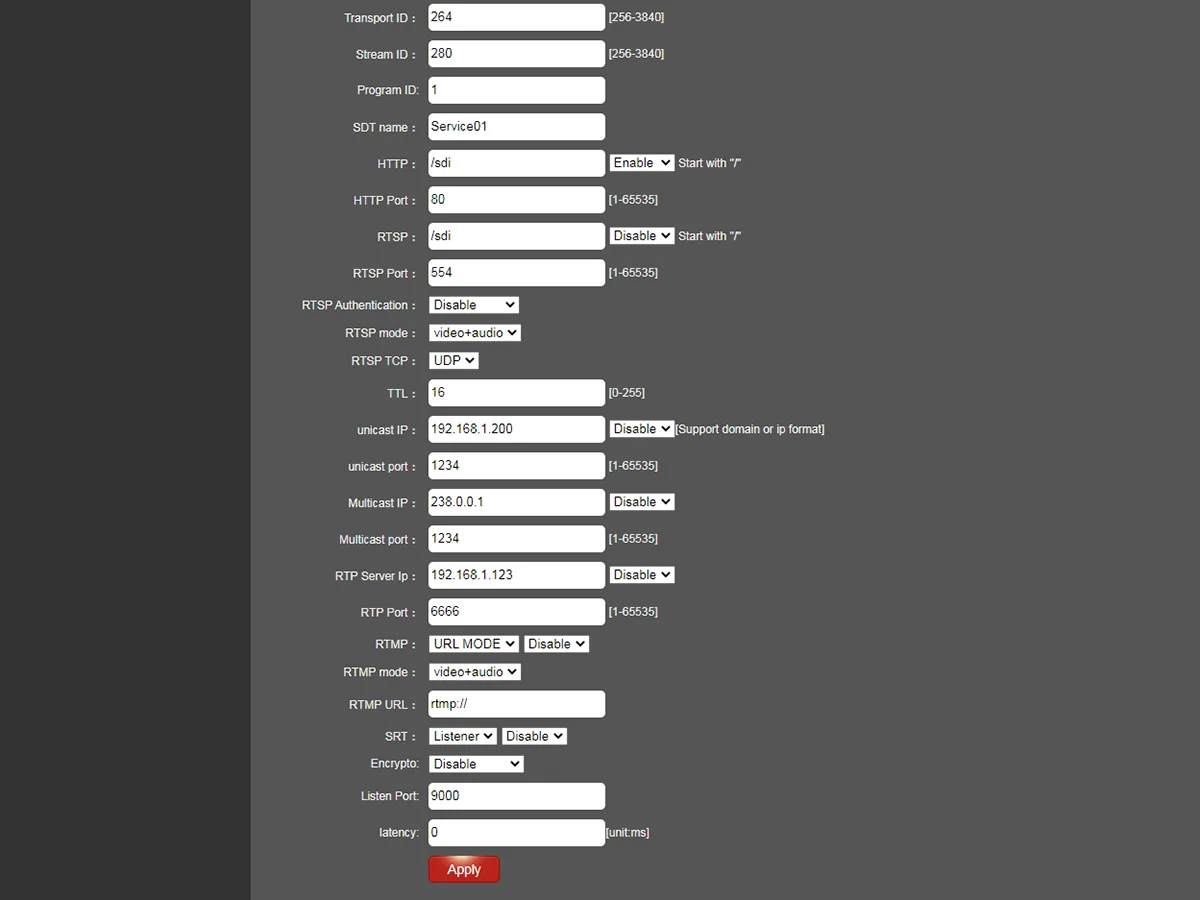

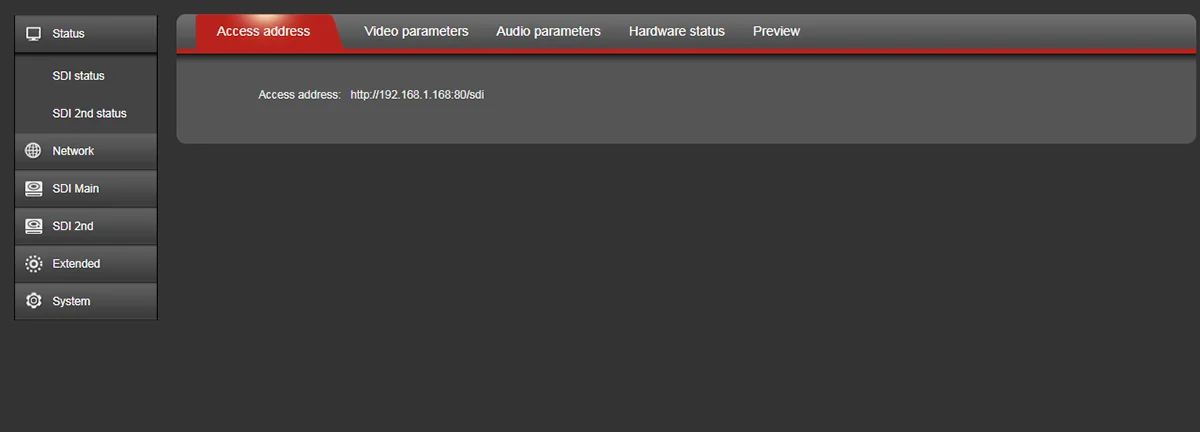

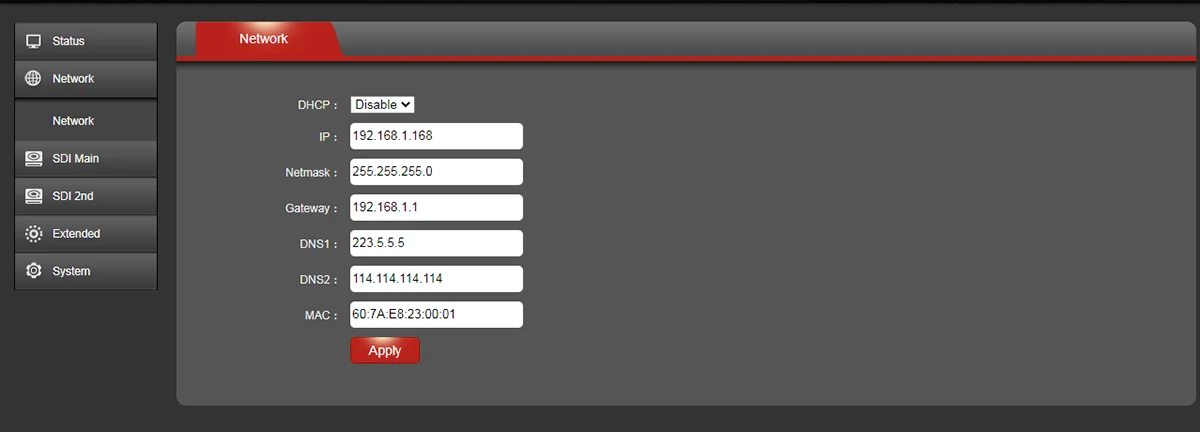

• Web-based management

• Full-duplex mode 1000MNetwork interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Digital Signage Project

Video Monitoring, multimedia project
