Galvanized Pipe Welding High-Frequency Straight Seam Welded Pipe ERW Tube Mill
- Tianjin
 - T/T L/C
 - 120 days

You May Like
Product Details
| Brand Name | ZTZG | Place of Origin | China | |
| Model Number | +8615566676628 | Certification | ISO9001 | |
| Type | Pipe Mill | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Weight | 50t | |
| Dimension(L*W*H) | 100*10*5m | Production Capacity | Shijiazhuang | |
| Condition | New | Voltage | Customer local | |
| Application | Energy Supply Pipe | Power(W) | 1000kw | |
| Pipe Material | Carbon Steel |
Product Description
Product Introduction

A High-frequency welded pipe is also called a high-frequency straight seam welded pipe unit. It is suitable for hot rolling or cold rolling with the rigid coil (GB700-88 or GB1591-88) of plain carbon steel, such as Q195Q23516MN. Production line process: raw material (strip coil) -- feeding -- shear butt-welding (manual welding) -- storage bin -- feeding molding -- high-frequency welding -- external burr removal -- cooling water jacket -- sizing and straightening -- flying saw cutting -- blanking (manual stacking and wrapping) -- inspection -- storage

Why Us
High quality:
Optimized design, high-quality material selection, and strict heat-treatment process. The high precision, wear resistance and long service life of the roller are guaranteed
Precision assembly:
The CNC milling surface of the host pedestal, the milling base keyway, and the NC positioning bolt hole can realize the rapid positioning and installation of NC machining parts
Roll quick change:
Patented design, help you change the roll in half an hour
Smooth transmission:
The spiral bevel gear, drum-type coupling, tooth surface carburizing quenching treatment. Stable and efficient transmission, strong bearing capacity, wear resistance, low noise
| Raw Material | Coil Material | Upto X80 | ||
| Width | 25~2200mm | |||
| Thickness | 0.5~20.0mm | |||
| Coil ID | φ450-φ520mm | |||
| Coil OD | Max φ1200mm | |||
| Coil Weight | 1.0~3.0Tons | |||
| Production Capacity | Round Pipe | 6~720mm | ||
| Square & Rectangular Pipe | 6*6~600*600mm | |||
| Wall Thickness | 0.5~20.0mmmm (Round Pipe) | |||
| 0.5~20.0 mm(Square Pipe) | ||||
| Speed | Max. 100m/min | |||
| Pipe Length | 6~12m | |||
| Workshop Condition | Dynamic Power | 380V, 3-phase, | ||
| 50Hz (depends on local facilities) | ||||
| Control Power | 220V, single-phase, 50 Hz | |||
| Size of the whole line | 65m X 6m (L*W) | |||



Application

Mainly used in the production of round pipe, oval pipe, and rectangular pipe.
Applications of pipe: Construction, Automotive, General Mechanical Piping, Furniture, Agricultural, Chemical, Petroleum, Gas, Pipeline, Structure, Scaffold. In the field of furniture, construction, municipal facilities, and others.













Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.

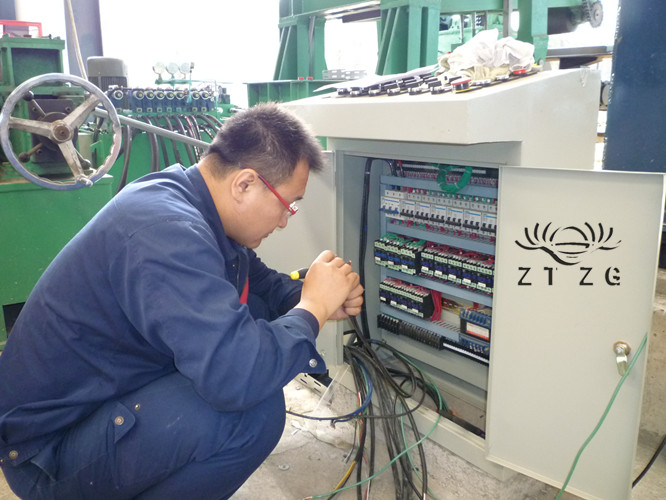

Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.

| Model List | ||||
| Model | Round pipe | Square pipe | Thickness | Working spead |
| mm | mm | mm | m/min | |
| ERW20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 | 120 |
| ERW32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 | 120 |
| ERW50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 | 120 |
| ERW76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 | 120 |
| ERW89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 | 110 |
| ERW114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 | 65 |
| ERW140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 | 60 |
| ERW165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 | 50 |
| ERW219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 | 50 |
| ERW273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 | 45 |
| ERW325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 | 40 |
| ERW377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 | 35 |
| ERW406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 | 30 |
| ERW508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 | 25 |
| ERW660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 | 20 |
| ERW720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 | 20 |
