Product Description

Production Information

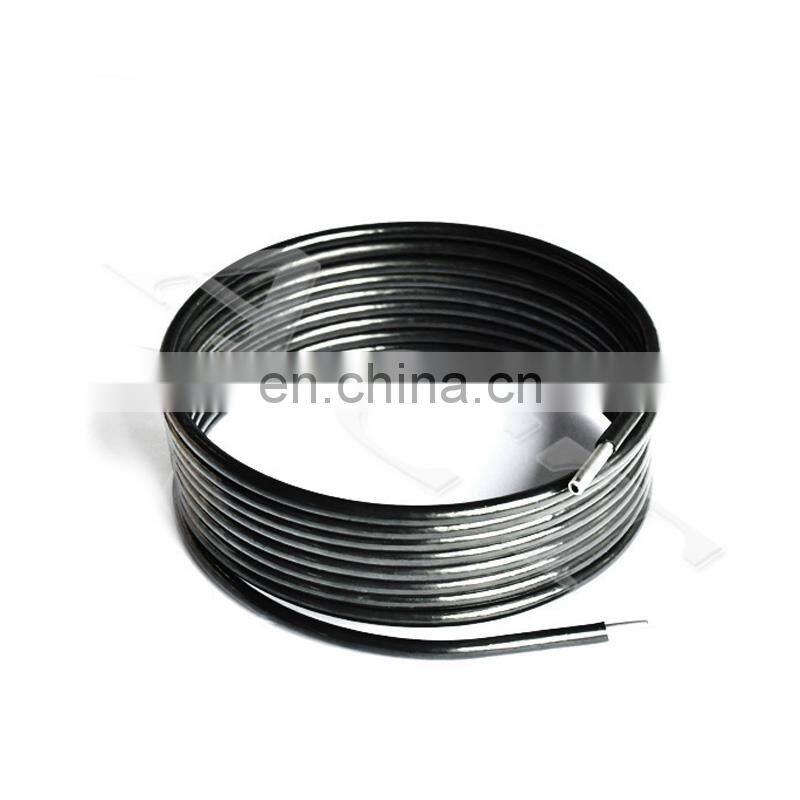

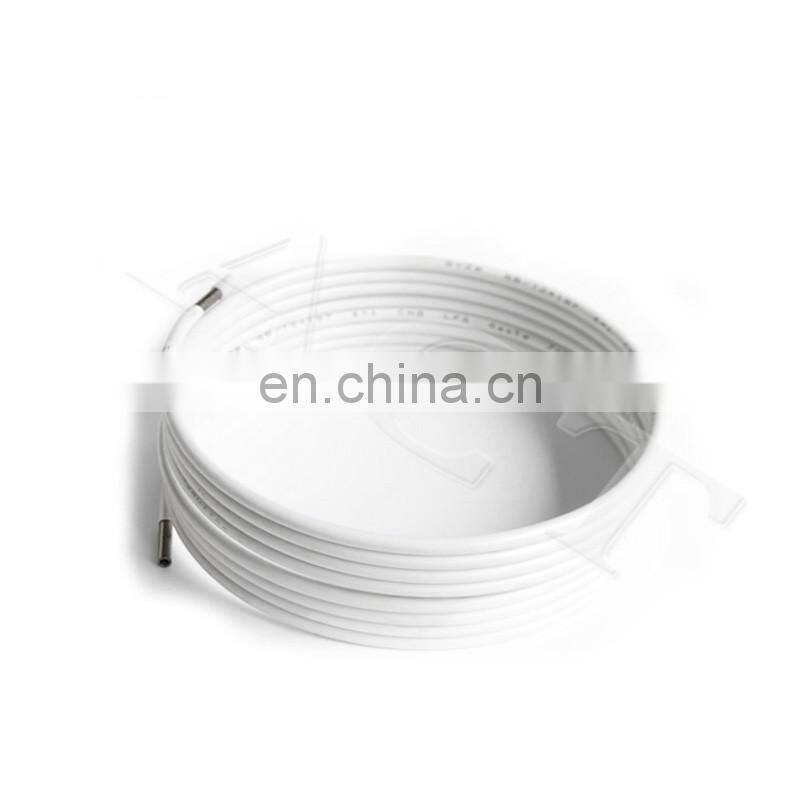

CNG/LPG high pressure pipes , is smooth and use single-wall low carbon steel tube . It may be zinc-coated for corrosion protection. Then wrap 360° PVC coating outside .
Each batch of high pressure pipe is carried out hydraulic test, flattening test, flaring test, intergranular corrosion test according to GB / T 14975-2002 standard.

Basic Information 1
1. standard and Material: ISO15500, BHG-1 or as the customers' requirement to choose the material
2. Treatment: Soft annealed, hot dipped galvanized; Air-tight test 30MPa
3. Product usage: CNG high pressure tube is used for LPG , CNG sequential injection system conversion kits.
4. Tube surface with 5-8 um zinc coated, which can keep 72-100 hour salt spray Test without red rust.
Basic Information 2
5. Tube surface with 5-8 um zinc coated, which can keep 72-100 hour salt spray Test without red rust.
6. Both ends of tube without rag, corner processing, smooth, absence of istortion.
7. Steel tube is welding tube with annealing treatment before zinc plating. Inside of tube should be no rust
9.Bending tube with tools of 25mm radius, bending torsion should no more than 11NM

Notice :
Steel tube should be covered with PVC after zinc plating, single wall thickness is 0.65±0.2mm.
There is 20-50mm naked tube without PVC at the roll ends. Both ends are fit with white plastic jacket.
Chemical Composition | Size tolerance(mm) | ||||
C: | ≤0.08% | Length: | Cut-to-length ±50 | ||
Si: | ≤0.03% | Steel tube wall: | 1±0.1 | ||
Mn: | ≤0.03% | OD: | ±0.06~0.1 | ||
P: | ≤0.02% | PVC tube wall: | 0.65±0.2 | ||
S: | ≤0.02% | Roll ID: | 195-200 | ||


ACT Emulator

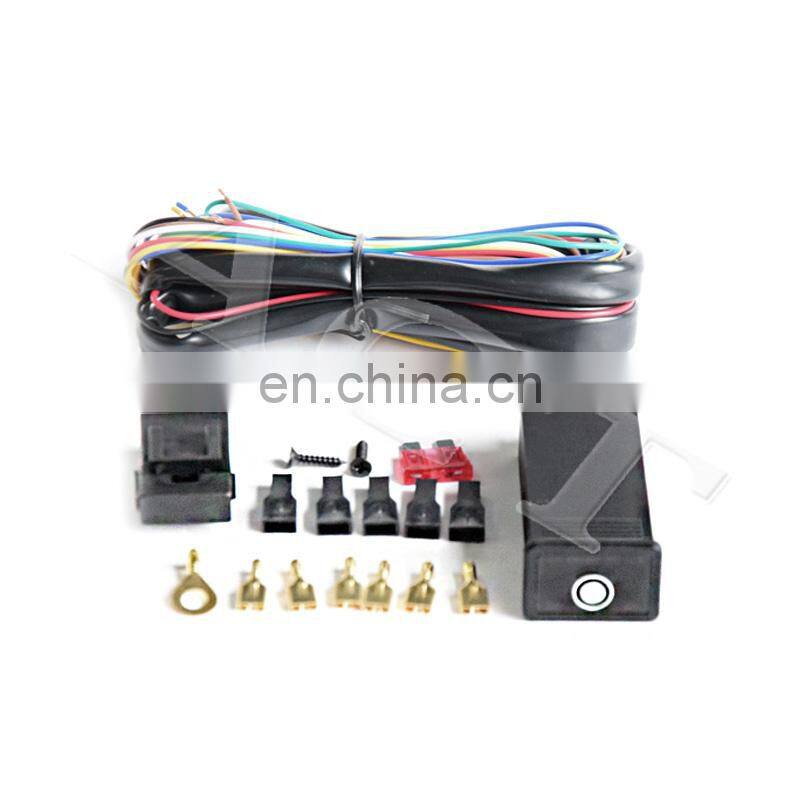

ACT-AS816 Switch

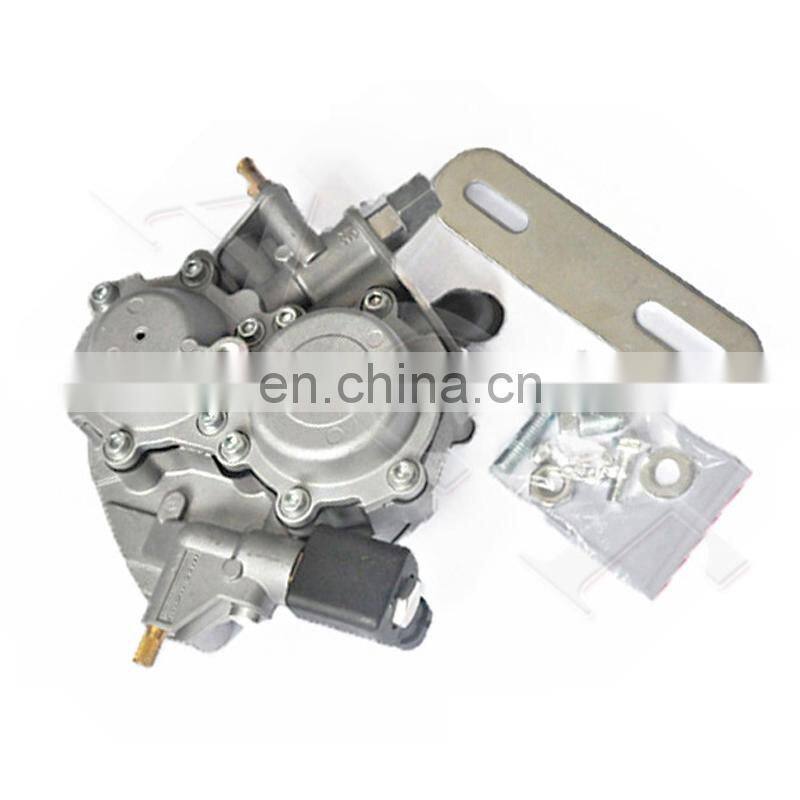

ACT-L CNG Reducer

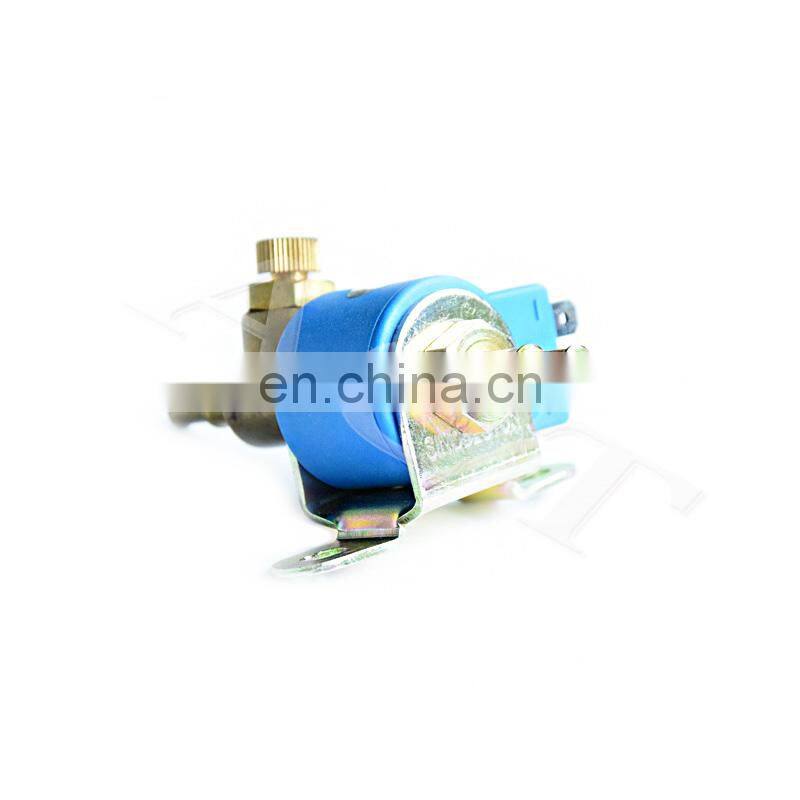

CNG Petrol Valve

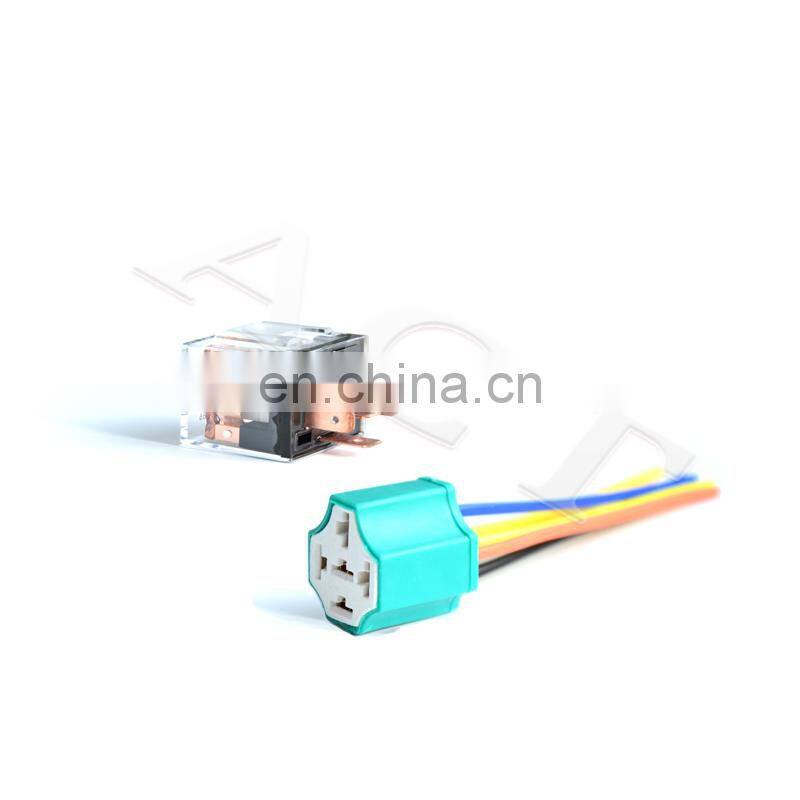

CNG Relay


CNG Single Point System | ||
1 | Reducer | |
2 | Emulator | |
3 | Filling valve | |
4 | High pressure tube | |
5 | Manometer | |
6 | Switch | |
7 | Mixer | |
8 | Other accessories part | |
