Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster

FOB Price

US$ 45 - 55 / Piece

10 Pieces(Min. Order)

Port shenzheng
Payment TermsT/T Credit Card PayPal Cash Other
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sigbari		Place of Origin	China
Model Number	SG-9/18/21-65-20

Product Description

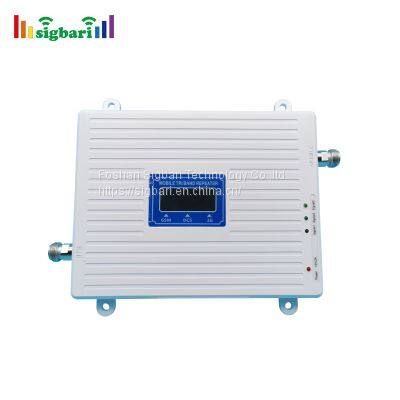

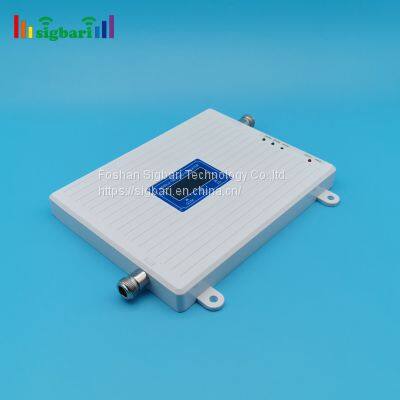

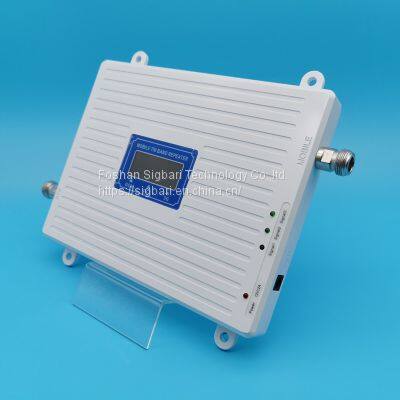

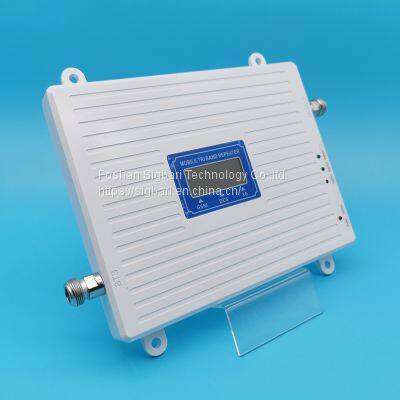

Sigbari Hot Selling tri-band repeater 2g 3g 4g 900 1800 2100MHz LCD display Booster

Our Mobile Signal Booster is a top of the line product that supports frequency bands (Band8&Band3&Band1 GSM 900MHz & DCS LTE 1800MHz & 3G 2100MHz). The adjustable controls all you to change your signal preferences for smoother voice and data transmissions. Experience improved signal strength regardless of your phone's present coverage strength or frequency band!

Our products are rigorously tested and offer a perfect 5-bar signal wherever you are. Our quick installation kit recommended easy for install with instructions and takes less than 15 minutes to set up. Our products are also completely harm-free.

Please do not hesitate to contact our staff of highly trained professionals available 24/7 should you experience any problems with your booster. Satisfaction guaranteed!

Technical Sheet
Coverage	Use	Band	Frequency	Number of simultaneous users	Up-link	Down-link
up to 300sqm	Home,	b8 & b3 & b1	900+1800+2100 MHz	100	890-915MHz	935-960MHz
	office room,				1710-1785MHz	1805-1880MHz
	bedroom, packing,				1920~1980MHz	2110~2170MHz
Voltage			Dimensions		Weight
AC 100~240V, output DC 12V/2A			23518020mm		1.1KG

FAQ
1. How do I determine the best place to set up my booster?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
2. Should I check the location of my network provider`s nearest tower?
Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.
3. How many users will one booster support?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
Coverage in square metres			Number of supported users
Up to 150 sq m			Up to 50 users
Up to 300 sq m			Up to 100 users
Up to 600 sq m			Up to 150 users
Up to 1500 sq m			Up to 200 users

Features:
1. Compact size with stable performance.
2. Support antenna isolation detection.
3. Designed for indoor application.
4. lcd display available for both uplink and downlink.
5. Low interference & Oscillation prevention.
6.Cost-effective for practical solutions.
7.Extend phone battery life.
s for gsm dcs umts lte 2g 3g 4g signals.

Specification

Specifications:
Items		Uplink	Downlink
Frequency Range	GSM 900mhz	890 ~ 915MHz	935 ~ 960MHz
	DCS & LTE 1800mhz	1710 ~ 1785MHz	1805 ~ 1880MHz
	WCDMA 2100mhz	1920 ~ 1980MHz	2110 ~ 2170MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		≥65dB	≥65dB
Output Power		≥20dBm	≥20dBm
Spurious Emission	9KHz~1GHz	<= -36dBm
	1GHz~12.75GHz	<= -30dBm
Noise Figure		≤ 6dB
VSWR		<=2.0
Group Delay		≤1μs
RF Connector		N-Female
Impedance		50Ω
Power Consumption		<=24W
Power Supply		Input: AC 110~240V; Output: DC 12V/2A
Operating Temperature		-10oC~50oC
Environment Conditions		IP30
Dimensions (D x W x H )		23518020mm
Weight		≤1.2KG

Kit accessories recommend:

1x repeater

1x indoor antenna

1x outdoor LPDA antenna

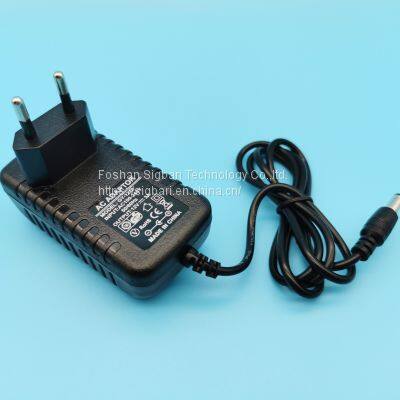

1x power adapter

1x 10 meters cable

1 x 5 meters cable

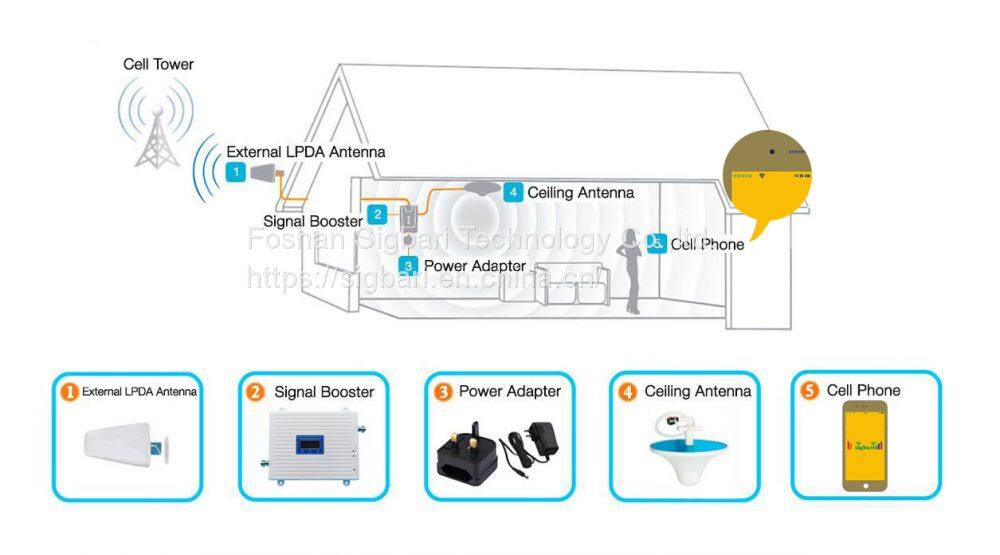

How it works?

Package

if any questions or problems please feel free to contact me, Send me email or chat with me directly for your requirements!

Thx for inquiring-Sigbari!
& you are welcome to visit us!
