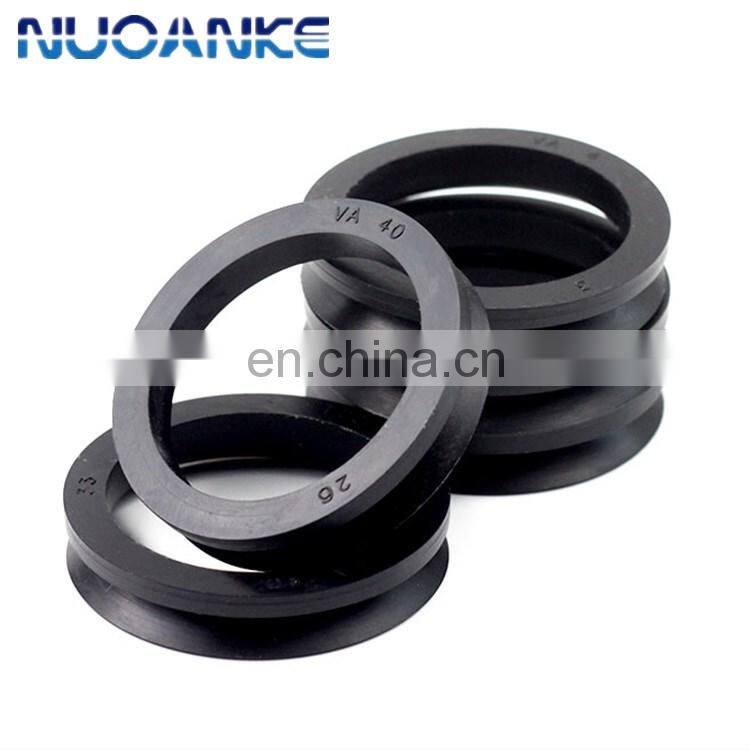

FKM/NBR End Face Rubber Dirt/Water Seal V Ring

Advantages:

1) Pure rubber elastomer material without metal parts

2) Reduced design work, no installation processing requirements

3) Elimination of shaft mating surface processing and surface accuracy, hardness requirements, the shaft surface does not have to be hardened

4) Easy and reliable installation and removal

5) The surface contact pressure is small, so the friction force is small, the friction loss and the friction heat are small, and the service life is long

6) Both sealed and dustproof

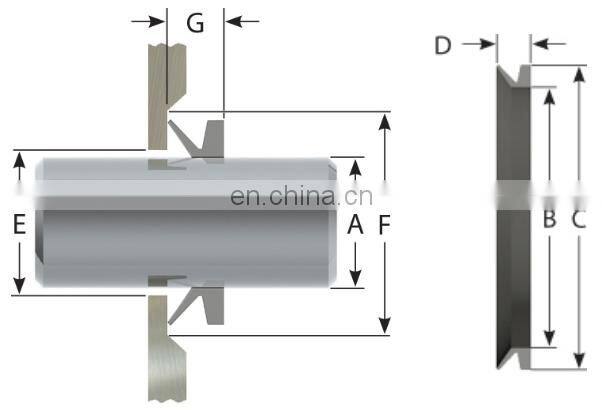

V-rings seal axially against a counter-face. This type of seal has proved to be reliable and effective against dust, dirt, water and oil splash and other media.
FKM/NBR End Face Rubber Dirt/Water Seal V Ring
V-ring shaft seals provide effective protection against dry and wet contamination. The V-ring also reduces wear and extends the service life of the oil seal and bearings. The V-ring also performs well in dry running applications. Because it is all rubber and very elastic, it can be stretched over flanges or other components for easy installation with very little dis-assembly.

FKM/NBR End Face Rubber Dirt/Water Seal V Ring

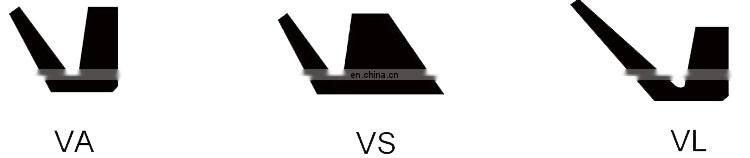

V-A
FKM/NBR End Face Rubber Dirt/Water Seal V Ring
Type A V-rings with bevel back serves as a pressure less, axial rod seal with a very short mounting length, which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction. Available in the widest range of sizes from .110″ (2.7mm) shaft to 79.530″ (2020mm) nitrile and fluoroelastomer. Ideal for protecting gearboxes, electric motors and drives.

FKM/NBR End Face Rubber Dirt/Water Seal V Ring
V-S
FKM/NBR End Face Rubber Dirt/Water Seal V Ring
Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

FKM/NBR End Face Rubber Dirt/Water Seal V Ring
V-L
FKM/NBR End Face Rubber Dirt/Water Seal V Ring
Type L V-rings with straight back serves as a pressure-less axial rod seal with a very small mounting length, which is clamped on the shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction.
