BTON 1.25g dual fiber 10km sfp

Ordering information

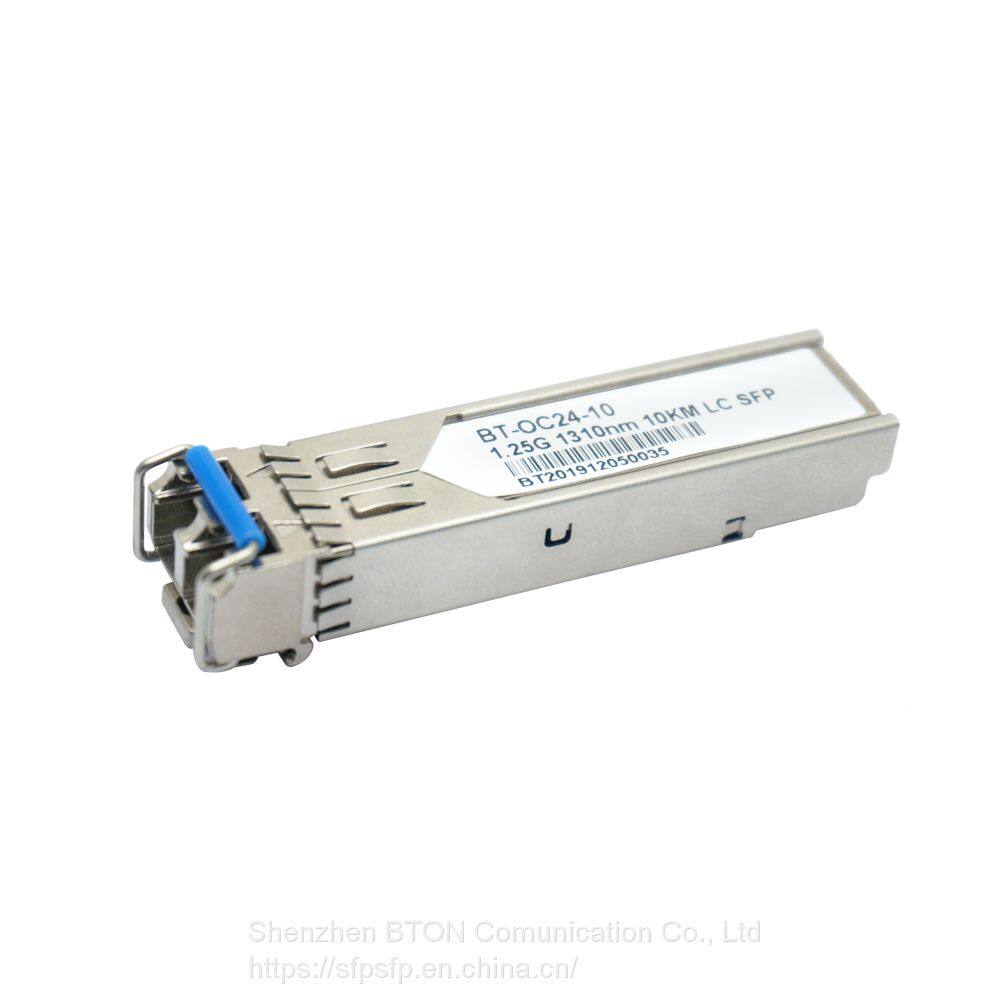

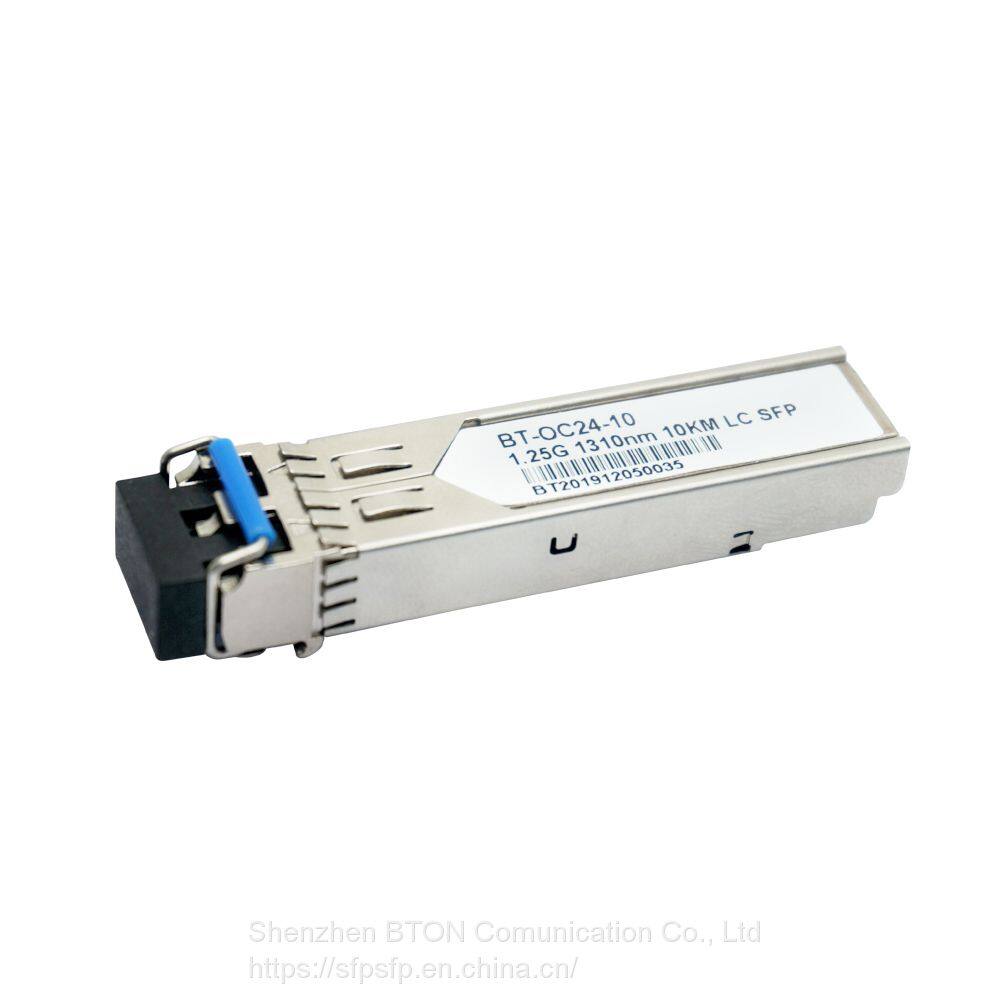

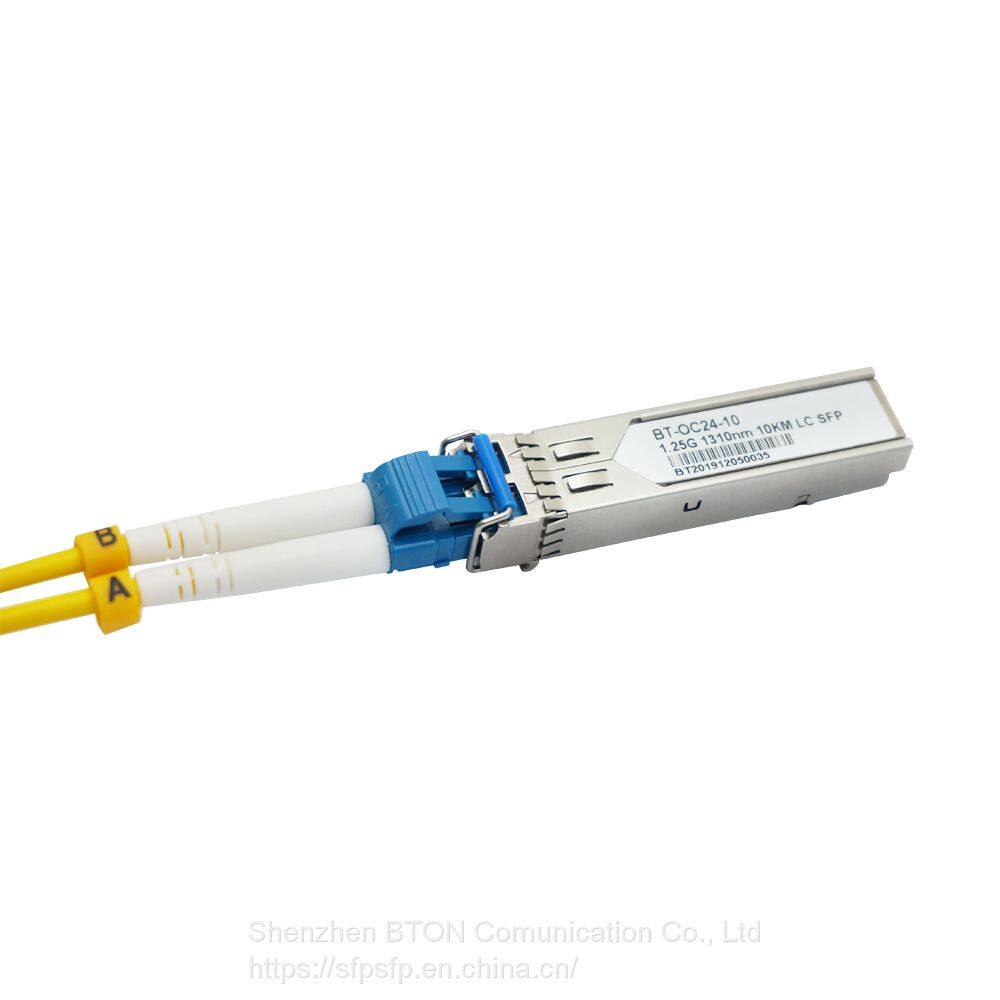

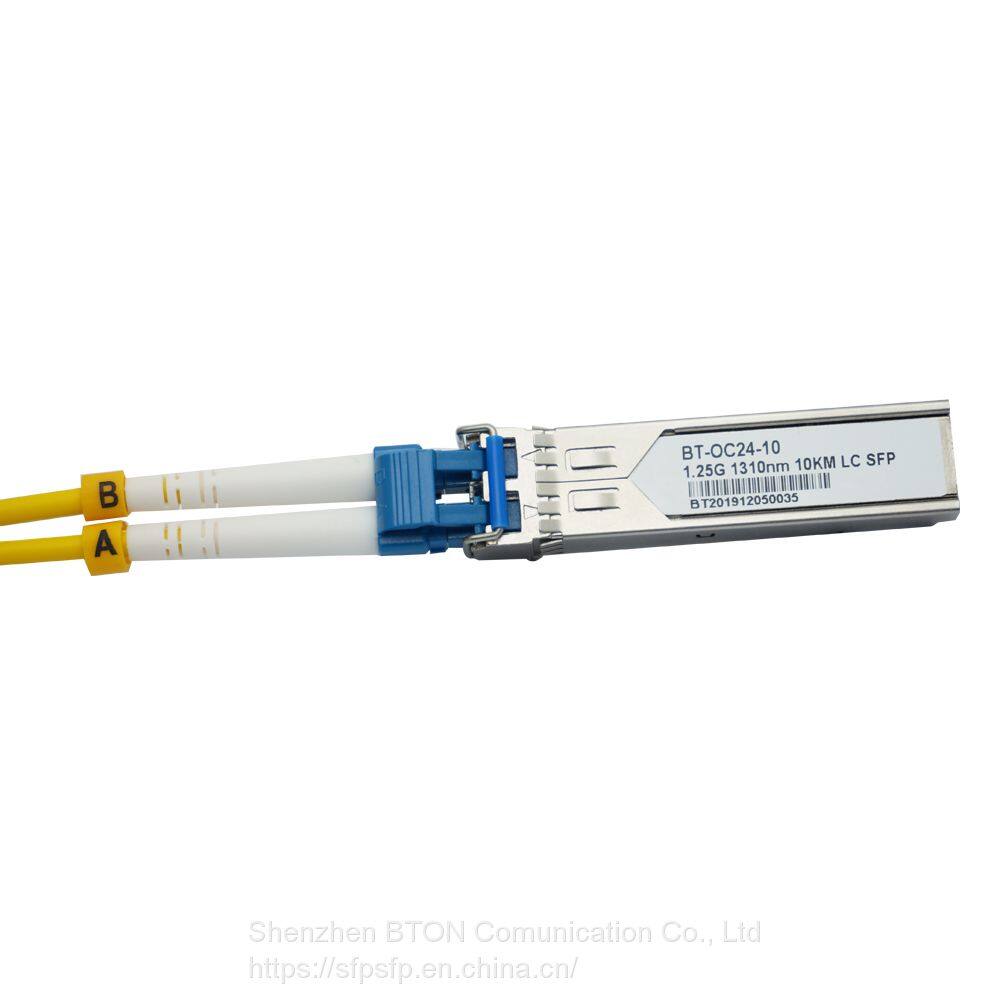

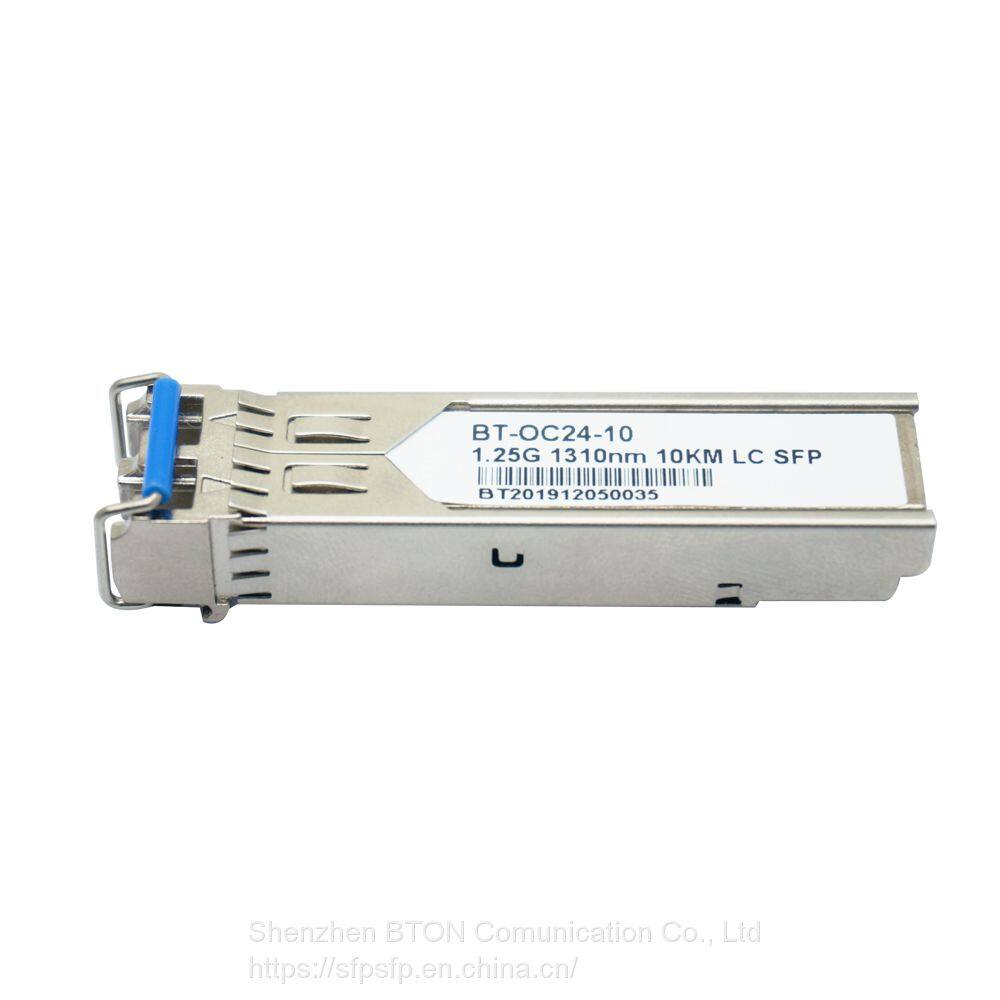

1.25Gbps 1310nm 10km SFP Transceiver

Features

> Dual data-rate of 1.25Gbps/1.063Gbps operation

> 1310nm FP laser and PIN photodetector for 20km transmission

> Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

> Digital Diagnostic Monitoring:

  Internal Calibration or External Calibration

> Compatible with SONET OC-24-LR-1

> Compatible with RoHS

> +3.3V single power supply

> Operating case temperature:

Standard :  0 to +70°C

Industrial : -40 to +85°C

Applications

> Gigabit Ethernet

> Fiber Channel

> Switch to Switch interface

> Switched backplane applications

> Router/Server interface

> Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA> and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA> and SFF-8472. For further information, please refer to SFP MSA.
