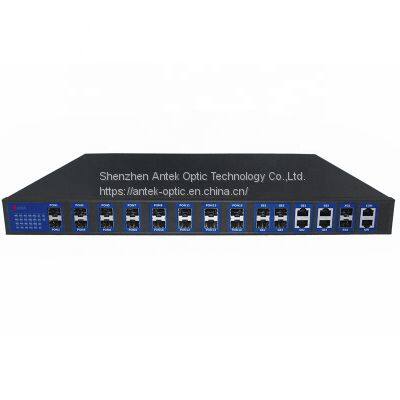

GPON 16Port OLT

Switching Capacity

108Gbps

Forwarding Capacity(Ipv4/Ipv6)

95Mpps

Service Port

16*PON, 4*GE COMBO ports, 2*10GE SFP+

Management Ports

1*CONSOLE PORT; 1*NMS PORT

Power Input

AC: 100V~ 240V AC 47/63Hz

PON Features

ITU-TG.984.x standard

Maximum 40km PON transmission distance access 128 terminals for single fiber PON

Uplink and downlink triple churning encrypted function with128Bits

ONU terminal legitimacy certification, report illegal ONU registration

DBA algorithm, the particle is 1Kbit/s

Standard OMCl management function

ONU batch software upgrade,fixed time upgrade, real time upgrade

PON port optical power detection

L2 Features

MAC

MAC Black Hole;

Port MAC Limit;

64K MAC (packet exchange chip cache 2MB );

VLAN

4K VLAN entries;

Port-based VLAN classification;

Uplink VLAN Swap and VLAN Remark;

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting;

Port

Support link aggregation;

Port mirroring;

Service-Port

Auto configuration service-port by profile

VLAN transparent/tag/stacking/aggregation

Security

Features

User’s Security

Anti-ARP-spoofing;

Anti-ARP-flooding;

Port Isolation;

MAC address binding to the port and MAC address filtering;

Device Security

Support the control layer to prevent a variety of DOS attacks and virus attacks   against the CPU;

SSHv2 Secure Shell;

Login Security IP via Telnet;

Hierarchical management and password protection of users;

Network Security

User-based MAC and ARP traffic examination;

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic;

Dynamic ARP table-based binding;

IP+VLAN+MAC+Port   binding;

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined   packet;

Port-based broadcast/multicast suppression and auto-shutdown risk port;

DHCP Option82 and PPPoE+ upload user’s physical location

Service   Features

ACL

Standard and extended ACL;

Time Range ACL;

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc;

packet filtration of L2～L7 deep to 80   bytes of IP packet head;

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow;

CAR(Committed Access Rate),Traffic Shaping and flow statistics;

Packet mirror and redirection of interface and self-defined flow;

Supports priority marking of ports or custom flows and provides 802.1p, DSCP-priority Remark capability;

Super queue scheduler based on port or self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR andSP+WRR;

Congestion Avoidance Mechanism, including Tail-Drop and WRED;

IPv4

DHCP Relay;

DHCP Server;

DHCP Snooping;

Static Routing;

Multicast

IGMPv1/v2/v3 Snooping;

IGMP Fast leave;

IGMP Proxy;

Reliability

Loop   Protection

Service port has lightning protection

Link Protection

Loopback-detection;

RSTP/MSTP (recover-time<1s);

Link aggregation   (recover-time<10ms);

Device   Protection

1+1 power hot backup;

Maintenance

Network   Maintenance

Port real-time, utilization and transmit/receive statistic

Powerful WEB GUI

GPON OMCI;

Data Logging and RFC 3164 BSD syslog Protocol;

Ping and Traceroute;

Device   Management

Console port, Telnet, SSH management;

Out-band management;

SNMPv1/v2

RMON (Remote Monitoring)1,2,3,9 groups MIB;

SNTP;

Fan management

Power Supply

AC: input 100～240V　50/60Hz;

Redundancy Design

Dual power supply Support AC input, double DC input and AC+DC input

Power Consumption

96W

Dimensions (Width x Depth x Height)

440mm×44mm×380mm

Environmental   Requirements

Working temperature: -10°C～55°C

Storage temperature: -40°C～70°C

Relative humidity: 10%～90%, non-condensing
