IEC61032 Test Probe D used for IP4X Testing
USD $90 - $400
/ Piece
1 Piece(Min. Order)
- Guangzhou
- T/T Credit Card PayPal
- 1 days
You May Like
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-TPD | Power | Other, None | |
| Usage | Universal Testing Machine |
Product Description
IEC61032 Test Probe D used for IP4X Testing
1. Introduction:
Designed according to IEC61032 figure 4, meet the requirements of IEC60529-IP3，IEC60065，IEC60598 and etc. This wire is intended to verify the protection of persons against access to hazardous parts. It is used to verify the protection against access with a wire.
2. Specification:
Length of test wire: | 100mm | Diameter of test wire: | 1mm |
Diameter of stop sphere: | 35mm | Diameter of handle: | 10mm |
Length of handle: | 100mm | ||
Material: Insulation material (handle, stop sphere), metal (test wire) | |||

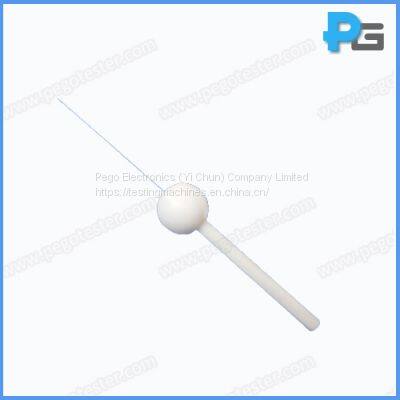

3. Picture:
