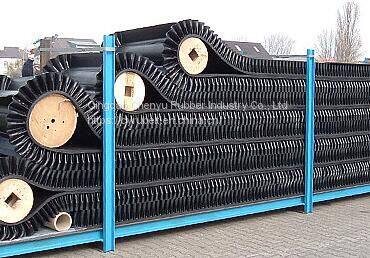

Sidewall Conveyor Belt

Qingdao Chenyu Rubber Technology Co.,Ltd is a comprehensive enterprise engaged in the production and processing of rubber conveyor belts and conveying equipment.

We have comprehensive conveyor belt production plant and conveyor equipment production base in Linyi, have more than 20 years of experience in the conveyor belt and system, including long-term international production.

We have advanced production equipment, focus on the production of various types of conveyor belts; The company has advanced testing and inspection equipment to fully ensure product quality and meet national and industry standard requirements and customer needs.

Quick Details

Applicable Industries: Construction works , Energy & Mining

After Warranty Service: Video technical support, Online support

Local Service Location:None

Showroom Location:None

Condition:New

Material: Rubber

Structure: rubber belt

Place of Origin: Shandong, China

Power: none

Warranty: 1 Year

After-sales Service Provided: Online support

Width or Diameter: 300mm-2400mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2021

Warranty of core components: 1 Year

Core Components: rubber conveyor belt

Product Name: rubber conveyor sidewall belt

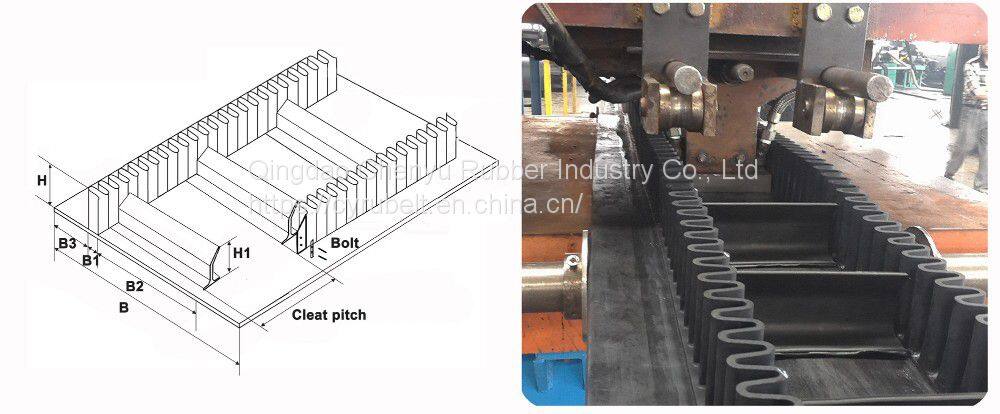

Based belt width(B): 300-1400mm

Sidewall height(H):40-400mm

Cleat height(H1): 35-360mm

Bottom width of sidewall(B1): 25-100mm

Cleat width(B2): 120-830mm

Empty width(B3): 35-210mm

Cleat type:  t/ts/tc/tcs

Key Words: rubber conveyor sidewall belt

Application: Mining

Product description

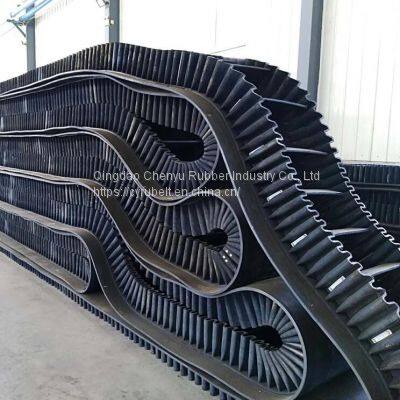

Sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space,the economy is achieved by single belt operation,wide range material can be handled, less space requirement,no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.

 Property

  -- Sidewall conveyor belts are composed of three parts:base belt,sidewall and cleats

   -- Possible to convey at steep angle with big capacity in a limited space

 Property-- Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal flexibility and transverse rigidity.

-- The entire steep angle conveyor belts are highly durable,low elongation and long lasting

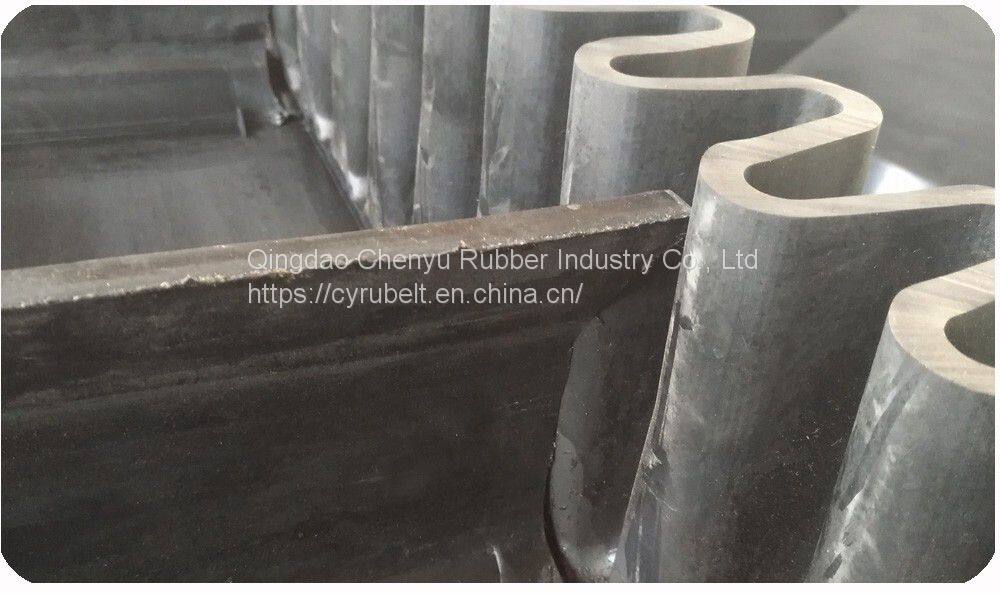

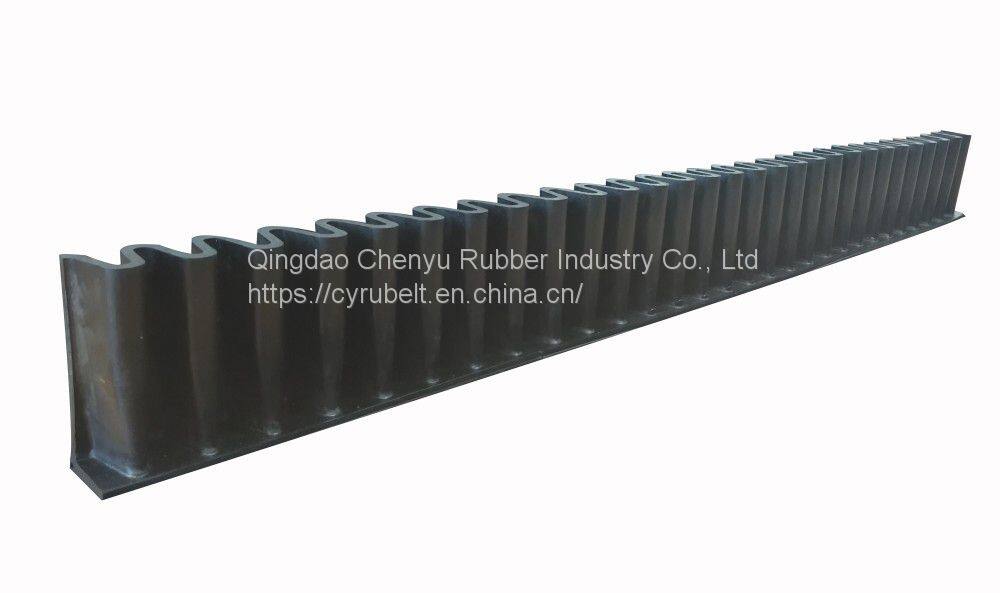

Sidewall

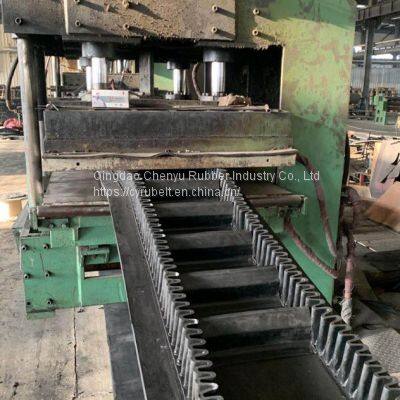

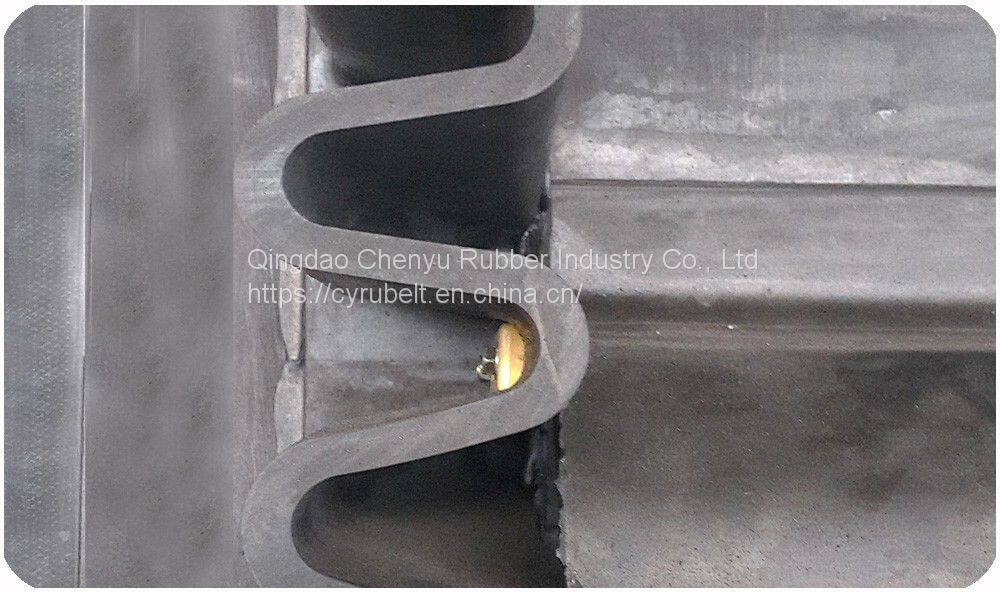

--Sidewall is hot vulcanized on the base belt

-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing

 Sidewall

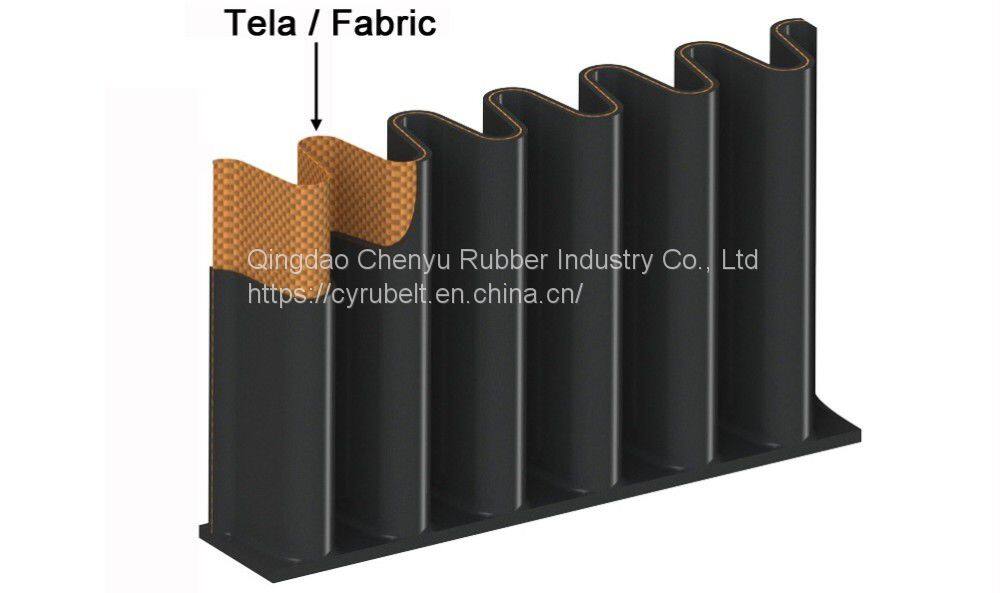

-- Fabric inside sidewall perfectly combine flexibility and strength to effectively avoid torn

-- Sidewall height ranges from 40mm to 400mm

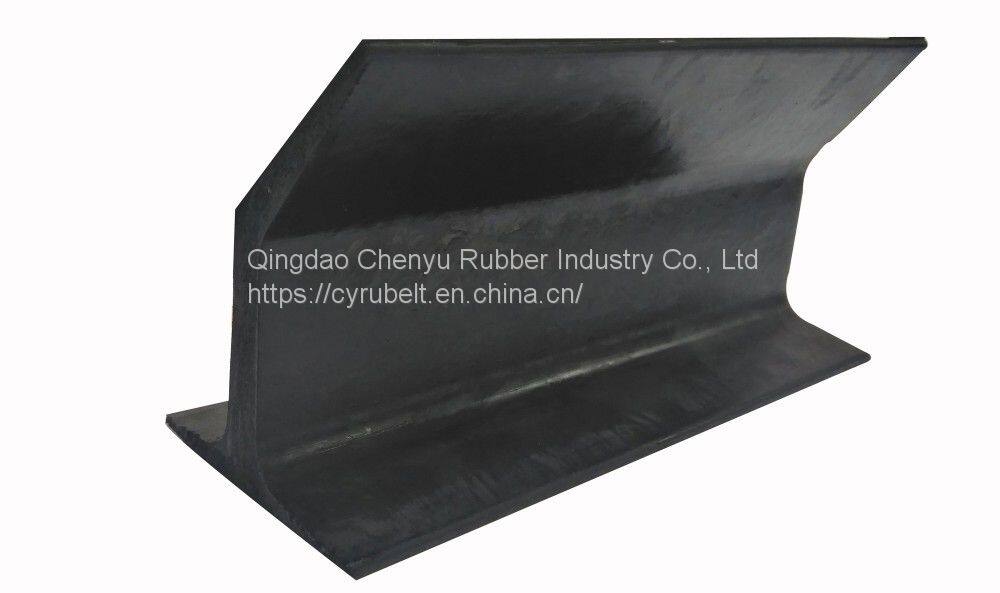

Cleat

-- Cleats are also hot vulcanized on the base belt

-- Fabric inside cleats protect cleats from deformation caused by impact.

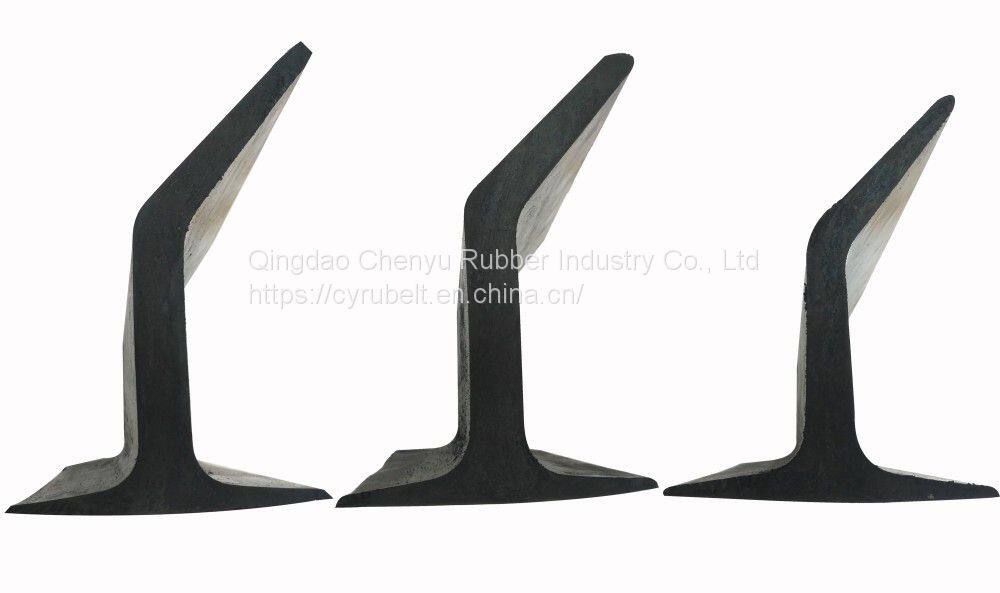

Cleats

-- Cleats are the main part to carry materials in a high capacity and steep angle

-- Available with TC or TCS type

-- Special compounds to extremely avoid deformation caused by impact.

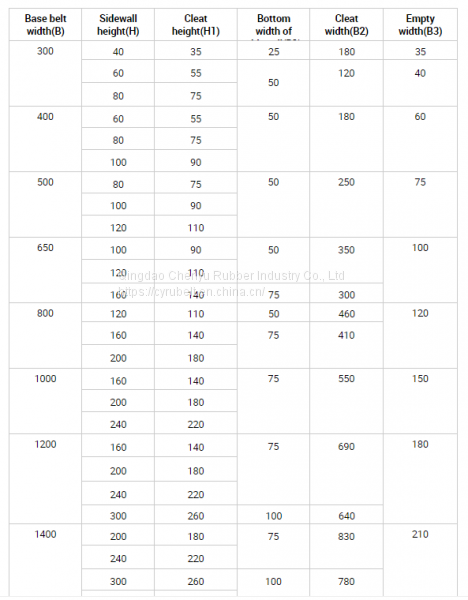

Specification
