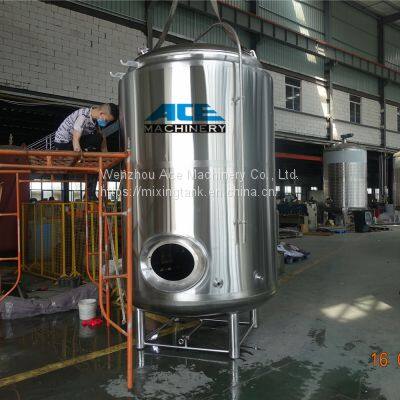

10bbl brite tank

FOB Price

USD $2000 - $3000 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ACE	Place of Origin	China
Model Number	www.ace-chn.com	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Condition	New
Processing Types	Other, BEER

Product Description

We Can Make The Brewing Equipment For Beer, Wine, Sparkling Wine ,Whiskey,Gin, Brandy, Rum Etc The Equipment Capacity From 300l To 30000l. Beer Equipment: Including The Brewhouse,Fermenter , Brite Tank , Cip Trolley Etc;
Wine Equipment: Including The Red Wine/White Wine/Sparkling Wine Tank , Floating Lid Wine Tank And Whole Wine
Distillation Equipment: Including The Rum/Whiskey/Brandy/Gin/Vodka Stills

20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.Sold to Over 30 Countries.Advanced Technology.Contact us for the offer.

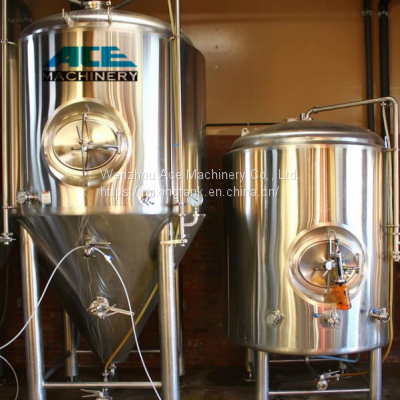

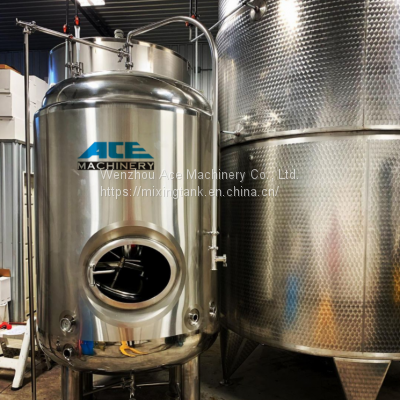

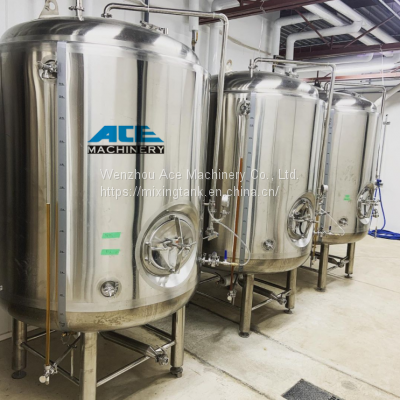

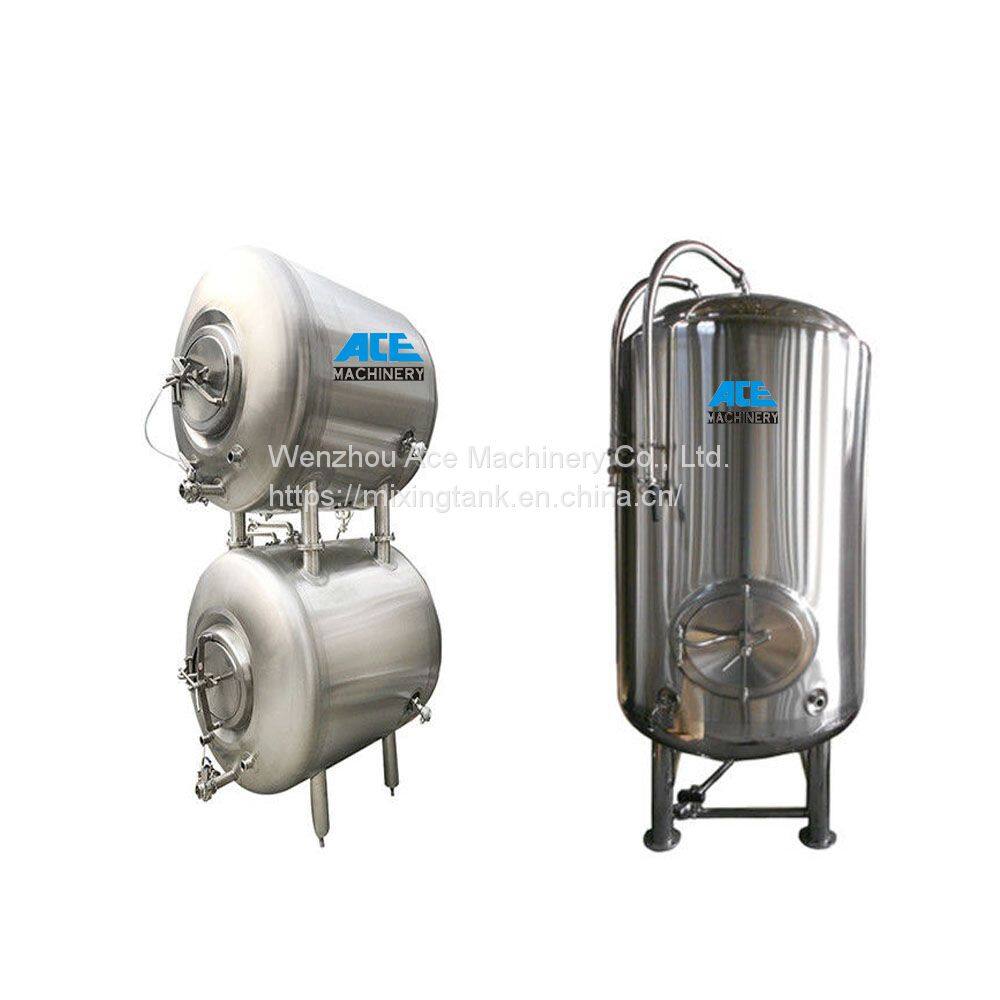

After fermentation and filtration, the beer is then transferred to Brite Tanks where the beer will remain to mature, clarify, chill, and carbonate. After this process is complete, Brite Tanks also function as Storage/Serving Tanks to maximize space. From here, you can then bottle, can, keg, or serve directly from the Brite Tank.

For any brewer looking for efficiency, you can expect reduced carbonation times and more efficient yeast transfers when pairing Conical Fermenters and Brite Tanks.

As with all of our durable 304 stainless steel tanks, you can expect easy sanitization with no concerns of lingering odors, contaminants, or deterioration/corrosion.

Thickness	Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
Material	Stainless steel 304
Cooling way	Dimple jacket plate
Cleaning way	CIP in situ cleaning, with rotary spray cleaning ball
Insulation	Polyurethane-thickness: 100mm

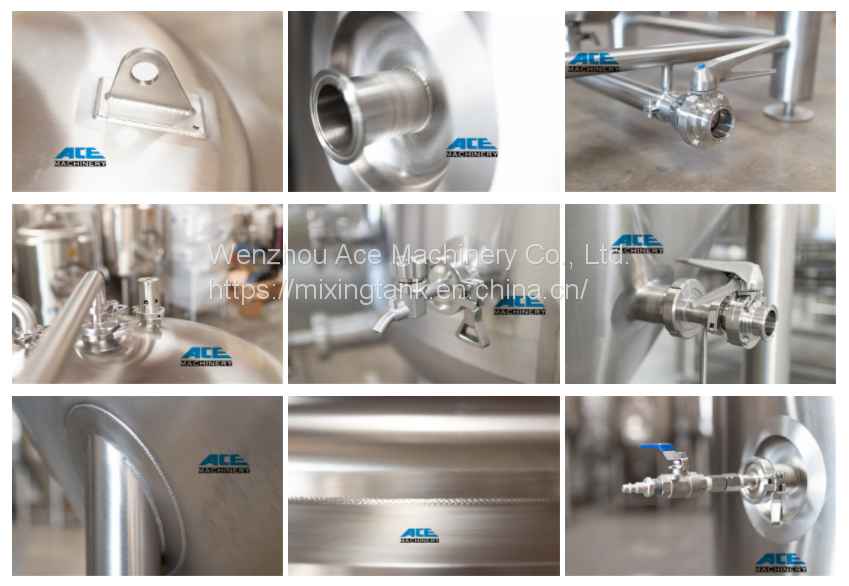

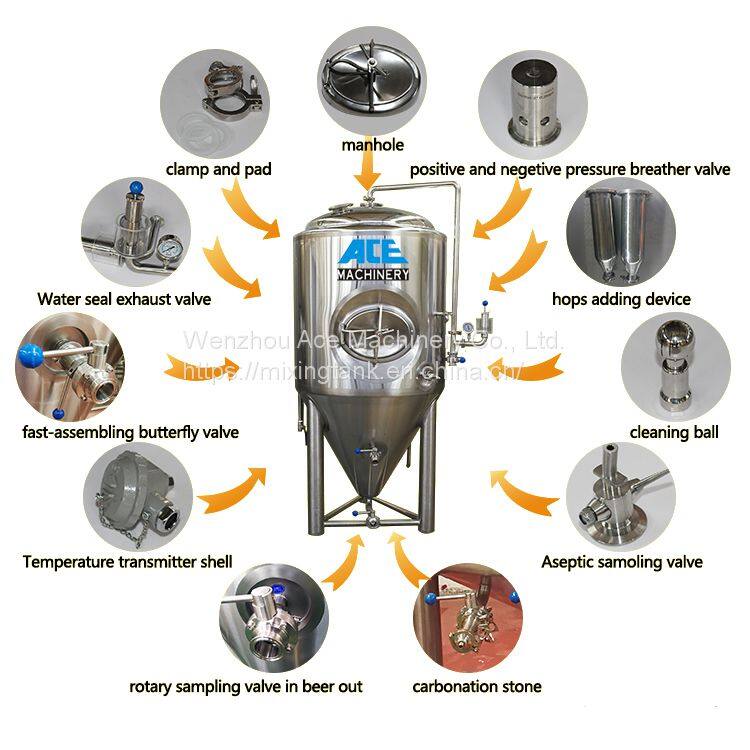

Accessories	Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP , Titanium rod,Arm, Hop port, Discharge arm and so on.
We can customize the Brewing equipment according to customer requirements.

Advantage:

1. Highly competitive price, more than 10 years production and manufacturing experience 2. ISO9001, CE (2014/68 / EU) PED certification 3. Strictly quality control, meet the European quality standard, take 3 times water pressure test during production. 4. Accept customized, professional engineers will provide design solutions for you 5.Use high-quality 304 stainless steel, ensure the thickness of the material 6. Dimple plate cooling jacket, better cooling effect and longer service life 7. Equipped with safety valve, water-sealed pressure valve, to ensure the safe operation of the fermentation tankStandard Features Material: 304 stainless steel Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, Fully welded exterior shell 60-72 degree cone bottom, with an average of 25% head space Rotating racking port Top manhole or side manhole Dual zone dimple cooling jackets Polyurethane insulation 80mm CO2 blow off arm CIP arm and spray ball Sanitary tri-clamp connection Dry hop port Stainless steel handle butterfly valve,sample vale Safety valve(Breathing valve),Water seal co2 exhaust valvee Clamps and gaskets, pressure gauge Stainless steel legs with stainless leveling footpads

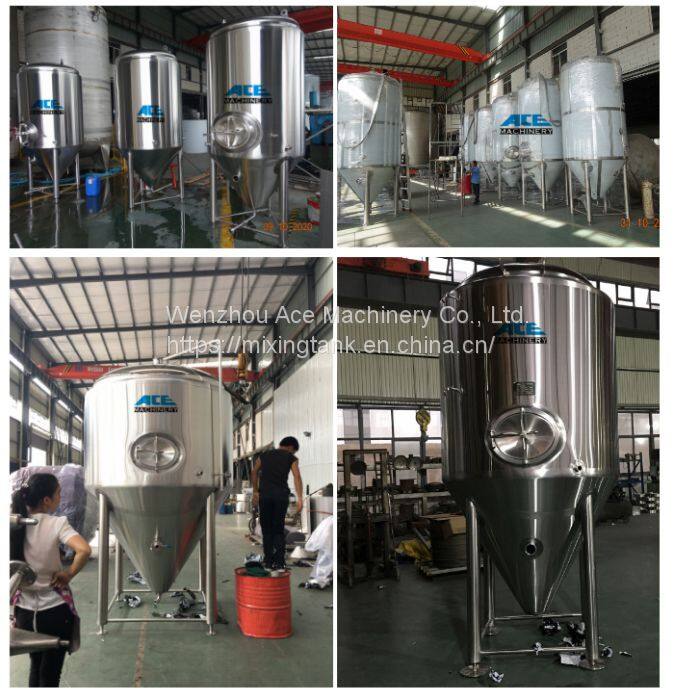

Fermentation Tank

? Beer Fermentation Tank has 200L and 30,000L and otherpecifications, according to the actual requirment of customers. ? Cone bottom shape, cooling jacket using dimple jacketjacketed outside covered with insulation, thermal insulationmaterial for polyurethane (cold). ? Connector using tri-clamp, inner tank using SS304 or S316L the inner surface mirror polishing Ra≤0.4um-0.6um. Outersurface can be polished, wiredrawn, sandblasted according tocustomers requirement.

Stainless steel beer fermenter
Structure:	1.Volume from 100L-30000L,could be customized according to customer needs.
	2.Material use sanitary stainless steel.
	3.Three layer structure:Inner body,Jacket and isolation.Isolation layer filled with insulation material.
	4.Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish
	5.Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket.
	6.All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish
	7.PLC control system,which could achieve automatic,semi automatic control,to ensure the accurately and effectively of parameters and experimental results.
Parts(optional):	1.Manhole 2.Aseptic breather 3.Thermometer(As customer request) 4.CIP Spray ball 5.Bacterial access port 6.Agitator 7.Adjustable leg 8.Jacket(Dimple or full jacket as customer request)

FAQ

Q1. What is your terms of packing? A: Generally, we pack our goods in plywood case or carton package for small parts. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery? A: EXW, FOB, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. Q6.Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ;    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
