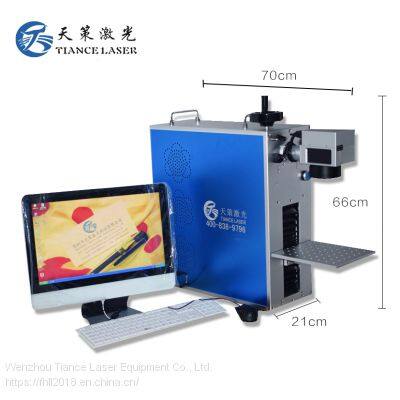

CX-20W Portable Laser Marking Machine

Product application:

It is widely used in many fields, such as IC chip, Hui Electronics, computer accessories, industrial bearings, clocks and watches, sanitary ware, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, jewelry, medical equipment, tobacco and military affairs, as well as large-scale production lines Homework.

working principle:

Fiber laser marking machine is to use laser beam to make permanent marks on different material surfaces. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "carve" the traces through the chemical and physical changes of the surface material caused by the light energy, or to burn off some materials through the light energy, showing all kinds of patterns, characters, bar codes and other graphics that need to be etched. The so-called fiber laser marking machine refers to the use of fiber laser and fiber laser It has small volume (no water cooling device, air cooling), good light quality (basic mode), maintenance free

Machine features:

⊙ stable laser power output and good spot quality;

⊙ the marking speed is fast, 2-3 times of the traditional model;

⊙ no limitation of any operating system, convenient operation, completely closed optical path, stable and reliable, maintenance free;

⊙ super long life, over 80000 hours;

⊙ no pollution, noise and consumables. The power consumption is 5% - 10% of the traditional model;

⊙ overcome the weakness of laser with high anti material damage, and can mark all metals;

⊙ ultra high precision, resolution up to 2540dpi

Software functions:

⊙ able to receive various BMP, JPG, DXF, PLT, AI and other format files

⊙ automatically generate various serial numbers, production date, one-dimensional code, two-dimensional code and barcode

⊙ support flight marking

⊙ support rotating marking

⊙ support automatic segmentation and marking of large area XY platform

Technical parameters:

Model and specification tc-ylp-30

Laser wavelength: 1064nm

Laser power: 30W

Laser repetition frequency: 0-100khz

Minimum focus spot diameter: 10um

Marking speed ≤ 12000mm

Repeatability ± 0.1 μ M

Minimum character 0.05mm

Mark range: 110x110mm-300x300mm

Cooling mode: air cooling

Working power supply: AC220V
