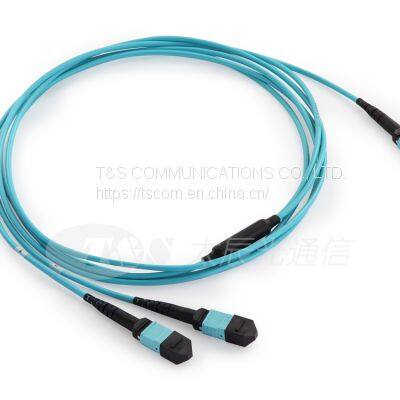

Like MTP/MPO cable, MTP/MPO Shuffle cable is also used for connecting MTP modules together as a permanent link, and it also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection of the extension of the pre-terminated trunk cable by MTP/MPO panel. Normally, the shuffle cables are used to interconnect cassettes, panels, or ruggedized MTP/MPO fanouts, spanning MDA, HDA, and EDA zones. The difference is that its optical fiber routing is formulated according to the requirements of the optical connection at the construction site, which can realize special optical fiber routing different from the conventional polarity, reducing network installation or reconfiguration time and cost.

Features of MTP/MPO Shuffle Cable

Low loss performance

Up to 288 fibers – ideal for high-density applications

Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request

Option for LSZH, OFNP or OFNR cable jacket

100% factory terminated and tested

Pulling eyes are provided as an option to protect the fiber ends during installation

Save installation and reconfiguration time

Applications of MTP/MPO Shuffle Cable

Data Centers

40/100G applications

Storage area network- fiber channel

Parallel optics

InfiniBand

The internal connector application in fiber equipment

Standards Compliance of MTP/MPO Shuffle Cable

TIA/EIA-568.3-D and ISO/IEC 11801

IEC-61754-7 & EIA/TIA-604-5&GR-1435-CORE

NFPA 262 or IEC 60332

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

EN 50575

InfiniBand Compliant

Specifications of MTP/MPO Shuffle Cable

General Specification

Construction	Description
Fiber Count	12-288 Fibers
Fiber Mode	Single mode: OS2/G657 9/125um Multimode: OM4 50/125um, OM3 50/125um
Fiber Brand	SMF-28? Ultra optical fiber Corning ClearCurve? multimode fiber
Cable Jacket Ratings	Riser (OFNR) Plenum (OFNP) Low Smoke Zero Halogen (LSZH)
Cable Jacket Color	OS2/G657: Yellow OM3: Aqua; OM4: Aqua/Magenta or Customized
Polarity	Customized
Connector Ferrule	12F/16F/ 24F/32F/48F
Connector Ferrule Brand	US Conec, HANKUSAN, Nissin
Connector Type	MTP Female, Male; MPO Female, Male
Connector Brand	US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Connector Color	Ferrule	SM(APC)	SM(PC)	OM3	OM4	or Customized
	Low loss	Yellow	Yellow	Aqua	Magenta
	Standard	Green	Blue	Aqua	Magenta
Connector Boot Color	Green/Black/ or Customized
Pulling eye	Customized
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

Technical Specification

Optical Properties	Single mode		Multimode
Insertion Loss (dB)	Low loss	Standard	Low loss	Standard
	≤0.35(Typical:≤0.25)	≤0.75(Typical:≤0.4)	≤0.35(Typical:≤0.2)	≤0.5(Typical:≤0.35)
Return Loss (dB)	PC≥50; APC≥60		PC≥20; APC≥40
Wavelength (nm)	1310/1550		850/1300
Durability	≤0.3 (dB)typical change, 50 matings
Fiber Attenuation (dB/km)	Single Mode: ≤0.35 at 1310nm, ≤0.2 at 1550nm Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm

Typical Cable Structure of MTP/MPO Shuffle Cable

Fiber Count	OD(mm)	Nominal Weight(kg/km)	Max.Tension(N)		Max.Crushing Resistane(N/100)
Fiber Count	OD(mm)	Nominal Weight(kg/km)	Short term	long Term	Short term	long Term
12	3.0±0.1	8.1	150	80	500	150
24	3.0±0.1	8.5	160	80	500	150
24	9.0±0.5	72	500	180	1000	300
36	9.0±0.5	78	500	180	1000	300
48	9.0±0.5	79	600	200	1000	300
60~72	11.2±0.5	126	1000	300	1000	300
96	13.5±0.5	178	1000	300	1000	300
144	17.5±0.5	285	1000	300	1000	300

Note: The true weight of optical cable may have some tolerance with the above-stated value.
