Home > Products > drilling machine > Z5032C-1/Z5040C-1/Z5045C-1 High quality Vertical Drilling Machine
Z5032C-1/Z5040C-1/Z5045C-1 High quality Vertical Drilling Machine
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 20 days
You May Like
-
Z5035A Z5040A Small Metal Cheap Vertical Drilling Machine
-
Z5125 High quality Vertical Drilling Machine
-
Z5132 Mini bench Vertical Drilling Machine
-
Z5140 Z5150 Small Metal Cheap Vertical Drilling Machine For Sale
-
Z5163 Vertical Small Metal Cheap Vertical Drilling Machine For Sale
-
Z5180 Small Metal Cheap Vertical Drilling Machine For Sale
Product Details
| Brand Name | Luzhong | Place of Origin | China | |
| Model Number | Z5032C-1/Z5040C-1/Z5045C-1 | Certification | GS, CE, RoHS, ISO 9001 | |
| Weight | 430KG | Dimension(L*W*H) | 1850x750x1000mm | |
| Voltage | Customized | Condition | New | |
| Power(W) | 0.75KW | CNC or Not | Normal | |
| Drilling Speed | 95-1500?r.p.m |
Product Description

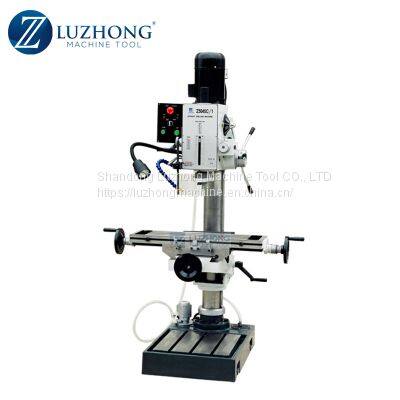

Z5032C-1/Z5040C-1/Z5045C-1 High quality Vertical Drilling Machine
Product Description
Product Parameters
Specifications | Z5032C/1 | Z5040C/1 | Z5045C/1 |
Max. Drilling dia. | 32mm | 40mm | 45mm |
Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
Spindle travel | 130mm | 130mm | 130mm |
Step of speed | 6 | 6 | 6 |
Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
Step of spindle auto-feeding | 6 | 6 | 6 |
Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
Max.distance from spindle nose to worktable | 700mm | 700mm | 700mm |
Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
Max.travel of headstock | 250mm | 250mm | 250mm |
Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
Max.travel of worktable bracket | 600mm | 600mm | 600mm |
Table Size | 730×210mm | 730×210mm | 730×210mm |
Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
Forward and afterward travel of worktable | 205mm | 205mm | 205mm |
Left anf right travle of worktable | 500mm | 500mm | 500mm |
Vertical travel of worktable | 570mm | 570mm | 570mm |
Motor Power | 0.75kw | 1.1kw | 1.5kw |
speed of motor | 1400rpm | 1400rpm | 1400rpm |
Coolant pump power | 0.04kw | 0.04kw | 0.04kw |
Net weight/Gross weight | 437/500kg | 442/502kg | 443/505kg |
Packing size | 1850x750x1000mm | 1850x750x1000mm | 1850x750x1000mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
