Cheap price Good quality Hot sale 100Ton 60Ton Horizontal Tensile Test Bench for Wire Rope Chain
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Cheap price 500 ton Hydraulic Horizontal Tensile Universal Test Bench for steel chain Achor wire rope
-
3.5-7 inch LCD OCA Vacuum Laminating Machine NO bubble Semi Automatic OCA Laminator Machine For LCD
-
OCA laminating machine Touch screen OCA laminating machine Customized Semi automatic laminating line
-
OCA TP LCM Laminating Inspection Machine OCA Vacuum Laminating Machine Semi- Automatic
-
High Precision 7-13.5 Medium Vacuum Lamination Machine Glass Vacuum Oca Laminate Machine
-
Medium Size Vacuum Glass Lamination Machines Semi-Automatic Laminating Vacuum Laminate Machine
Product Description
Product Description

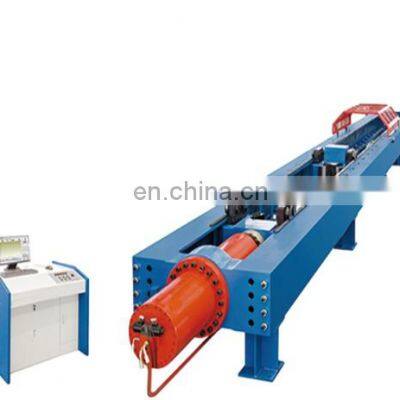

Product name | Chain Horizontal Universal Testing Machine |
Packing | Wooden box |
Supply Capacity | 3 units/month |
Origin | Shandong China |
Parameters：
* Maximum test force: 600KN;1000KN;2000KN
* Test force measurement range: 2%-100%;
* Relative error of indication: ± 1%;
* Maximum stretching space (excluding piston stroke): 10000mm;
* Test space adjustment spacing: 500mm;
* Net width of stretching space: 1000mm;
* Maximum stroke of piston: 1500mm;
* Displacement measurement range: 0-1500mm;
* Displacement measurement resolution: 0.01mm;
* Maximum moving speed of piston under no load: 200 mm / min;
* Clamping range of round specimen: Φ 12 mm ~ Φ 60 mm;
* The clamping range of flat specimen is 0 mm ~ 55 mm;
* It can display a variety of test curves: test force time, test force displacement, displacement time, etc. it has the function
of dynamic display of test force, displacement, time and test curve.
* The overall dimension of the main engine is about 17000mm × 1600mm × 900mm;
* Total weight: 10000kg；14000kg；16000kg
* Test force measurement range: 2%-100%;
* Relative error of indication: ± 1%;
* Maximum stretching space (excluding piston stroke): 10000mm;
* Test space adjustment spacing: 500mm;
* Net width of stretching space: 1000mm;
* Maximum stroke of piston: 1500mm;
* Displacement measurement range: 0-1500mm;
* Displacement measurement resolution: 0.01mm;
* Maximum moving speed of piston under no load: 200 mm / min;
* Clamping range of round specimen: Φ 12 mm ~ Φ 60 mm;
* The clamping range of flat specimen is 0 mm ~ 55 mm;
* It can display a variety of test curves: test force time, test force displacement, displacement time, etc. it has the function
of dynamic display of test force, displacement, time and test curve.
* The overall dimension of the main engine is about 17000mm × 1600mm × 900mm;
* Total weight: 10000kg；14000kg；16000kg
Company Profile
Jinan Time Shijin Testing Machine Co., Ltd.
Jinan Time Shijin Testing Machine Co., Ltd. is a high-tech enterprise, It was established in 1952 as a state owned company, The earlist and most influential testing machine manufacturer in China. In 2003,We were associated with Beijing Time Group a public company.We have one national enterprise technology center, 108 many kinds of patents, ISO 9001 certificate, CE certificate, 131 units of precision CNC processing machine. we are China's famous brand, Quality trustworthy enterprise. And we also have the most professional sales and service team. We are not only famous in China, but also have been exporting into more than 35 oversea countries and areas.
Certifications
Packaging & Shipping
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
