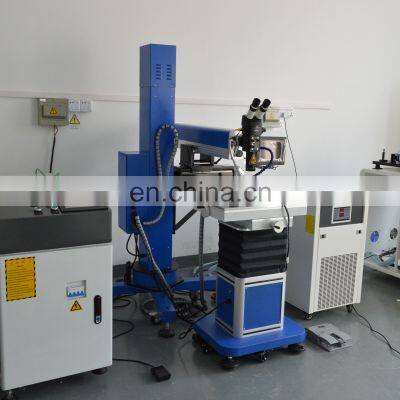

Great Cnc Laser Welding Machine for Metals/mould Repair Laser Welding Machine/metal Parts Fiber Optic Laser Welding Machine

The laser welder system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period.

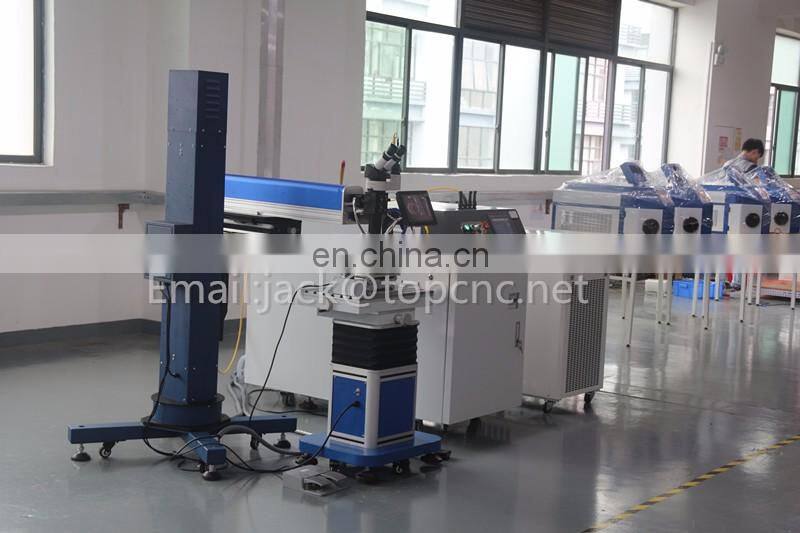

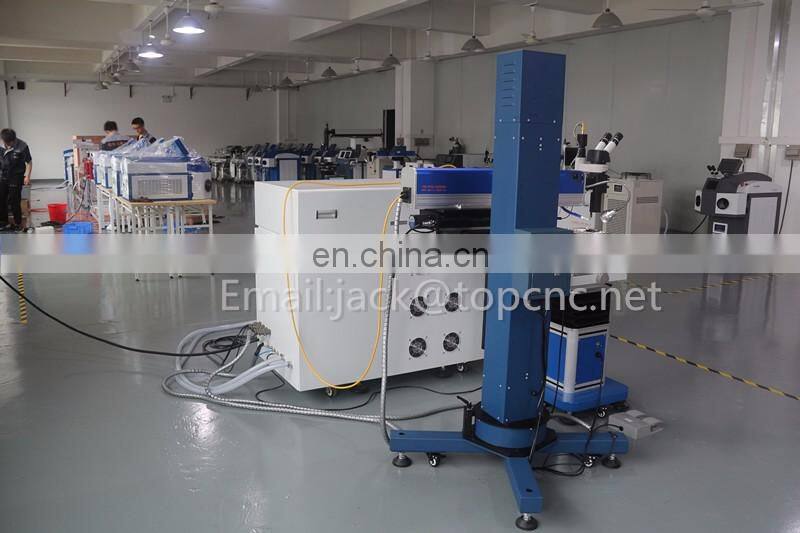

Laser welding system
Laser Power Supply
Input voltage AC 380V 50z/ 60Hz 3 phase 5 wire
Input current AC 60A
Power consumption Max.15KW
Continuous working time ≥16h
Laser System
Wavelength :1.06μm
Laser source Nd:YAG lamp pumped
Cavity Imported ceramic cavity module from Morgen, UK.
Average Output Power: ≥300W
Pulse Frequency :1-100Hz (adjustable)
Pulse Width Range :0.2-20ms (adjustable)
Max. Single pulse energy: 90J
Focal length :F=75mm,100mm Φ=30mm
Min. Spot Diameter: 0.1-0.2mm
Fiber cable delivery: 5m

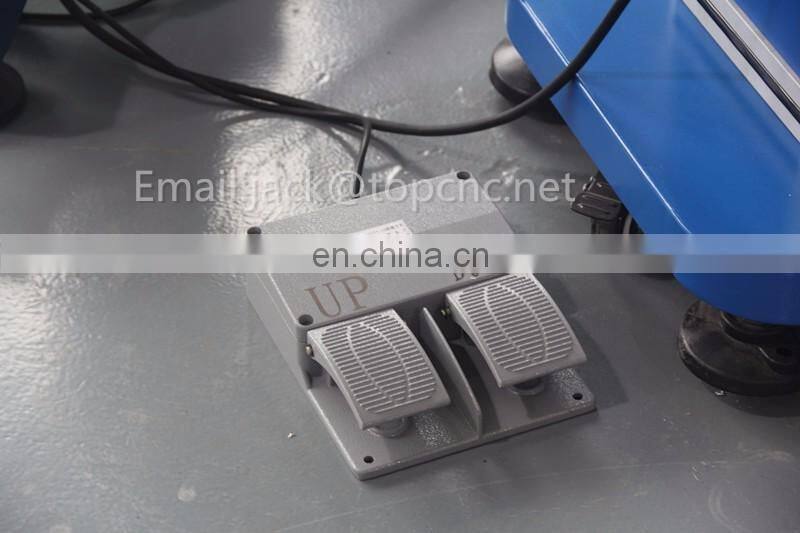

Foot Switch
Pilotlaser Integrating pilot laser for position: Diode laser: 635nm 1mW 3-5V

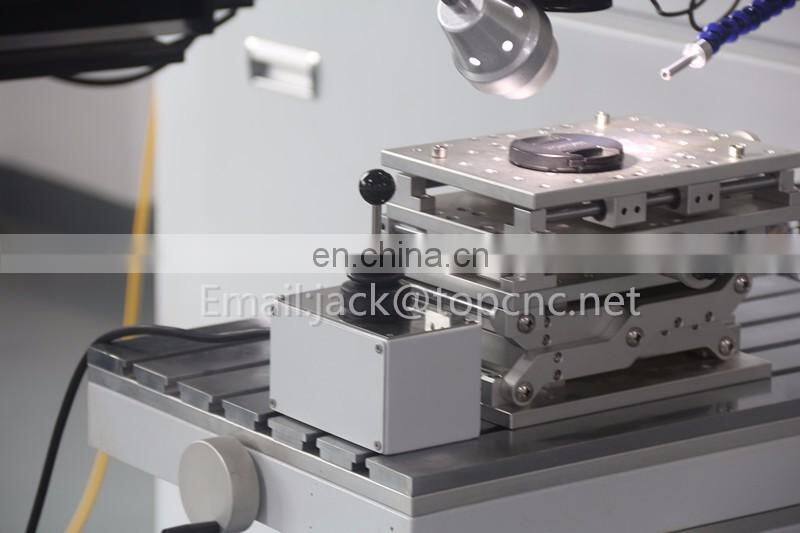

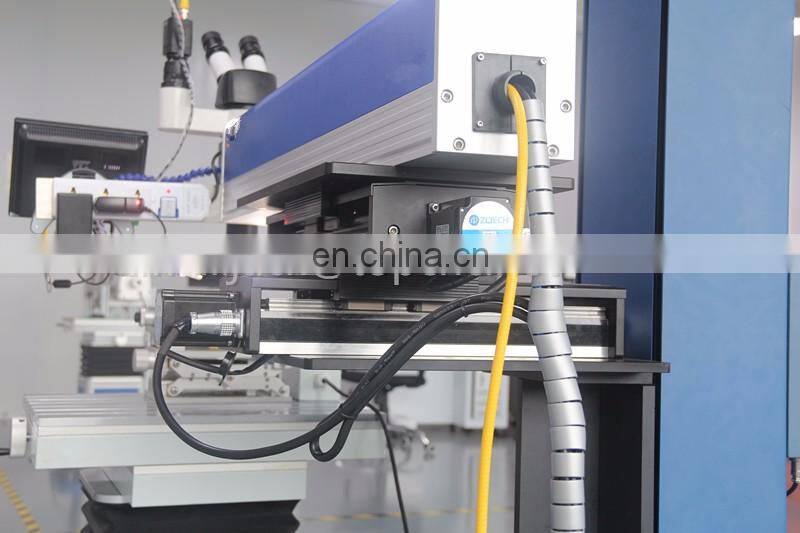

Working table
XY working table controlling by servo motor with joystick control
Table size: 400x400mm
Travel range: 200x200mm
Z axis travel range: 150mm
Control system
PLC Touchscreen operation panel (English version)

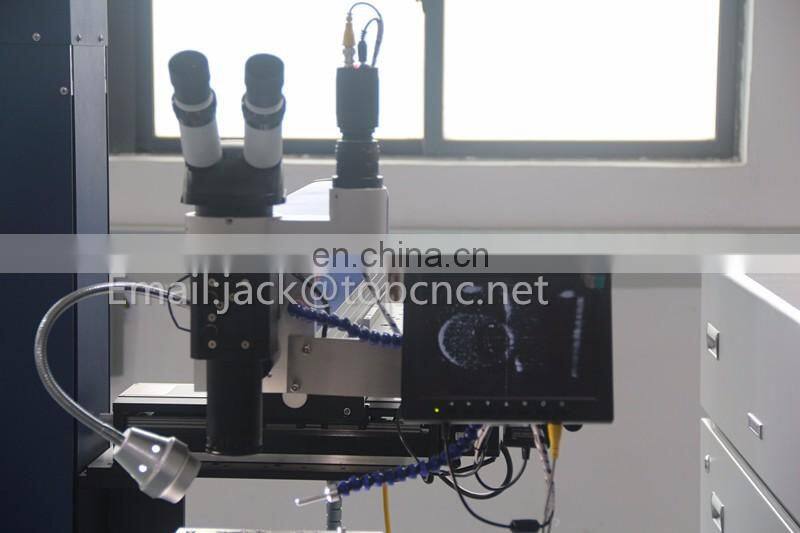

With CCD monitoring + Mircoscope 20X

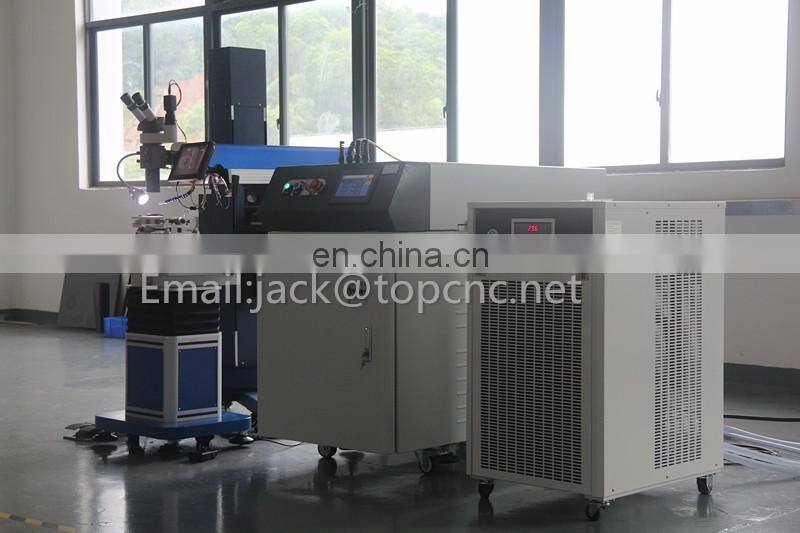

External chiller
Cooling capacity 1.5P
Cycling water Deionized water or pure water
Flow rate 35L/M (Max.)
Adjustable Temperature Range 7 – 35oC
Adjustable temperature precision <  1oC

Consumption Kit:
Flash lamp 4 pcs
HR+PR mirrors 2 sets
IR Display card 1 pcs
Laser Ablation Paper 5 pcs
Focus lens (Φ30mm, f＝75mm) 5 pcs
Protection lens 5 pcs
Goggles 2 pairs

Warranty:
One year for machine.
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
How to contact us?

Email:jack(@)

Whatsapp/Skype/MB:0086 18366134697

Tocnc company is an advanced modern enterprise specializing in the research and development, production and sales of the optic, mechanical and electronic products. We have the first class research and development center and professional production base at present, and lots of experienced high-tech producing and managing staff as well.

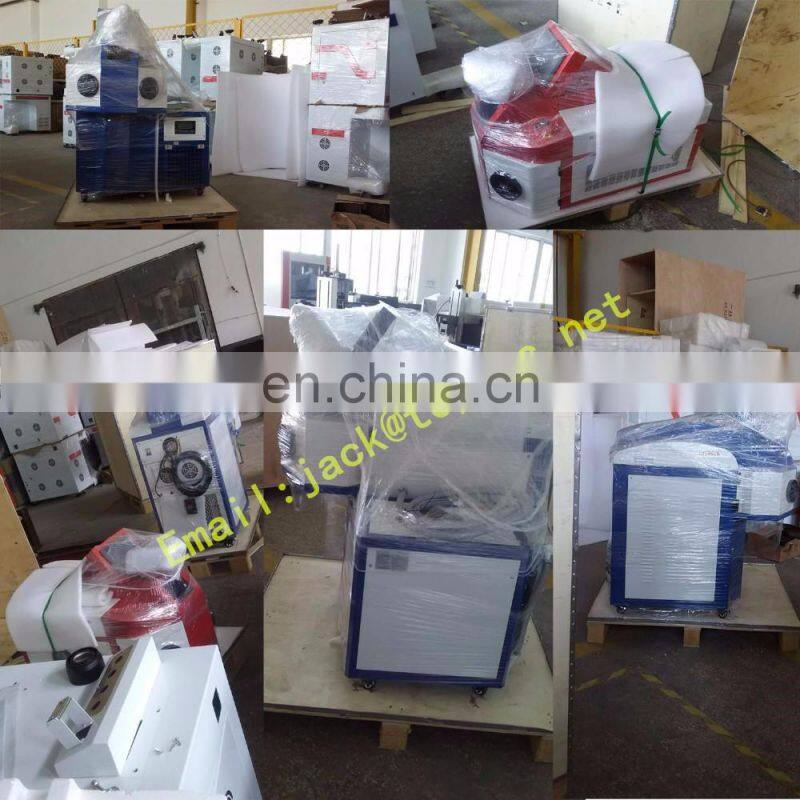

1.Wood case or as per required.
2.The delivery lead time would be 7-15 day against down payment.
3.As for the wholesalers/distributors,we could send the cargo by air, by sea or by railways
via reliable forwarder

Q:How was the machine guarantee?
A: We offer you 12 months guarantee
Q; How can i use the machine , if i am the new buyer?
A:
1) Free Training by VCD: Top Laser will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN,ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
2)Free Training at Top laser's Factory: You can sent operator to Top Laser's factory for free training 3-5 days. TopLaser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
3) Our professional engineer can do a door-to-door instruction training service at your local factory.We need your help to deal with the visa formality,prepaid traveling expenses and accommodation
to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period. International Air Ticket + Local acommendation bears by buyer.

Q: How do you control your quality?
A: Before we ship our machine to another country, we will test it well,let it go through every of the
corner check the accuracy.Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
