Product Description

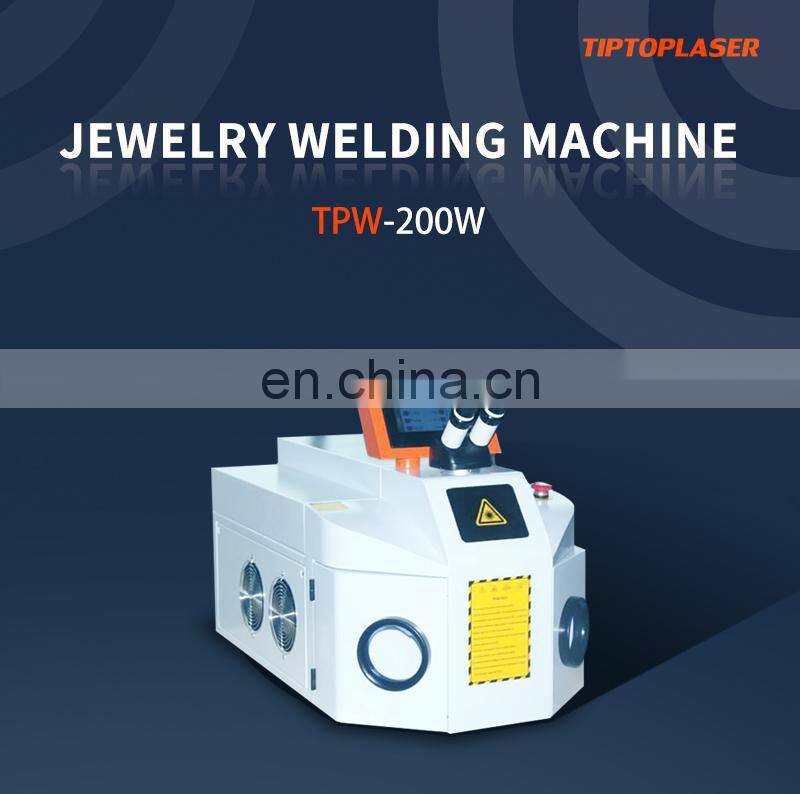

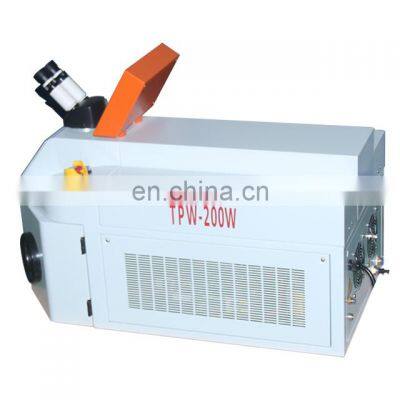

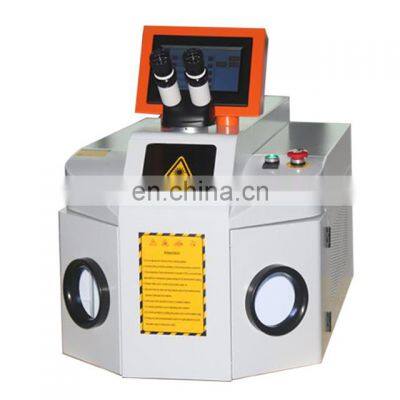

Mini 200W Portable Jewelry Laser Welding Machine Jewelry Gold Silver
This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
The jewelry/dental laser weldeing machine is specifically for jewelry laser welding of a product, mainly used in gold,bronze,stainless steel and silver ornaments of the hole and spot welding blisters.This laser welding machine is widely used in jewelry,dental,Advertisement sign field,the prospect of market is good.
1. Jewelry laser welder is high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2. Laser is quick, Frequency can reach 20HZ.
3. Jewelry,glasses frame,mould,dental teeth need laser welding way which have beautiful welding joints .
4. Jewelry Laser welding machine is widely used in all kinds of metal like gold,sillver,bronze,aluminum.steel and titanium!
5. Laser welding is new product, Buying this product can help you win advanced cleaning market!
6. We manufacture power supply which have big advantage in prices and after sale service.
7. Engineer door to door service.
Product Name |
200W Portable Mini Spot Gold Silver Jewelry Laser Welding |
Model No. |
TPW-200W |
Laser Source |
Nd:YAG |
Laser Wavelength |
1064nm |
Rated Power |
200W |
Laser Energy |
120J |
Pulse Width |
≤20ms |
Pulse Frequency |
≤35Hz |
Beam Diameter |
0.1-3.0mm |
Power Supply |
220V±10% /50Hz and 60Hz compatible |
Observing System |
microscope 10X |
Chamber Illumination |
LED circle lamps |
Parameters Memorization |
10 groups |
Protection Alert |
flow alert |
Language Display |
Chinese/English |
Shield Gas Supply |
One line(Argon) |
Cooling System |
water chiller |
Power Consumption |
7.5KW |
Welding Chamber Dimensions |
340mm*540mm*180mm(L*W*H) |
Machine Dimensions |
Welder:970mm*570mm*1220mm (L*W*H) Chiller:430*370*585mm(L*W*H) |
Running Environment |
5℃-30℃, 5%-75% humidity |
Net Weight |
150kg(welder)+65kg(chiller) |
1: 1 year warranty. If there are some parts broken, we will send replaced ones to you, the round shipping cost is on yours. (not included consumables)
2: Customer service will be feedback within 2 hours.
3: We provide machine lifetime maintenance services even though warranty expires.
4: Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades.
--------------
1: Can I get some tests before I decide which to buy?
Yes, we are able to offer free tests. Actually we suggest to have some tests before you making the purchase decision.
There are several models of laser welding machine, normally we will make tests for our customer with different models to choose the most suitable one from our professional suggestion but not the most expensive one. The samples test will be shown by videos and pictures.
2: Is the machine very difficult to learn? I am a very new starter in lasers.
Please don't worry, the machine is very easy to operate, even if it is your first laser machine.
(1) We will share the demo software, you can try the basic functions in your PC;
(2) All user manuals, the machine, software and other supportive guidance, will be prepared for you in paper or PDF;
(3) Before the machine leaving for you, we will take complete guidance video to show you the basic steps to start the machine;
(4) Following the machine, there will be a flash driver, which includes the teaching videos, data backup, related files;
(5) Open to negotiate the operation skills, no time limited.
3: Do I need to pay special attention on the machine maintainence?
The advantage of the fiber laser is less maintainence and long service time.
