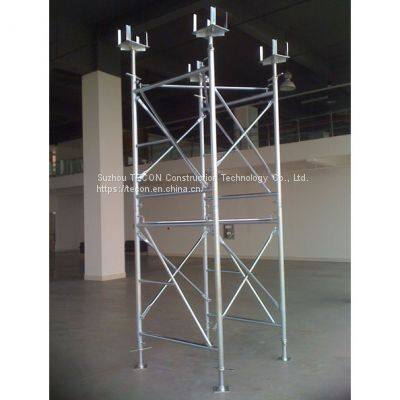

Shoring Tower TST60

TECON Shoring Tower TST60 is the fast assembly and cost-effective supporting frame system in formwork construction, especially developed for high shoring and heavy load projects, so it's widely used in bridges, subways, buildings and other civil engineering projects.

The basic sizes of supporting frame are from 1.2*1.1 m to 1.5*1.6m, all heights can be incrementally realized with those frame sizes, as well as screw jacks. Those frames are tightly connected with each other by diagonal bracing vertically and horizontally.

Features of Shoring Tower TST60

Fast and user friendly in assembly with very few elements

High load-bearing capacity up to 60 KN per leg even considered 2.5 times safety factor

Adapt various shoring requirements by only 2 frame heights and adjustable jacks

Easily transfer to Stairs Tower by adding additional accessories

Specification of Shoring Tower TST60

For loads up to 60kN per leg, Q345 for vertical tube, main frame size from 1.20*1.10m, 1.20*1.60m, 1.50*1.10m to 1.50*1.60m

Hot dip galvanized surface treatment for main frame offers more than 8 years service time

Screw jack foot and screw jack head provides heights adjustment up to 500mm extensions at each end

Reinforced by diagonal braces vertically and horizontally

Main shoring tower sizes

Basic dimensions under the slab tables: 1.50 m x 1.20 m up to 1.50 m x 3.00 m

Basic dimension of shoring tower: 1.00 m x 1.20 m

Basic dimension of stair tower: 1.50 m x 3.00 m

Work as shoring for TECON Slab table formwork by adding anti-falling lock

Efficiently and easily moved as whole units even slab tables with tower crane lift or trolley
