50kV 60nF Capacitor, High voltage capacitor 0.06uF 50kV, HV pulse capacitor 50000V 0.06MFD
- Shanghai China
- T/T L/C PayPal
- 1 days
You May Like
-
50kV 50nF Capacitor, High voltage capacitor 0.05uF 50kV, HV pulse capacitor 50000V 0.05MFD
-
50kV 22nF Capacitor, High voltage capacitor 0.022uF 50kV, HV pulse capacitor 50000V 0.022MFD
-
50kV 10nF Capacitor, High voltage capacitor 0.01uF 50kV, HV pulse capacitor 50000V 0.01MFD
-
16V 58F Ultracapacitor Module, Capacitor bank
-
30kv 0.1uF Capacitor, HV Pulse capacitor ,energy storage capacitor 100nF 30000V DC
-
30kV 160nF HV Capacitor , High voltage pulse capacitor,PSE11022 0.16uF 30000Volts DC
Product Details
| Brand Name | Pluspark | Place of Origin | China | |
| Model Number | PSE11045 | Type | Polypropylene Film Capacitor | |
| Application | Power | Rated Voltage | 50kV, 50000VDC | |
| Operating Temperature | -10C to +45C | Package Type | Through Hole | |
| Capacitance | 0.06uF,0.06MFD,60nF |
Product Description

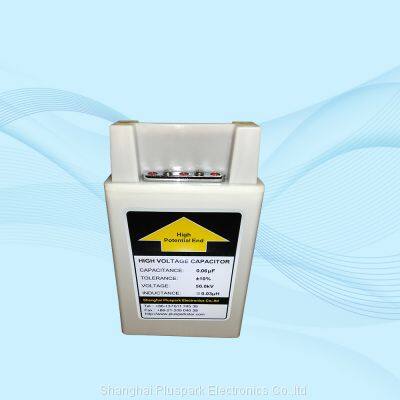

Pluspark High voltage Capacitor 0.06μF 50kV
Professional “Pluspark” brand High voltage pulse capacitor 0.06uF 50kV , Rep-rate≤1Hz, Plastic case ,Low inductance for high voltage,pulse power supply like medical equipment ,X-Ray , laser machine ,Marx generator ,Research and pulse discharge and so on. .Single-ended or double-ended is available for your option at Pluspark company .
Description: HV capacitor 50kV 60nF ,10%
Family | High voltage capacitor |
Capacitance-in μF | 0.06μF, |
-mircofarad | 0.06MFD |
-in nF | 60nF |
Rated Voltage (DC) | 50kVDC |
50000V | |
Capacitance Tolerance | ±5%,±10% |
Part number | PSE11045 |
Alternative P/N.: | 31172 Capacitor |
Case size | 58×152×250mm |
Brand | Pluspark |
Rep-rate | 1Hz (1pps) |
Terminal | Single-ended with rails |
Case | Plastic case |
Features | Low inductance |
Application | High Voltage Pulse power supply, |
Manufacturer/Supplier | Shanghai Pluspark Electronics Co.,Ltd |
Rating of High voltage Pulse capacitor 50kVDC item :
HV capacitor 10nF 50kV ,P/N.: PSE11042
HV Capacitor 22nF 50kV P/N.: PSE11043 In stock .
HV Capacitor 50nF 50Kv ,P/N.: PSE11044,
HV Capacitor 60nF 50kV P/N.: PSE11045, in stock ,
HV capacitor 100nF 50kV P/N.: PSE11046,
HV capacitor 150nF 50kV P/N.: PSE11047, in stock,
HV capacitor 200nF 50kV,P/N.: PSE11048,in stock,
HV capacitor 220nF 50kV P/N.: PSE11049 ,in stock ,
HV capacitor 440nF 50kV P/N.: PSE11050
Note : all our clients to enjoy seven days of no reason to return the same superrme service ,
each client can shop with confidence at shanghai Pluspark company .
Contac pluspark sales for the latest price and stock information:
