50kV 100nF Capacitor, High voltage capacitor 0.1uF 50kV, HV pulse capacitor 50000V 0.1MFD
- Shanghai China
- T/T L/C PayPal
- 15 days
You May Like
-
50kV 60nF Capacitor, High voltage capacitor 0.06uF 50kV, HV pulse capacitor 50000V 0.06MFD
-
50kV 50nF Capacitor, High voltage capacitor 0.05uF 50kV, HV pulse capacitor 50000V 0.05MFD
-
50kV 22nF Capacitor, High voltage capacitor 0.022uF 50kV, HV pulse capacitor 50000V 0.022MFD
-
50kV 10nF Capacitor, High voltage capacitor 0.01uF 50kV, HV pulse capacitor 50000V 0.01MFD
-
16V 58F Ultracapacitor Module, Capacitor bank
-
30kv 0.1uF Capacitor, HV Pulse capacitor ,energy storage capacitor 100nF 30000V DC
Product Details
| Brand Name | Pluspark | Place of Origin | China | |
| Model Number | PSE11046 | Type | Polypropylene Film Capacitor | |
| Application | Power | Rated Voltage | 50kV, 50000VDC | |
| Operating Temperature | -10C to +45C | Package Type | Through Hole | |
| Capacitance | 0.1uF,0.1MFD,100nF |
Product Description

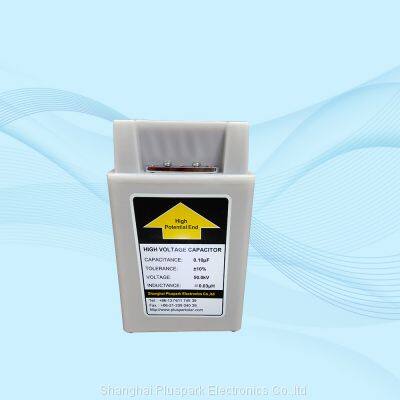

Pluspark High voltage Capacitor 0.10μF 50kV
Professional “Pluspark” brand High voltage pulse capacitor 0.1uF 50kV , Rep-rate≤1Hz, Plastic case ,Low inductance for high voltage,pulse power supply like medical equipment ,X-Ray , laser machine ,Marx generator ,Research and pulse discharge and so on. .Single-ended or double-ended is available for your option at Pluspark company .
Description: HV capacitor 50kV 100nF ,10%
Family | High voltage capacitor |
Capacitance-in μF | 0.10μF, |
-mircofarad | 0.10MFD |
-in nF | 100nF |
Rated Voltage (DC) | 50kVDC |
50000V | |
Capacitance Tolerance | ±5%,±10% |
Part number | PSE11046 |
Alternative P/N.: | 31173 Capacitor |
Case size | 58×152×250mm |
Brand | Pluspark |
Rep-rate | 1Hz (1pps) |
Terminal | Single-ended with rails |
Case | Plastic case |
Features | Low inductance |
Application | High Voltage Pulse power supply, |
Manufacturer/Supplier | Shanghai Pluspark Electronics Co.,Ltd |
Rating of High voltage Pulse capacitor 50000VDC item :
10nF 50000V capacitor ,P/N.: PSE11042
22nF 50000V capacitor, P/N.:PSE11043
50nF 50000V capacitor ,P/N.: PSE11044,
60nF 50000V capacitor ,P/N.: PSE11045, in stock ,
100nF 50000V capacitor ,P/N.: PSE11046,
150nF 50000V cacitor P/N.: PSE11047, in stock,
200nF 50000V capacitor,P/N.: PSE11048,in stock,
220nF 50000V Capacitor P/N.: PSE11049 ,in stock ,
440nF 50000V capacitor P/N.: PSE11050
