Home > Products > Turntable Bearing > Double Row Four Point Contact Ball Slewing Bearing With Teeth 4548.6x3970x187mm for Heavy Duty Industry Machine
Double Row Four Point Contact Ball Slewing Bearing With Teeth 4548.6x3970x187mm for Heavy Duty Industry Machine
- SHANGHAI
- T/T
- 30 days
You May Like
-
Double Row Ball Slewing/turntable Bearing 5014 With Size 1143*880*105mm
-
71769/850Y Four Point Contact Ball Slewing Bearig Used for Heap Leach Equipment 1120x850x85mm
-
635x425.45x139.7 mm Swivel Bearing Without Gear,used for Radial Stacker Front Track Equipment.
-
Slewing Ball Bearing E750.20.00.B With Size 742.3x572x56mm With External Teeth
-
Slewing Ball Bearing E.1200.20.00.C 1198.4x984x56mm for Mobile Crane Machine
-
Four Point Contact Ball Slewing Bearing E787/760G2,760x950x80mm,used for Radial Stacker Front Track Equipment.
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | 4548.6x3970x187mm | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 4548.6, | |
| Bore Size | 3970, | Gear Options | Nongeared |
Product Description

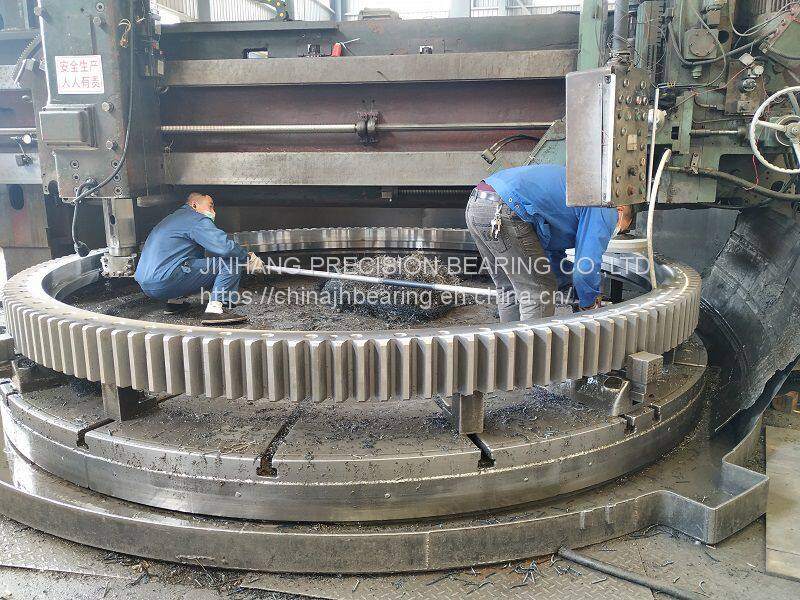

Double row four point contact ball slewing bearing with teeth 4548.6x3970x187mm for heavy duty industry machine
The slewing bearing with teeth 4548.6x3970x187mm belongs to over size bearing,It has two row raceway to running,The bearing can support high static loads with simple structure. They are mainly used in situations with variational load position and direction and continuously rotating. Main applications of this kind of bearings are desk hoisting,mining and material handling.
The slewing bearing 4548.6x3970x187mm technology data as following:
Name | Four point contact ball slewing bearing |
Type | JHB-001 |
Boundary | 4548.6x3970x187mm |
Outside dia | 4548.6 mm |
Inner dia | 3970 mm |
height | 187 mm |
Teeth | With external teeth |
Module | M:20 |
No of teeth | Z: 220 |
modification coefficient | X:0.5 |
Surface treatment | Grinding surface |
material | 42CrMo |
Delivery time | 45 days after getting the PO |
Lubrication | Grease Number 2 |
Oil hole | available |
Seal | Double seal |
Clearance | Axial clearance |
sample | available |
