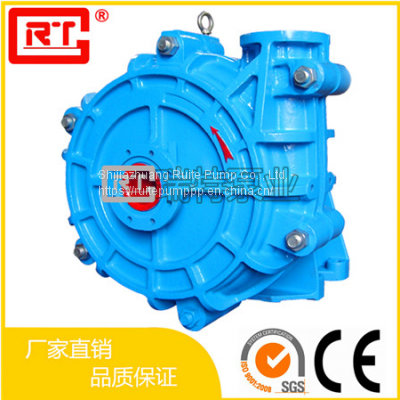

3 / 2d-hh Slurry Pump Slurry Pump Manufacturer

3 / 2d-hh slurry pump belongs to centrifugal, cantilever, horizontal high head wear-resistant slurry pump.

The basic parameters are as follows:

Flow (q): 68.4-136.8 m3 / h

Head (H): 25-87m

Speed (n): 850-1400

Maximum efficiency: 47%

Maximum shaft power: 48.2

Maximum allowable power (kw): 60kW

NPSH R: 3-7.5

Weight: 750KG

Overall dimension: 986 * 768 * 698 (mm)

Suction diameter: 76mm

Discharge diameter: 51mm

Impeller diameter: 457mm

Number of blades: 5

The applicable flow range of 3 / 2d-hh slurry pump is as follows:

1. The range of medium concentration and medium abrasive slurry flow is 40-80%

2. For low concentration and low abrasivity slurries, the flow rate range is 40-100%

3. The flow corresponding to the highest efficiency point at a certain speed is 100%

3 / 2d-hh slurry pump belongs to HH series slurry pump in fractional series. This series slurry pump is improved and produced by our technicians according to the research and design of slurry pump. It has been strictly inspected before leaving the factory, and its quality is absolutely reliable.

Shijiazhuang Ruite pump also has casting, heat treatment, machining, assembly and other professional production workshops, with large output, high quality and complete models. Users can visit our factory at any time. We sincerely welcome you!
