Wholesale High Speed 100mm Winding Motor Stator Parts Lamination for dc Motors

Brand Name: Volcano Electric

Model Type: VOL-WSRS100

Type: Brushless DC Motor

Outer diameter of Stator: 90mm

Inner diameter of Stator: 44.6mm

Tooth width: 6.5mm

Number of slots: 12

Poles: 8 poles or 10 poles

Multi strands: 1pp, 2pp, 4pp

Power: 375W~2000W

Speed: 500~6000RPM

Insulation Class: Class F

Wire: 100% Copper Coil

Certification: CE,UL,ROHS

Place of Origin: Ningbo, Zhejiang, China (Mainland)

Standard: IEC or Custom

Application: servo motor, robotics, brushless dc motor, electrical vehicle, brushless motor design

Product Description

In relation with the item VOL-WSRS100, when you produce the motor between power 375w to 2000w, and the speed is between 500 to 6000rpm,

it will be your best option for you. Because we supply many parts of this item to some servo motor and robotics company, also IEC standard will be

much more easier to change something very fast.


Regarding the coil winding, we always use the single tooth mould wind coiling machine to finish the prodution. We could do the design and details as

you request, and we always do them better, esp. for this special mode VOL-WSRS100.

We insist that quality and honesty come first. We will support you with our technical and qualified products.

Multi strands showing

Motor construction

Brushless dc motor also have the stator and rotor same like the common dc motor, but it cancel the brushes. The stator used by silicon steel sheet

and the rotor make by permanent magnet. It can be 2 poles to 8 poles just as you wish. Different with the brushes dc motor, the commutation of the

BLDC motor is electronically controlled. We will use the hall sensors to do it. Also can use the magnetic encoder.

Specifications

Detailed Images

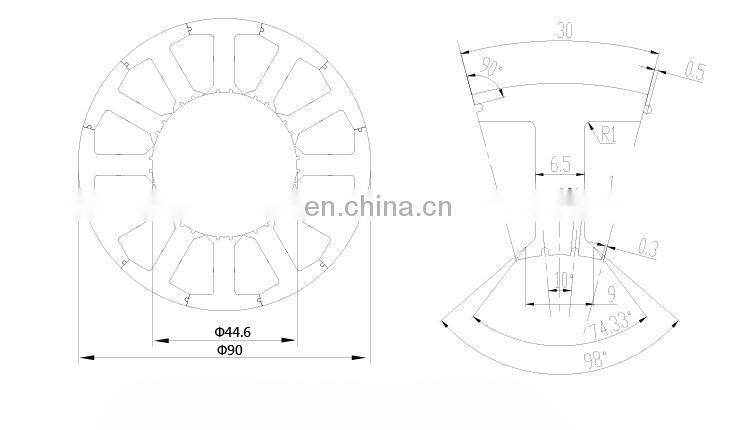

THE PICTURE SHOWS THE DIMENSIONAL STATOR

*WE CAN MAKE ACCORDING TO YOUR REQUIRMENT

Winding stator and rotor list

Advantage of our single tooth winding stator and rotor

l Reduce eddy current

l Lower noise

l Cools the stator core

l Reduces hysteresis loss

l Higher coil filling achievable. We can control 90% for High voltage, while 80% for low voltage

l Various stamping tools available to save initial design

l Large material savings compared to one piece stator

l Various grade of magnet

l Better magnetic properties, low demagnetization rate, and high magnetic consistence.

l Multi-poles ring magnet: more stable & stronger magnetic flux to lower motor space and improve performance and lower spacer.

 Designed experiences for winding stator and rotor,

For customized DC Motors, please contact our technician. Ordinary, we have to know the following information to get a professional proposal:

Ø Brushed or Brushless Customer preference

Ø Output power (W) Horsepower/watts/torque rated at full load speed

Ø Voltage (V) i.e 12v DC …….. 220v AC

Ø Motor speed (RPM ) Revolutions per minute of the shaft at full load Voltage

Ø Application e.g. traction, air condition, etc.

Ø Duty  Most motors are rated continuous. Some applications however may use motors designed for intermittent duty

Ø Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing

Ø Controller function e.g. forward/reverse, variable speed,

acceleration profile, etc.

VIEW MORE PLS CONTACT US >>>
