Hot Selling NYRY 0.6/1kv PVC Insulated Galvanized Round Steel Wire Armored Power Cable 4x150mm2

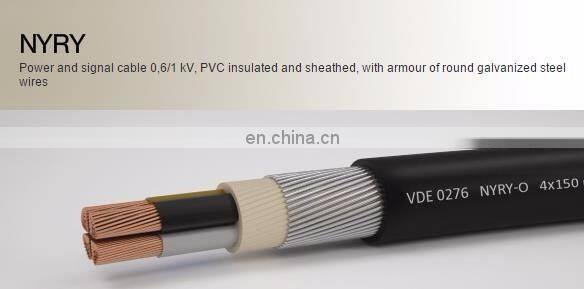

NYRY 0.6/1kv PVC Insulated Galvanized Round Steel Wire Amored Power Cable 4x150mm2

Application

Distribution and signal power cable for static application, mostly in ground, but also in water, within and outside facilities, in cable canals, in concrete. Used in electric power plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar. Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.

Standards

HRN HD 603 S1, IEC 60502-1, DIN VDE 0276 part 603
cables with 6 and more conductors: HRN HD 627 S1, DIN VDE 0276-627

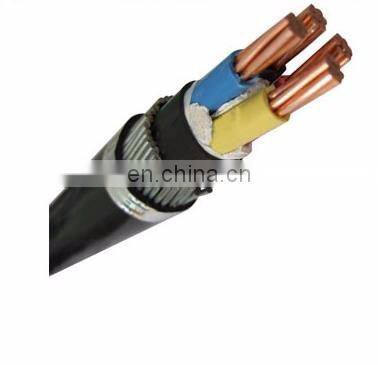

Construction

Conductor: Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228                         / DIN VDE 0295
        class 1: solid, round (RE)

        class 2: multi wire stranded, round (RM) or sector (SM),                           multi  wire exceeding 50 mm² are compacted

  Insulation: PVC compound, concentrically stranded cores,                           colour marked acc. to HRN HD 308 S2 / VDE                                 0293-308, with or without protective yellow-                                   green conductor
            Filler: spouted elastomer or plastomer compound or                             wrapped thermoplastic tapes
       Armour: a layer of thin round galvanized steel wires
         Sheath: PVC compound

                Technical data

                  Temperature range:
                     during installation:-5 °C up to +50 °C
                             fixed installed: -30 °C up to +70 °C
     at short circuit of max. 5 s: up to 160 °C
                         Nominal voltage: Uο/U = 0,6/1 kV
                                  Test voltage: 3,5 kV
         Maximal tensile strength: 50 N/mm²
                         Behaviour in fire: IEC 60332-1

Minimal inner bending radius:
                                     single core: 15D
                                       multi core: 12D

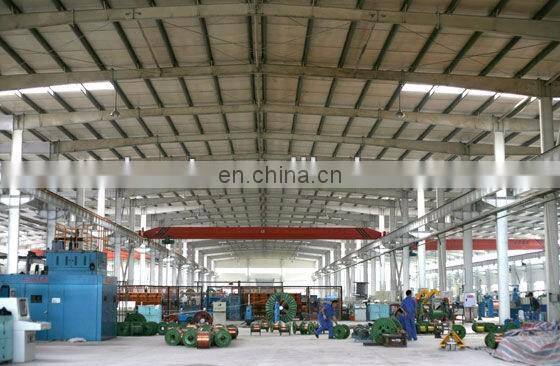

Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection. Every month we have 30containers exported and have the long term and stable customers.
