Home > Products > Angular Contact Ball Bearings > ZKLN1034-2RS 10*34*20mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing

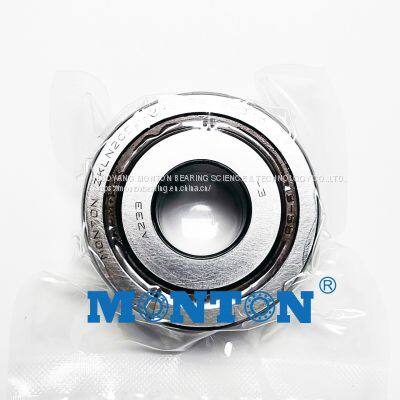

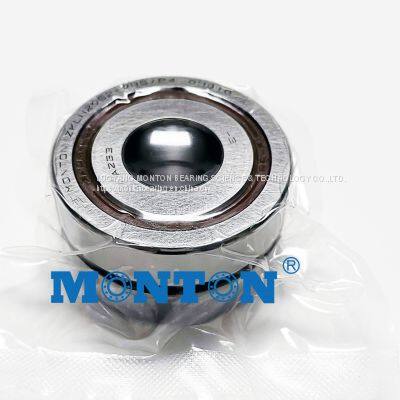

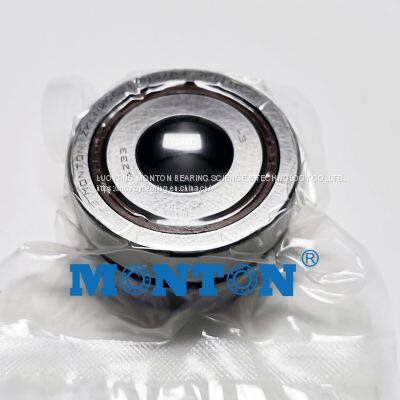

ZKLN1034-2RS 10*34*20mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
US$ 10 - 1000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 35 days
You May Like
-
ZKLN1034-2Z 10*34*20mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
-
ZKLN1242-2RS 12*42*25mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
-
ZKLN1242-2Z 12*42*25mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
-
ZKLN1545-2RS 15*45*25mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
-
ZKLN1545-2Z 15*45*25mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
-
ZKLN1747-2RS 17*47*25mm Angular Contact Bearing High Speed High Precision Ceramic Spindle Ball Bearing
Product Details
| Brand Name | MONTON | Model Number | ZKLN1034-2RS | |
| Outside Diameter | 10, 1000 | Bore Size | 10, 1000 |
Product Description
ZKLN1034-2RS 10*34*20mm Angular contact bearing high speed high
precision ceramic spindle ball bearing
| Designation | Dimensions | Mounting dimensions | Basic load ratings axial | Recommended precision locknut | Required locknut force3) axial N | Mass m = kg | |||||||||
| d | D –0,010 | B –0,25 | d1 | r min. | r1 min. | Da max. | da min. | dyn. Ca N | stat. C0a N | For radial locking | For axial locking | Tightening torque4) MA Nm | |||
| ZKLN1034-2RS | 10 | 34 | 20 | 21 | 0.3 | 0.6 | 28 | 14 | 14700 | 18800 | ZM10 | – | 6 | 4891 | 0.1 |
Product Description
ZKLF1255-2RS-XL Axial Angular Contact Bearing
These bearings are designed for the highly dynamic operating conditions in screw drives that require high accuracy, high load carrying capacity, high rigidity, low friction and maintenance-free or low-maintenance.
The bearings can support both radial forces and high axial forces due to the 60??? contact angle.
The ZKLF bearing range are designed to be screw mounted directly on the adjacent construction or in a radial locating bore.
Double direction
Lip seals on both sides
