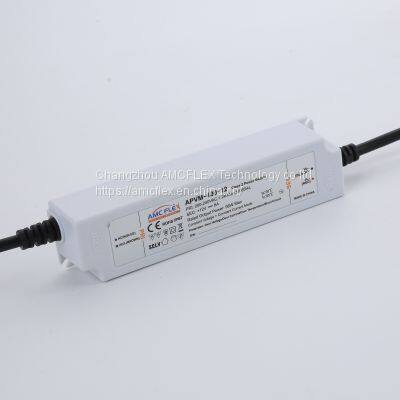

100W 700mA 72-144V Constant Current Led Driver IP67 Waterproof Led Trafos
- shanghai
- T/T L/C D/P D/A PayPal Other
- 20 days
You May Like
-
100W 1050mA 48-96V Constant Current Led Driver IP67 Waterproof Led Trafos
-
100W 1400mA 36-72V Constant Current Led Driver IP67 Waterproof Led Trafos
-
100W 1750mA 28-56V Constant Current Led Driver IP67 Waterproof Led Trafos
-
100W 2100mA 24-48V Constant Current Led Driver IP67 Waterproof Led Trafos
-
100W 2800mA 18-36V Constant Current Led Driver IP67 Waterproof Led Trafos
-
100W 3500mA 14-27V Constant Current Led Driver IP67 Waterproof Led Trafos
Product Details
| Brand Name | AMCFLEX | Place of Origin | China | |
| Model Number | APVM-100C-700 | Output Power | Other, 100W | |
| Output Type | Single | Output Current | 700mA | |
| Output Frequency | 50/60hz | Output Voltage | 72V-144V | |
| Input Voltage | 220V |
Product Description
Model: APVM-100C-700
Constant voltage LED Power Supply.
Input Voltage: 200-240VAC 47-63Hz 1.2A max
Output Voltage: 72V-144V
Output Current: 700mA
Output Rated Power: 100W max
Inrush Current: 70 Amps max. at 230VAC/50Hz,full load
No Load Power Consumption: ＜0.5W
TC Max: 80 ℃, Ta:50 ℃
Protections: Short Circuit /Over Current /Over Voltage
/over temperature protection
Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery
Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery
Over Current Protection (OCP): Yes,hiccup mode, auto-recovery
Working TEMP.: -30°C to -70°C
Working Humidity: 10%-90% RH non-condensing
StorageTEMP.,Humidity and altitude: -40℃ ~+70°C ambient
temperature and a 5% to 95% relative humidity range throughout
an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: CE CB SELV ROHS
MTBF: 100Khours minimum at full load at 25℃ ambient
Dimension: 162 x 43x 32mm (L x W x H)
Packing: 0.44Kg; 32pcs/15.1Kg/0.26CBM
Model NO | Input Voltage | Output Voltage | Output current | Output Power | Efficiency | Dimension/mm |
APVM-100C-700 | 200-240VAC | 72-144VDC | 700mA | 100W | 89% | 162x43x32 |
APVM-100C-1050 | 200-240VAC | 48-96VDC | 1050mA | 100W | 89% | 162x43x32 |
APVM-100C-1400 | 200-240VAC | 36-72VDC | 1400mA | 100W | 89% | 162x43x32 |
APVM-100C-1750 | 200-240VAC | 28-57VDC | 1750mA | 98W | 89% | 162x43x32 |
APVM-100C-2100 | 200-240VAC | 24-48VDC | 2100mA | 100W | 89% | 162x43x32 |
APVM-100C-2800 | 200-240VAC | 18-36VDC | 2800mA | 100W | 89% | 162x43x32 |
APVM-100C-3500 | 200-240VAC | 14-27VDC | 3500mA | 96W | 89% | 162x43x32 |
