Home > Products > lan cable > High Standard Network Cat5e Cable UTP FTP Cable 4pr 24AWG Cat 5 LAN Cable

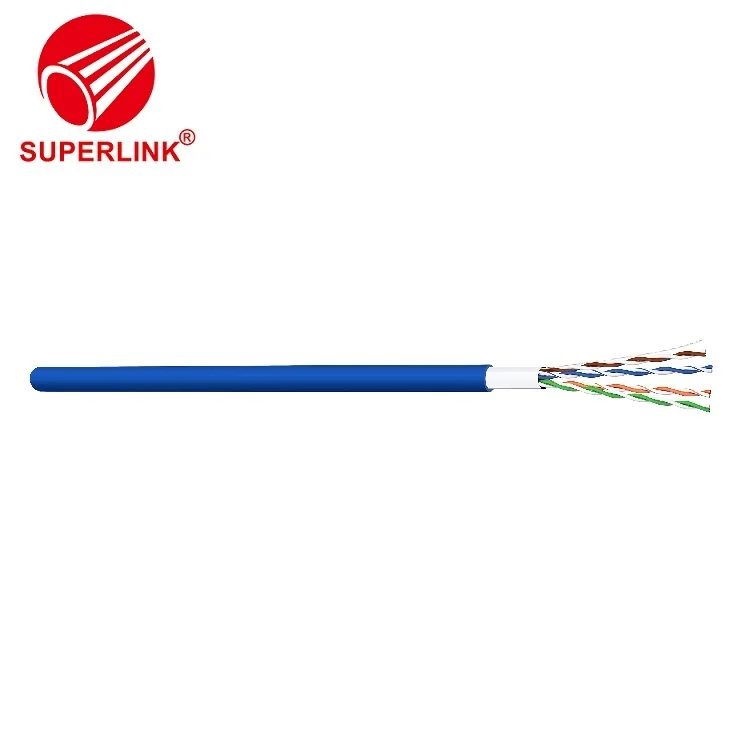

High Standard Network Cat5e Cable UTP FTP Cable 4pr 24AWG Cat 5 LAN Cable

FOB Price

US$ 0.05 - 1.02 / Kilometer

30 Kilometers(Min. Order)

Port ningbo
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

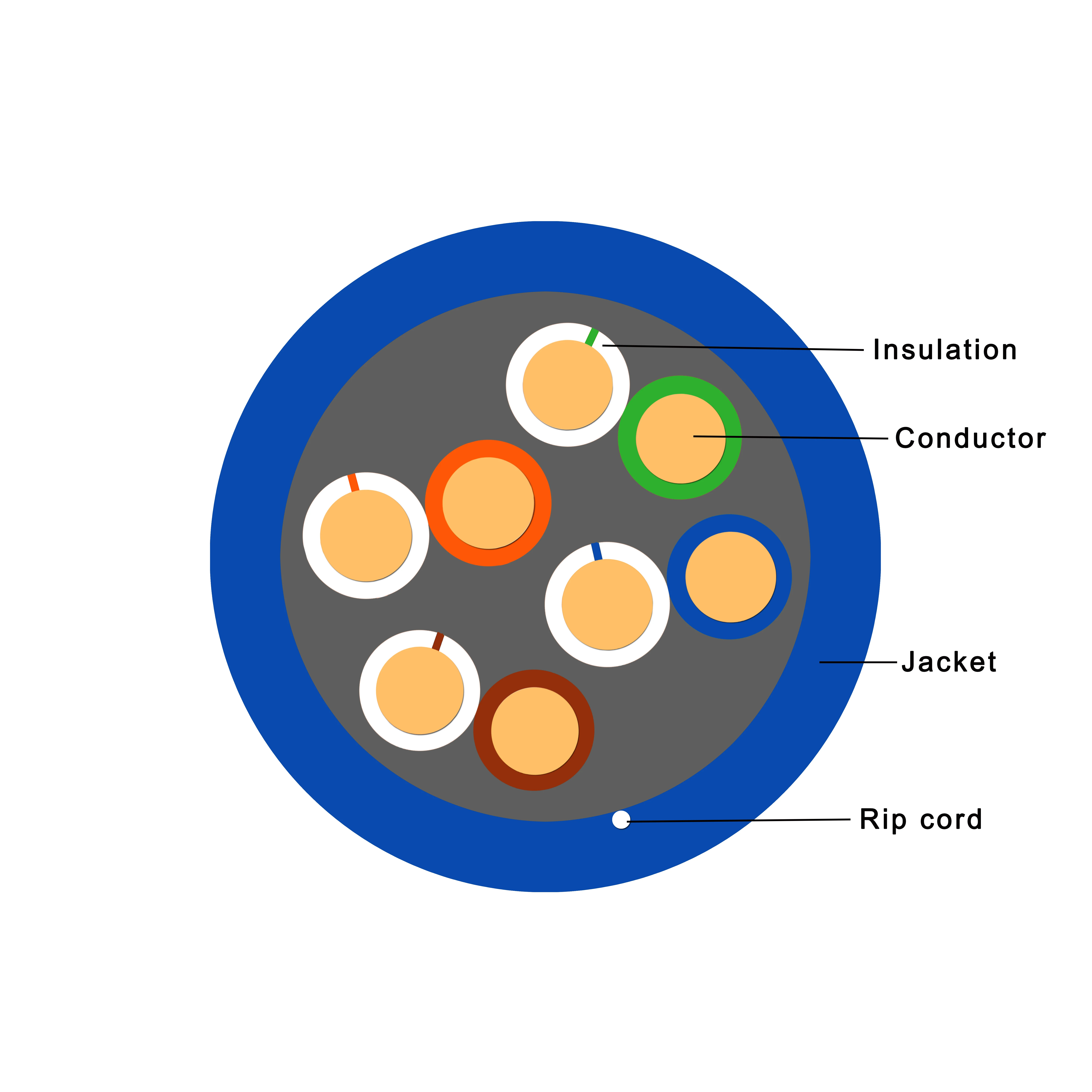

Brand Name	superlink	Place of Origin	China
Application	Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.	Jacket	PVC
Conductor Material	Copper	Number of Conductors	8
Insulation Material	PVC

Product Description

HANYANG (HANGZHOU) CABLE CO.,Ltd. established in 2006, we are the member of the IWMA(INTERNATIONAL WIRE AND MACHINERY ASSOCIATION) specializes in the production of cable, such as coaxial cable, network cable, patch cord, speaker cable, alarm cable,control cable, power cable, fiber cable, fiber patch cord, VGA, HDHI，RJ45 Connector etc. which are highly appreciated by oversea users . We focus on providing high quality OEM/ODM products and services to clients all over the world. Belong to SUPERLINK Holding Limited. To maintain our high quality standards, we use HP network analyzer those high-tech equipments, meanwhile upgrade the equipments and quality control procedures annually. Our products are produced in accordance with CE, ROHS, REACH and have already passed UL, ETL, CPR, ISO9001,ISO14001. We will response to clients quickly since we have a strong youthful, energetic and dynamic team.

Product Description

High standard Network Cat5e Cable UTP FTP Cable 4pr 24AWG Cat 5 LAN Cable

Application
Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.
 Apply to the current high bandwidth applications and intelligent solutions.

Electrical Performance(20℃)

?Impedance: 1-100MHZ 100±15 (Ohms） ?DC Resistance: 9.5(Ohms/100m) ?Dielectric Strength: DC 2500V 2S
?Rated Temperature: 75°C ?Insulation Resistance: ＞5000MΩ*KM ?Pair-to-Ground Capacitance Unbalance: 330(pF/100M)

Electrical Characteristics (HF) At 20℃
Frequency	RL (min)	IL (max)	DOP (max)	DelaySkew (max)	NEXT (min)	PSNEXT (min)	ACR-F (min)	PSACR-F (min)
(MH)z	(dB)	(dB/100m)	(ns/100m)	(ns/100m)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	20.0	2.2	570	45	65	62	61	61
4	23.0	4.2	552	45	56	53	48	48
10	25.0	6.5	545	45	50	47	41	41
16	25.0	8.4	543	45	47	44	36	36
20	25.0	9.3	542	45	45	42	34	34
31.25	23.6	11.6	540	45	42	39	31	31
62.5	21.5	17.0	538	45	38	35	25	25
100	20.1	22.0	537	45	35	32	21	21
Note:The above transmission performance for the 100M, 20±2°C under the conditions tested.

Specification

Place of Origin	China
Brand Name	SUPERLINK
Model Number	Network cable
Application	communication, CCTV, CATV
Product name	Lan cable
Type	Cat5e/cat6/cat7
Conductor	Cu/CCA
Jacket	PVC/PE/LSZH
Certification	CE/ROHS/ISO9001/FLUKE
Operating temperature	-20°C up to +60°C
Length	100M/305M
Color	Optional

Packing & Delivery

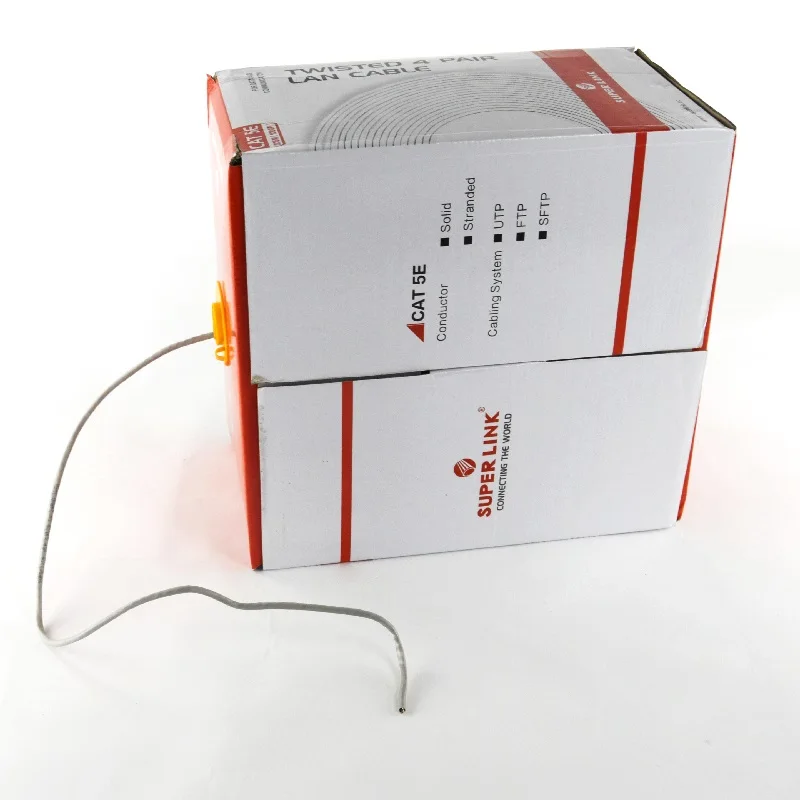

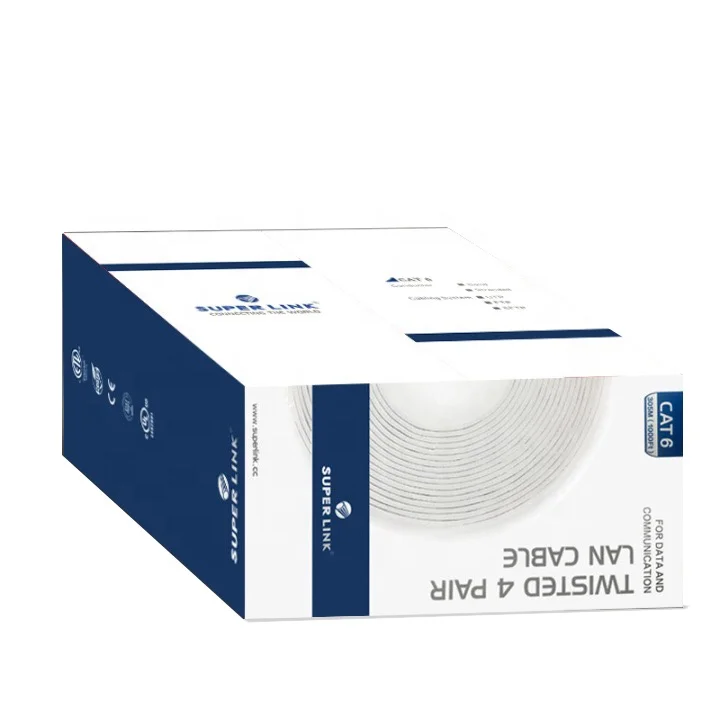

100M/305M/Box + Carton

Testing Equipments

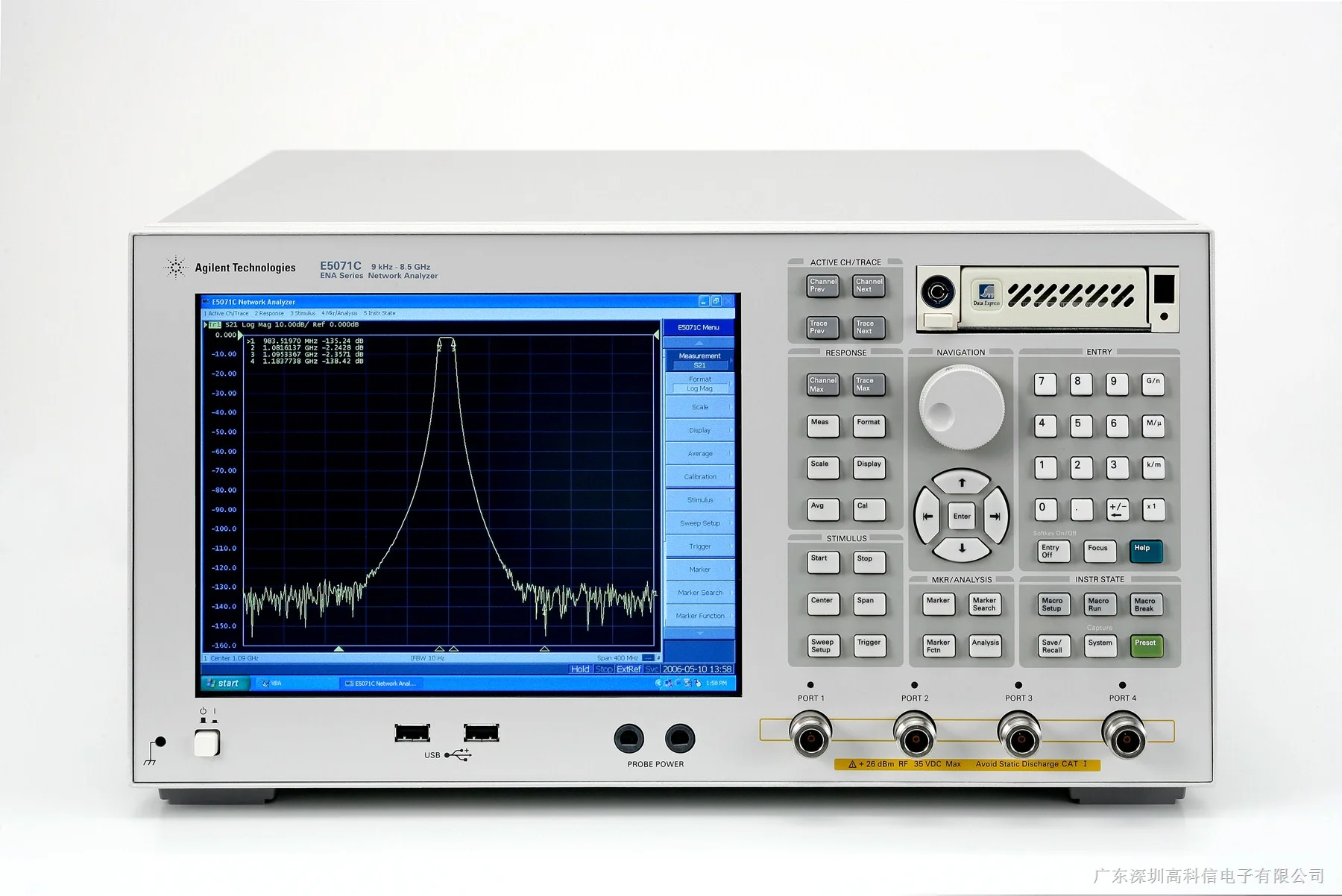

Network Analyzer

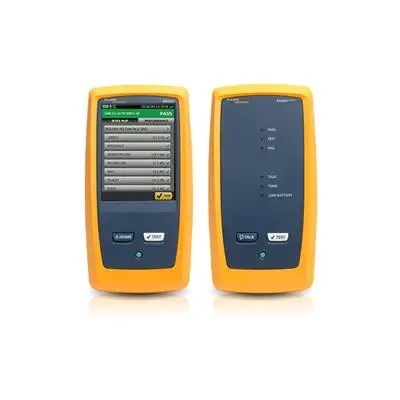

Fluke

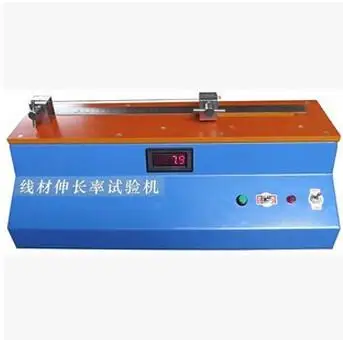

Wire Elongation Tester

Eccentricity Tester

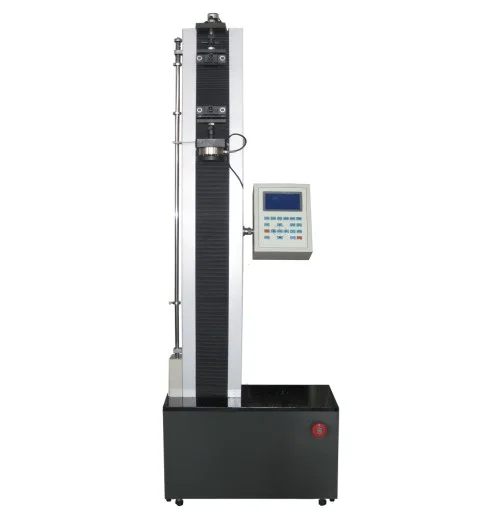

Tensile Strength Test

Vertical Burning Tester

FAQ

Q1: Are you a cable and wire manufacturer? --Yes, we are a professional wire and cable manufacturer.  Q2: Can you offer a discount on cables? --Sure, the price is negotiable. It can be changed according to your quantity or package. When you are sending an inquiry, please let us know the quantity you want. Q3: Can you offer  samples? --Of course, We can offer the sample ,but you need pay for the sample and freight firstly.We will return the free after you make an order. Q4: What about your MOQ? --Usually, our MOQ is 30000 Meters. Also, It depends on what types of cables you need. Q5: Do you accept customize cables? --Yes, you can send your own design or sample, we can open new mold and product any cables for you. Q6: How long is your delivery time? --It depends on order quantities. Usually, we can deliver goods within 7 days for small orders.   For more quantity order, let’s confirm when you place official order.
