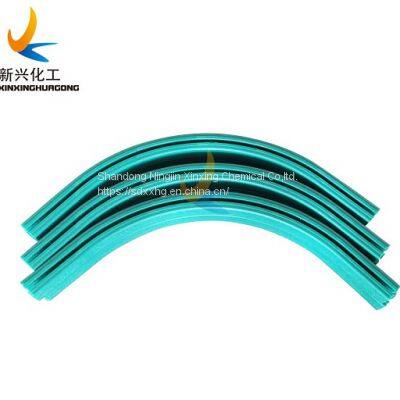

uhmwpe guide track rail for conveyor
- Qingdao Port in China
- T/T L/C
You May Like
Product Details
| Brand Name | XINXING | Place of Origin | China | |
| Model Number | SDXXHG2021032254 | Material | PE | |
| Size | per client's drawings | Thickness | 10mm 12mm 15mm |
Product Description
Product Description
Guide rail was designed in response to demands from the packaging and material handling industries that require exceptional frictional and resistant properties. And it provides effective protection for expensive conveyor systems, especially in wet and corrosive environments.
We offer a wide variety of custom designed UHMW-PE chain guide that meet client specifications. Each one of them is made-to-order utilizing Xinxing’s top of the line fabrication equipments. Those guide rails provide high abrasion, low coefficient of friction, high impact of resistance, and excellent chemical resistance. Their unique characteristics help conveying systems operate with minimal wear and extended life.
Key properties UHMWPE sheet:
? Extremely high impact strength
? Excellent wear and abrasion resistance
? Optimal sliding properties
? Dimensional stability
? Energy absorption capacity at high loading rates
? Resistance against fatigue
? Water repellent
? Good chemical resistance
? electrical and dielectric properties
? Physiologically harmless
Technical parameters:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Our Products Type:
PE 300,PE 500 ,PE 1000,PE 2000
UHMWPE 3million—-9million molecule weightHigh Density Polyethylene TICONA is also available
UHMWPE UHMWPE Plastic chain guide rail / uhmwpe corner track Color:Black,White,Blue,Red,Yellow,Green and other customer color
Our Products Range:
Track Guide Rail guide track rail Conveyor Chain track rail guide UHMW plastic Conveyor Chain Conveyor guard rail chain Plastic chain conveyor slide rail uhmwpe guide rail chain guide rail hdpe guide rail corner track
Applications:
1. Chain guides2. Wear curves 3. Bearing surface 4. Belt guides5. Textile Industry6. Chemical Industry7. Food Processing Industry and beverage light industry 8. Paper Industry9. Farm Implement10. Mining & Metals Processing Industries11. Transportation12.Sport and amusement industry13. Medicine Field
SIZE
2"W X 0.5"H X 120"L White
TYPE-T GUIDE
TYPE-TD DUPLEX GUIDE
TYPE-T TRIPLEX GUIDE
TYPE-CT MOUNTED GUIDE
TYPE-CT DUPLEX MOUNTED GUIDE
TYPE-CT TRIPLEX MOUNTED GUIDE
TYPE-TU GUIDE
TYPE-CTU GUIDE
TYPE-CTS GUIDE
TYPE-TS GUIDE
TYPE-U GUIDE
TYPE-CU GUIDE
TYPE-K GUIDE
TYPE-CK GUIDE
TYPE-CKG GUIDE
TYPE-CKG 14H GUIDE
TYPE-CKG 15V GUIDE
TYPE-ETA GUIDE
CHANNEL STYLE CHAIN GUIDE
RAISED TRACK STYLE CHAIN GUIDE
CHANNEL WITH RAISED TRACK STYLE CHAIN GUIDE
STEEL MOUNTING CHANNELS
T-HEAD BOLTS FOR MOUNTING CHANNELS
COLOR
green, white, black
other colors also available
APPLICATIONS
1. Chain guides2. Wear curves 3. Bearing surface 4. Belt guides5. Textile Industry6. Chemical Industry7. Food Processing Industry and beverage light industry 8. Paper Industry9. Farm Implement10. Mining & Metals Processing Industries11. Transportation12.Sport and amusement industry13. Medicine Field
