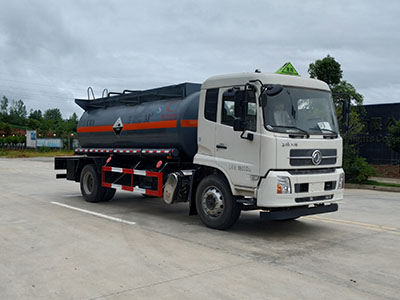

Mfr Oem Liquid Chemical Tanker Trucks for Sale

Usage：transporting different kinds of liquid chemicals.

Material ：high quality carbon steel or aluminium alloy.

Volume （M3）：6-13；8-15；12-18；18-25；18-28；20-30；30-45.

Horsepower，Payload and Emission：as request.

Brief Introduction：

The oil tank structure is an ellipsoidal or trapezoidal cylinder body, which is made of high-quality steel

plate or aluminium alloy. The whole tank can be divided into one or multi bins. There are through holes

at the lower end of the middle partition board. There are sub compartments or multi bins welded in the

middle of each bin. The middle part of each bin is welded with a reinforced wave partition board to

reduce the impact of oil in the tank body when the truck is running and improve the oil quality of the

tank rigidity. To prevent the tank from rusting, the surface of the tank is coated with anti-rust paint and

decorative paint. A container indicator is installed in the middle of the side of the tank, which can

directly indicate the volume of the fuel when refilling or extracting oil to/from the tank. (optional) the

opening of the tank is a 500mm diameter hole for maintenance. In order to ensure that the pressure in

the tank is basically the same as the atmospheric pressure when the tank truck is working, a air outletinlet valve is installed on the large cover of the tank.
