Home > Products > Slewing Bearing > VLA 200644 N Slewing Bearing 742.3x534x56mm for Conveyor Booms Equipment
VLA 200644 N Slewing Bearing 742.3x534x56mm for Conveyor Booms Equipment
- SHANGHAI
- T/T
- 30 days
You May Like
-
VLA 200744 N Slewing Bearing 838.1x634x56mm for Large Excavators Equipment
-
VLA 200844 N Slewing Bering SKF Code With Flange 950.1x734x56mm With External Teeth
-
VLA 201094 N Ball Bearing With External Teeth 1198.1x984x56mm
-
Spherical Roller Bearing 21307 E 21307 EK 35x80x21mm for Grinding Mills
-
Spherical Roller Bearing 22208 E 22208 EK 40x80x23mm for Press Rolls
-
Spherical Roller Bearing 22308 E 22308 EK 40x90x33mm for Drying Cylinders
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VLA 200644 N | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 742.3, | |
| Bore Size | 534, | Gear Options | Nongeared |
Product Description

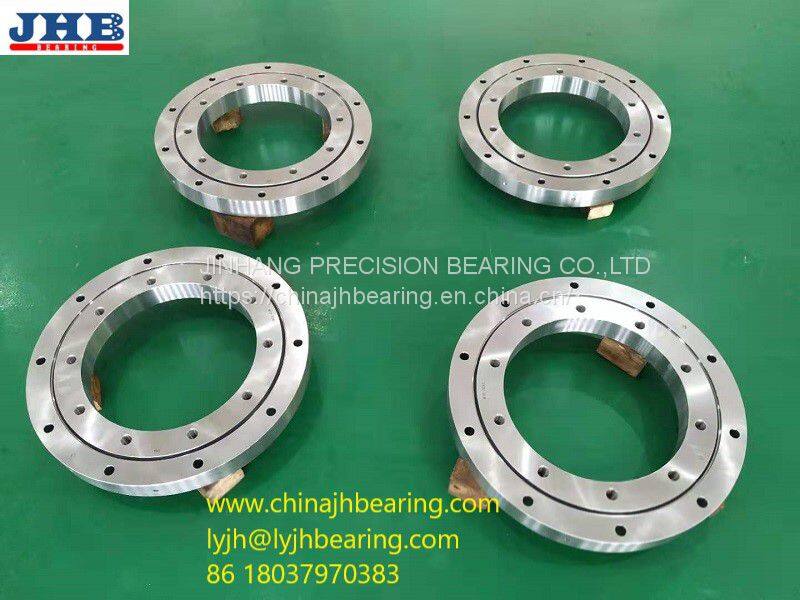

VLA 200644 N Slewing bearing 742.3x534x56mm for conveyor booms equipment
VLA 200644 N bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:742.3mm,Inner diameter:534mm,Height:56mm, It is the light series bearing structure with teeth.
Description | VLA 200644 N slewing ball bearing |
Dimension(ODXIDXH) | 742.3x534x56mm |
Outer diameter(OD) | 742.3 mm |
Inner diameter(ID) | 534 mm |
Width/Height/(H) | 56 mm |
Gear teech d0 | 732MM |
Gear teeth m | 6 |
Gear teeth Z | 122 |
weight | 52kgs |
Material | 42CrMo,42CrMo4V,50Mn |
Rolling | LYC ball |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time | 20-30 days |
Serive | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
