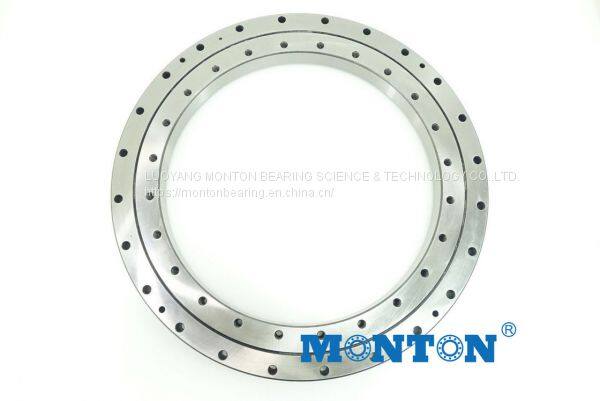

XSU080318 280*355*25.4mm crossed roller bearing Hollow Shaft Harmonic Reducer Laifual Gearbox For Rotary Joint
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 35 days
You May Like
-
XSU080398 360*435*25.4mm crossed roller bearing hollow shaft gearbox harmonic drive gear for stepper motor
-
XSU140414 344*484*56mm crossed roller bearing hollow shaft gearbox harmonic drive gear for stepper motor
-
XSU140544 474*614*56mm crossed roller bearing Harmonic Gearing Arrangement Harmonic Drive
-
XSU140644 574*714*56mm crossed roller bearing Harmonic Gearing Arrangement Harmonic Drive
-
XSU140744 674*814*56mm crossed roller bearing Hollow shaft harmonic drive gearbox assembly robots component set
-
XSU140844 744*914*56mm crossed roller bearing Hollow shaft harmonic drive gearbox assembly robots component set
Product Details
| Brand Name | MONTON | Model Number | XSU080318 | |
| Outside Diameter | 10, 1000 | Bore Size | 10, 1000 |
Product Description
XSU080318 280*355*25.4mm crossed roller bearing Hollow Shaft
Harmonic Reducer Laifual Gearbox For Rotary Joint
| Identification number | Main dimensions | Basic load rating（axial） | Basic load rating（radial） | weight | ||||||||
| inner ring | outer ring | width | Installing hole | Chamfer | φLa | φLi | Ca | C0a | Cr | Cor | Kg | |
| d | D | B | nB | r(min) | KN | KN | KN | KN | ||||
| (mm) | (mm) | (mm) | ||||||||||
| XSU080318 | 280 | 355 | 25.4 | 28 | 1.5 | 340 | 295 | 93 | 465 | 59 | 185 | 6.3 |
XSU crossed roller bearing feature:
Crossed roller bearings are two-row cylindrical rollers that are vertically aligned with each other through a nylon spacer on a 90-degree V-shaped raceway. Therefore, the cross-roller bearing can withstand multiple loads such as radial load, axial load and moment load. . The size of the inner and outer rings is miniaturized, the extremely thin form is a small size close to the limit, and has high rigidity, and the DK crossed roller bearing accuracy can reach P2-P5.
XSU series crossed roller bearing (Integrated Outer/Innner Ring,with Mounting Holes)
XSU series crossed roller bearings: Due to the integral structure of the inner and outer rings, the bearing has high rigidity and has mounting holes. It does not require fixing flanges and bearing seats during installation. It greatly simplifies the installation procedure and does not affect the installation accuracy. It has high rotation precision and Larger torque, and also free to choose the inner ring or outer ring rotation according to the accuracy requirements, with a greater degree of freedom of choice.
XSU crossed roller bearing application:
It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Mainly used in engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, railways and other industries.
