ChinaHome > Products > Hydraulic Filter Element > Supercharger Filter System Filter DPL-40C

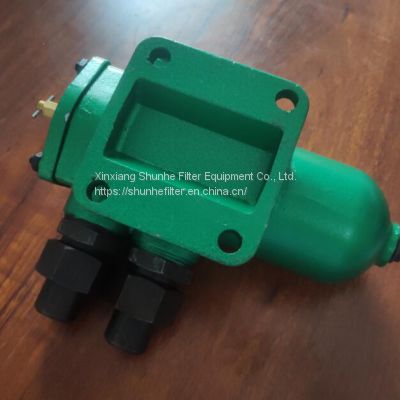

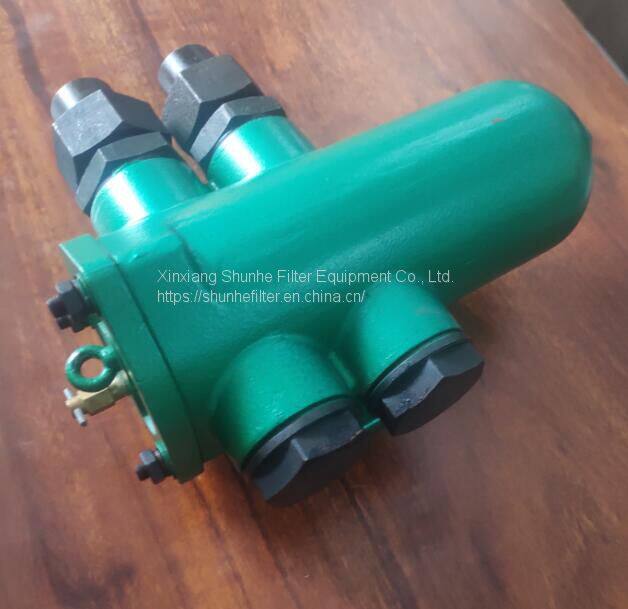

Supercharger Filter System Filter DPL-40C
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | shunhefilter | Place of Origin | China | |
| Model Number | DPL-40C | Material | Other, Wire Mesh | |
| Length | mm | Type | Filter Elements | |
| Usage | Liquid Filter | Filter Rating | 118um | |
| Hole Shape | Round |
Product Description
product information
Model | Dia | Flow rate | Mesh size | |
DPL mesh filter | ID | OD | ||
- | 15 | 2 | 20 | 40 |
DPL25 | 25 | 5 | 30 | 65 |
- | 32 | 8 | ||
DPL40 | 40 | 12 | 45 | 90 |
- | 50 | 20 | 60 | 125 |
DPL65 | 65 | 30 | ||
DPL80 | 80 | 50 | 70 | 155 |
- | - | 80 | ||
- | 125 | 120 |
90 |
175 |
DPL150 | 150 | 180 | ||
DPL200 | 200 | 320 |
Note:
Maximum working temperature is not more than 95℃
The maximum working pressure is not more than 0.8MPa
Filter element cleaning pressure drop is not more than 0.15MPa
According to the user's application, there is a stainless steel shell
DPL mesh filter is suitable for filtering lubricating oil, fuel oil and other lubrication systems of various types of marine and land diesel engines, as well as in petroleum, electric power, chemical and other industries.
The product is reliable in operation, convenient in maintenance, and does not require other power sources. The filter element is a filter made of metal wire mesh, which has the characteristics of high strength, large oil flow capacity, ensuring filtration accuracy, and easy cleaning.
DPL series filters are economical and can filter out impurities in lubricating oil. Therefore, DPL series filters are often used in thin oil station systems such as coal mills and ball mills.
