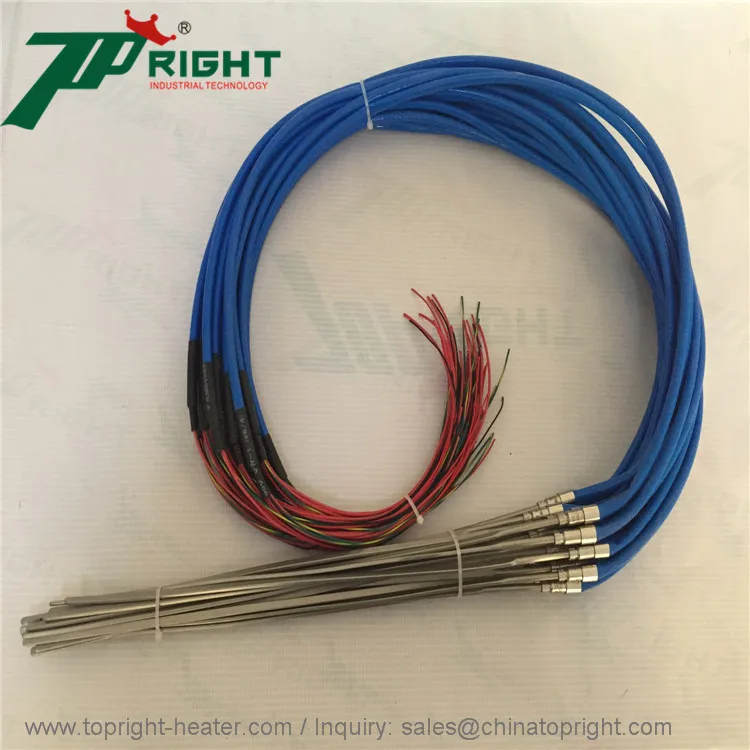

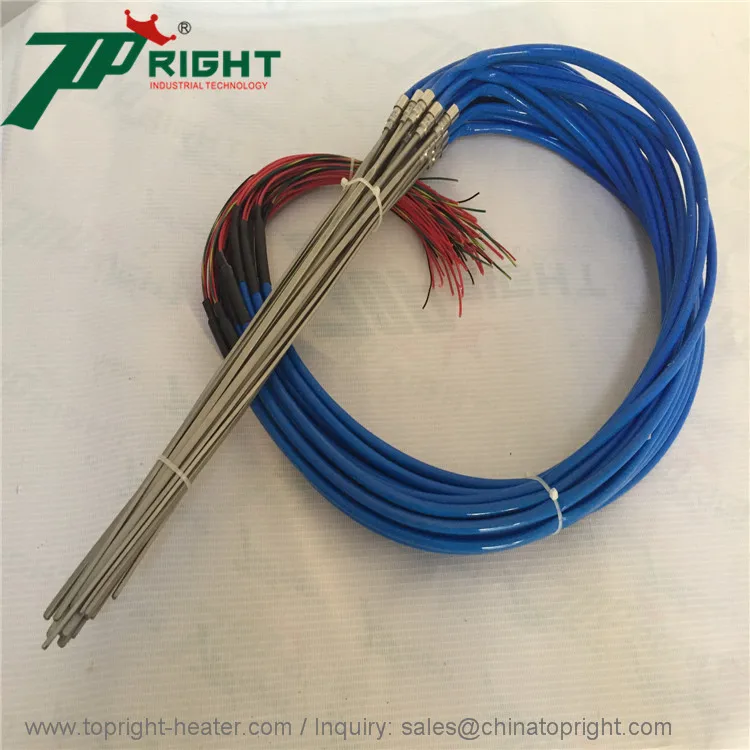

Straight Hot Runner Coil Heater/Coil Heater Heating Element
- T/T Credit Card
You May Like
-
Factory Sale Spring Hot Runner Coil Heaters for Plastic Injection Mold Nozzles,manifold Coil Heaters
-
Wholesale Portable e Nail d Nail Electric Coil Heater 16 mm 20 mm for e Nail Diy, 5 Pins 100W ,accept OEM Heating Coil
-
Spring Coil Hot Runner Heater for Hot Sprue Bushings
-
Coil Hot Runner Heaters And Bushes for Plastic Injection Molds
-
Industrial Hot Runner Heat Element For Heat Press Machine Heater Element
-
4pins Plug Coil Heater for e Nail Diy Quartz E-nail With 14mm 18mm/16mm 20mm Coil
Product Details
| Brand Name | Topright | Place of Origin | Jiangsu, China | |
| Certification | CE | |||
| Warranty | 1 Year, one year | |||
| Weight | 0.2 | Dimension(L*W*H) | Custom Size | |
| Condition | New | Voltage | 220-380V | |
| Power Source | Electric |
Product Description

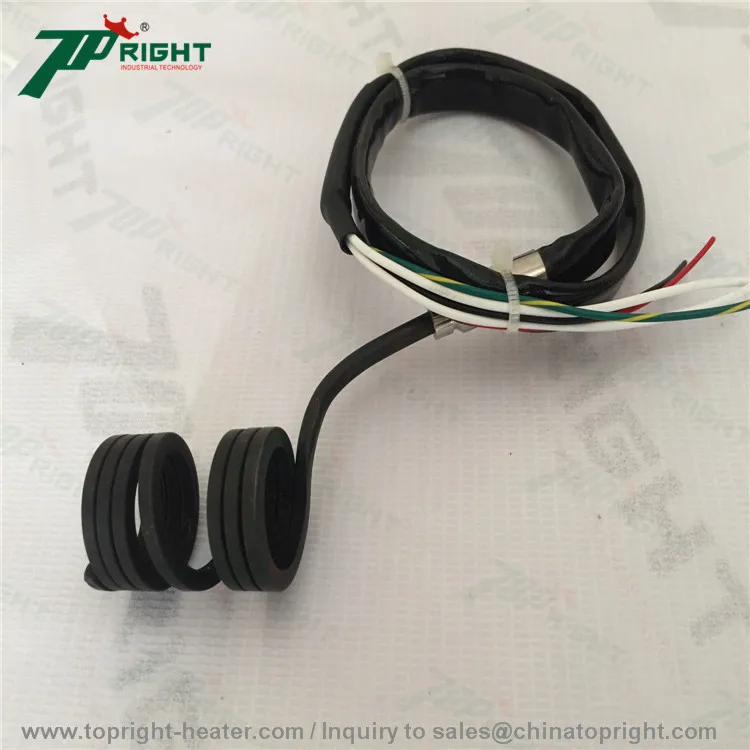

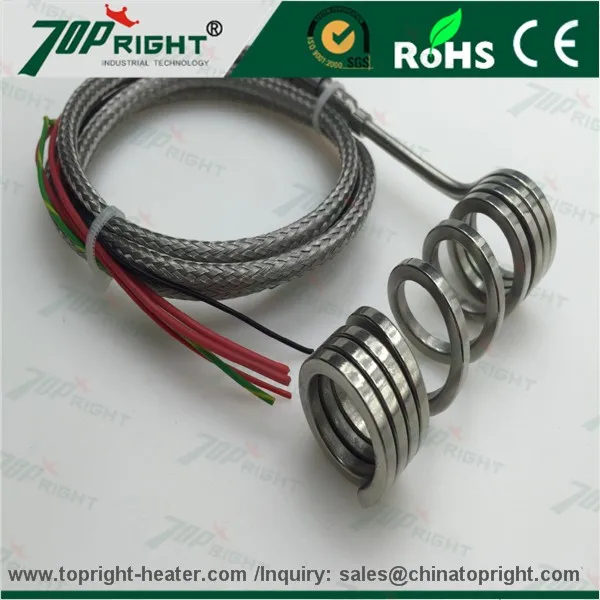

Hot runner heater description:
Hot runner heater's production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reus

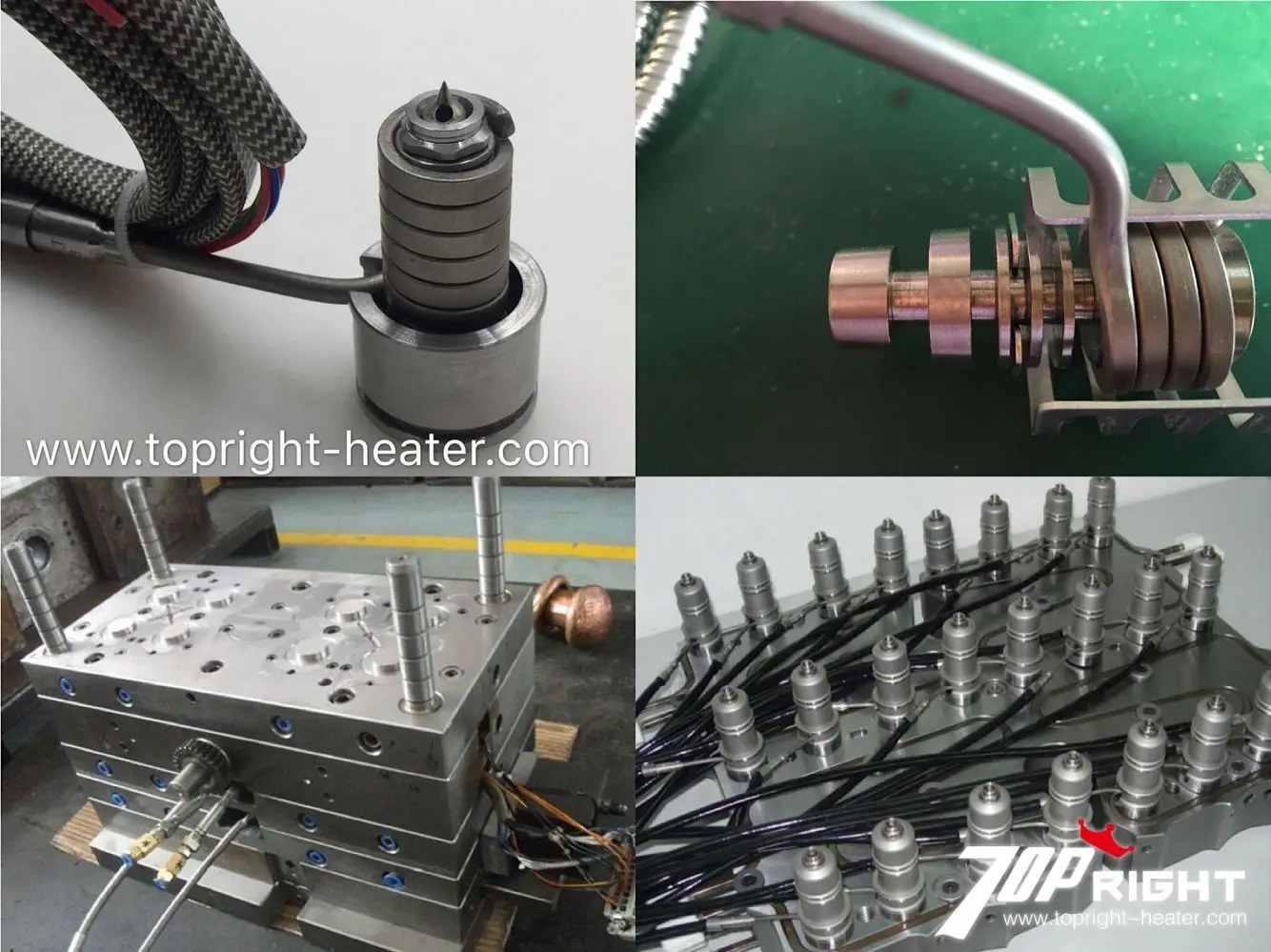

Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
Name of product | Hot runner heater |
Inner Diameter of coiled heater | 8-38mm( + 0.05mm) |
Coil style Length | 40-200mm (+ 0.5mm) |

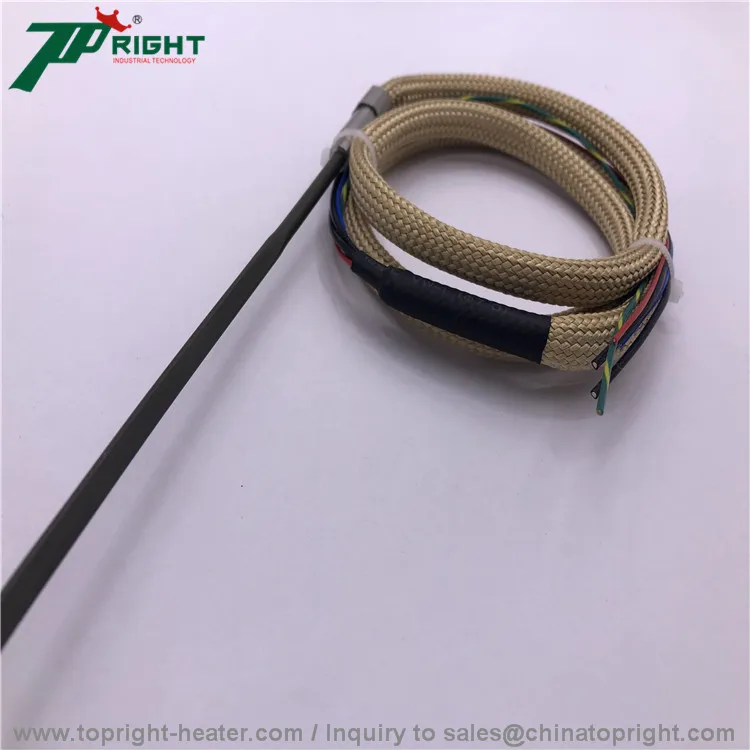

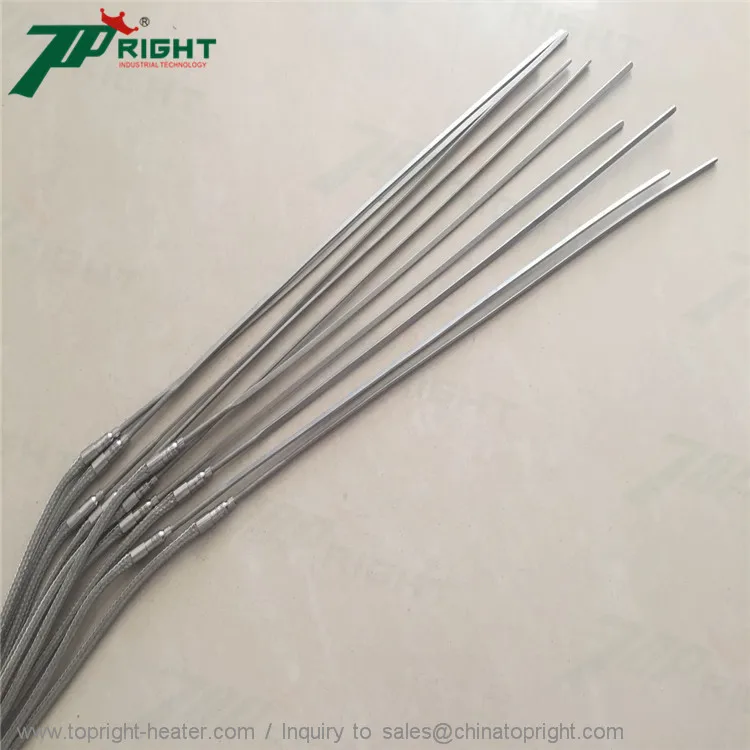

staright style length | 200-3000mm (+ 0.5mm) |
Cross-section | Round:Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm |
Tube Material | SUS304/SUS/310S/Incoloy800 |
Tube color | sliver or annealed black |
Insulation | High pure Mgo |
Inner heating element | NiCr8020 |
Voltage | 12v;24v;110v;220v;240v;380v |
Wattage | 200-3000w( 6.5W/CM2 ) + 5% tolerance |
Max. Temperature: | 650°C |
Built-in thermocouple | with or without J /K TC(Available) |
Delivery Time | 3-5 days(10-500pcs) 7 days(more than 500pcs) |


































About us:
Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart". Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
