Topright-made customize size ID10.2x22mm hot runner system electric coil heater
USD $6 - $17.5
/ Piece
5 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
Topright customized electrical sprue bushing hot runner nozzle coil heating element
-
Topright Electric Hot runner nozzle coil heaters for plastic injection mould manifold heaters
-
Electrical Hot runner press in brass coil heater
-
Topright 220V ID16x80mm Brass nozzle hot runner coil heater
-
Topright customized 220V ID16x80mm Brass nozzle hot runner coil heater
-
Electric 400w ID 20mm Spring Hot Runner Coil Heater for Plastic Injection Moulding Machine
Product Details
| Brand Name | Topright | Place of Origin | Jiangsu, China | |
| Certification | CE | |||
| Warranty | 1 Year | |||
| Weight | 0.15 | Dimension(L*W*H) | Custom Size | |
| Condition | New | Voltage | 12v;24v;110v;220v;240v;380v | |
| Power Source | Electric |
Product Description
Product Description
Hot Runner Coil Heater Description :
Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.

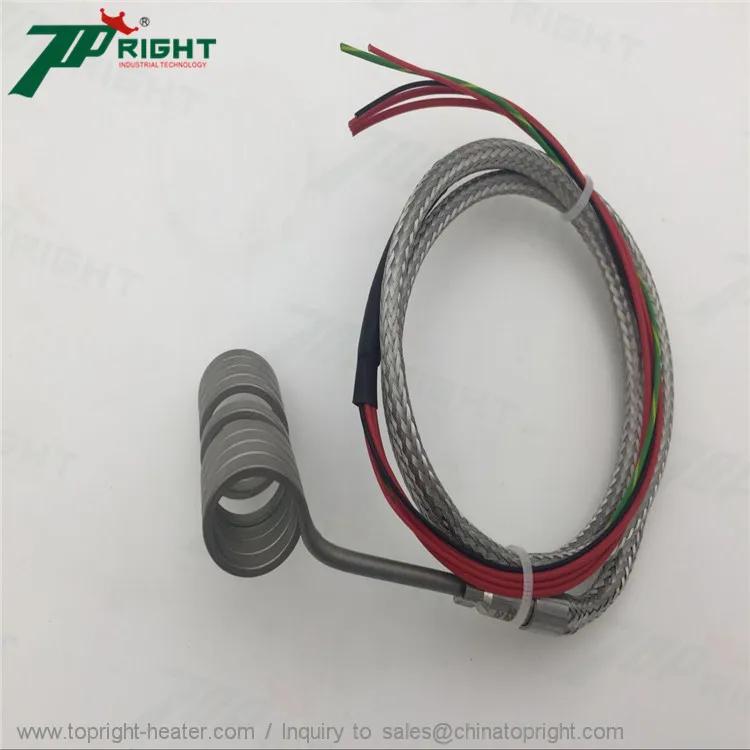

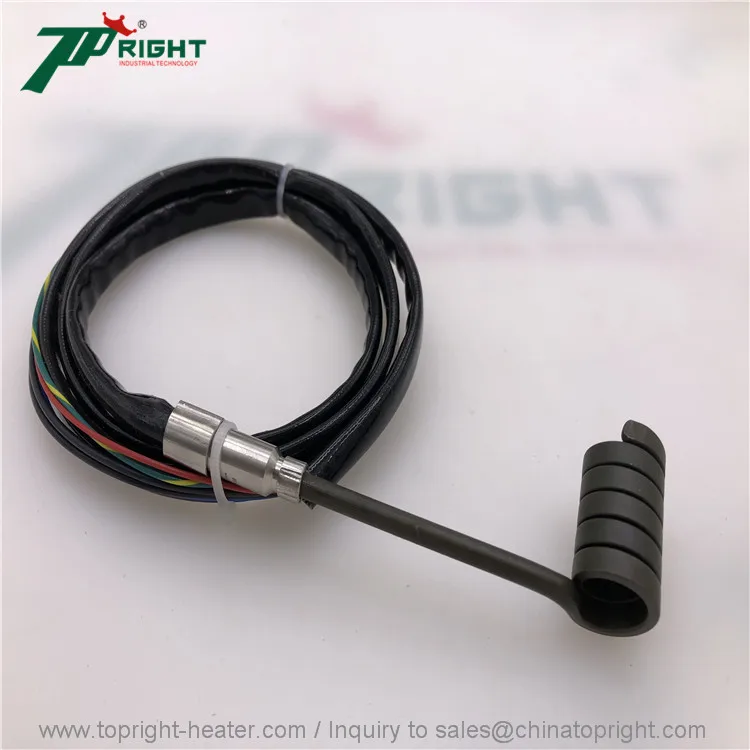

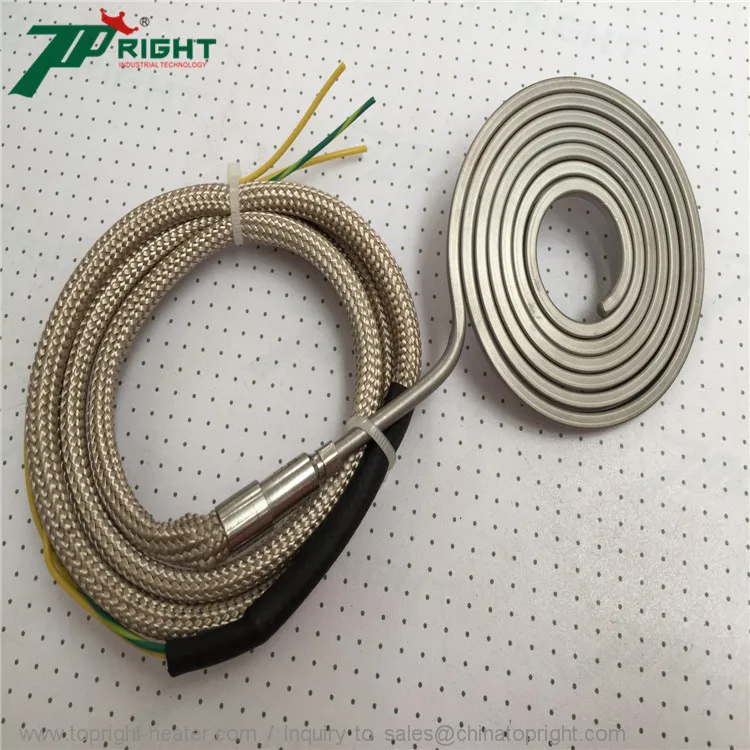

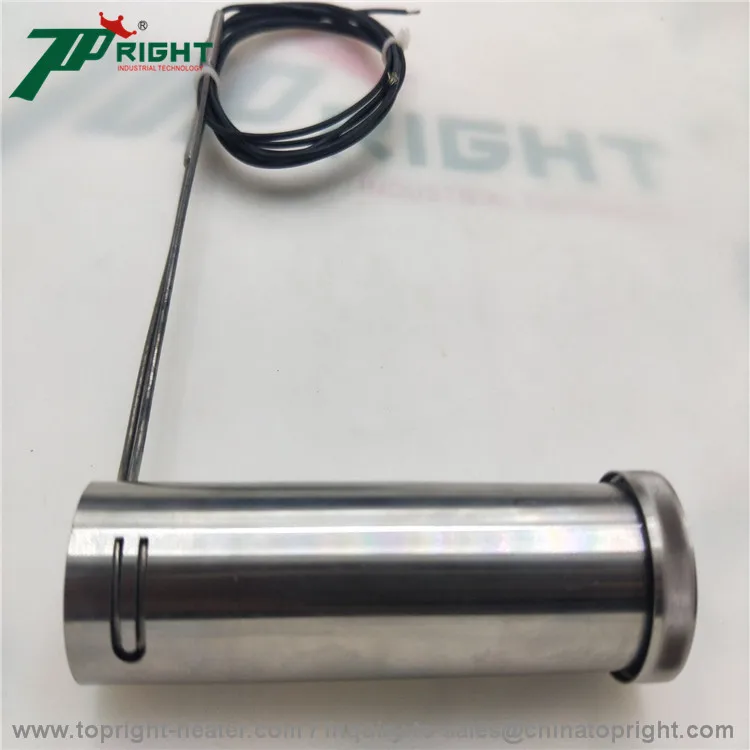

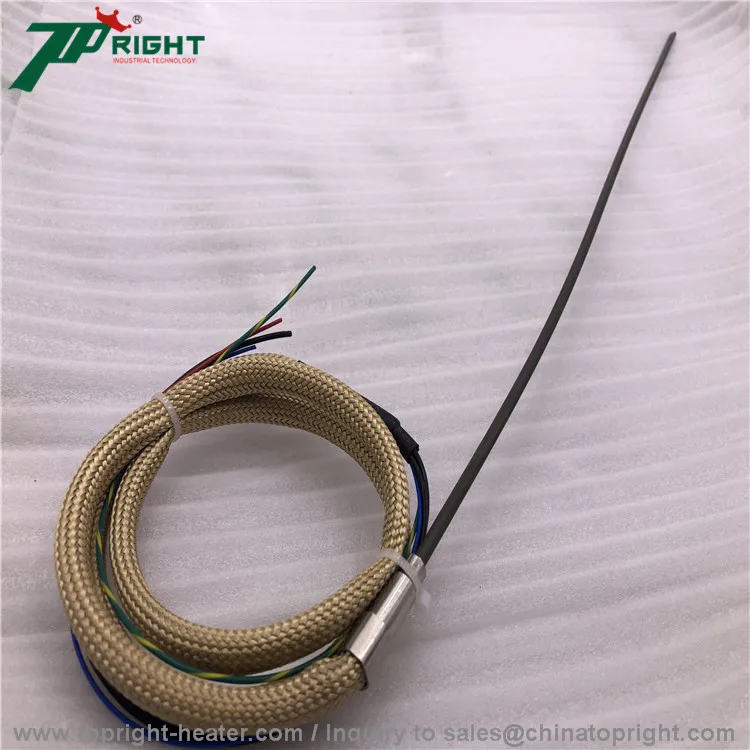

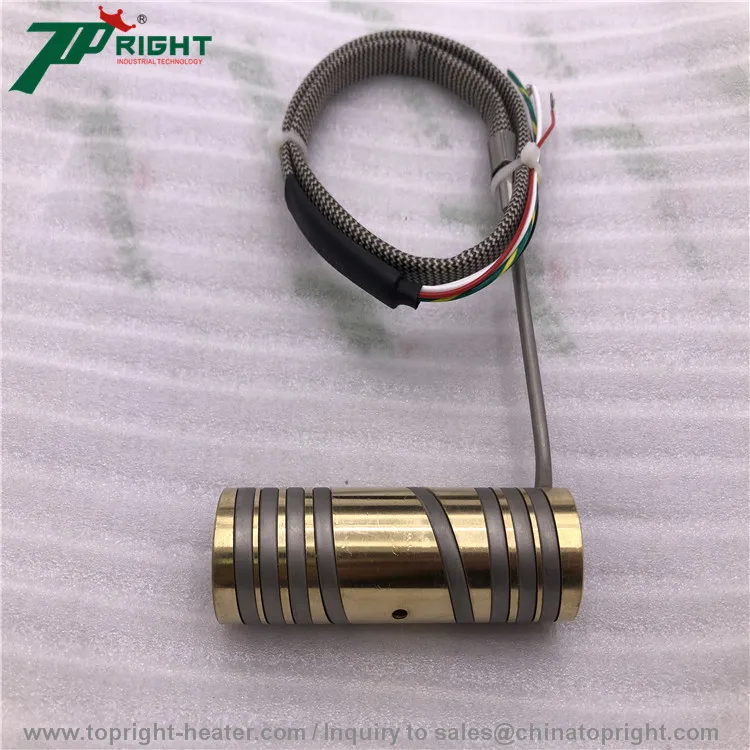

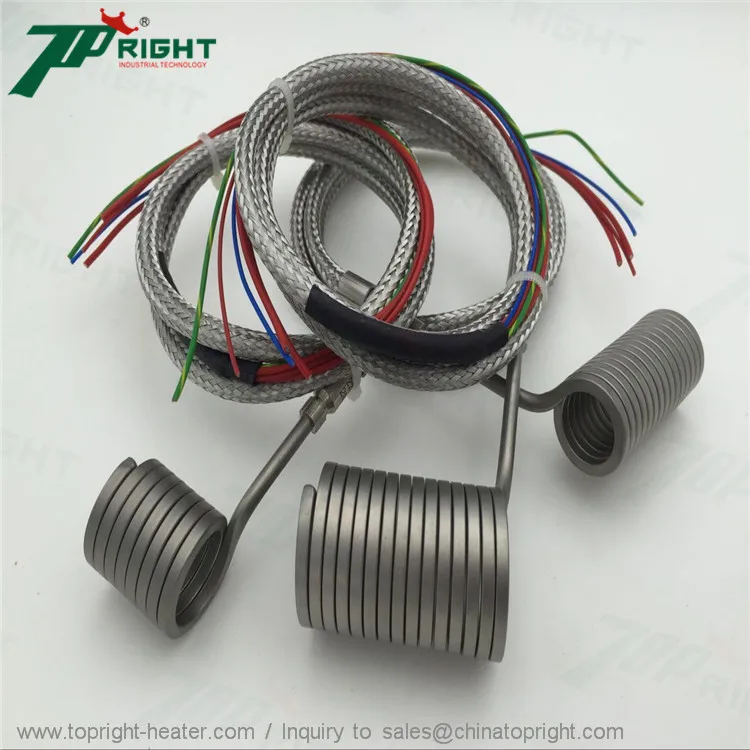

Details Images
Technical Parameter
Name of product | Hot runner coil heater |
Inner Diameter of coiled heater | 8-38mm( + 0.05mm) |
Coil style Length | 40-200mm (+ 0.5mm) |
staright style length | 200-3000mm (+ 0.5mm) |
Cross-section | Round:Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm |
Tube Material | SUS304/SUS/310S/Incoloy800 |
Tube color | sliver or annealed black |
Insulation | High pure Mgo |
Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
Inner heating element | NiCr8020 |
Voltage | 12v;24v;110v;220v;240v;380v |
Wattage | 200-3000w( 6.5W/CM2 ) + 5% tolerance |
Built-in thermocouple | with or without J /K TC(Available) |
Max. Temperature | 650°C |
More hot runner coil heater, please contact with us Topright, we will customize for you!
Application
Application for Hot Runner Coil Heater
1. Injection moulding machine nozzle.
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries.
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds.
7. Hot runner Manifolds.
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries.
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds.
7. Hot runner Manifolds.
