Home > Products > Alloy Wire > 0Cr25Al5 Electric Stove Wire Resistance Furnace Heating Wire

0Cr25Al5 Electric Stove Wire Resistance Furnace Heating Wire

FOB Price

US$ 2 - 10 / Kilogram

1 Kilogram(Min. Order)

Port FOB Shanghai for Resistance Furnace Heating Wire
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yuheng alloy steel wire	Place of Origin	Jiangsu, China
Model Number	alloy steel wire, 0Cr25Al5	Shape	wire,ribbon,strip, plate
Application	Heating, furnace heating wire, heating elements, heating elements	Chemical Composition	0Cr25Al5
Dimensions	0.05-12mm	Material	Iron Chrome Alloy

Product Description

Specification

0Cr25Al5 Electric Stove Wire Resistance Furnace Heating Wire

Electric heating alloy wire manufacturer---Yancheng Yuheng Electric Heating Technology Co.,Ltd is a professional factory specialized in Ferro-Chrome (Fe-Cr-AL) heating resistance wire , Nickel-Chrome (Nichrome) heating resistance wire , Copper Nickel (Constantan) wire, and related products in alloys to meet specific customer requirements.

a. high electrical resistivity
b. good corrosion resistance under high temperature
c. 1Cr13Al4,0Cr25Al5,0Cr21Al6,0Cr23Al5,0Cr21Al4,0Cr21Al6Nb,0Cr27Al7Mo2,NiCr80/20,NiCr70/30,NiCr60/15,NiCr35/20, NiCr30/20

Details Description

Description of resistance heating wire

Grades	1Cr13AL4	1Cr21AL4	0Cr21AL6	0Cr23AL5	0Cr25AL5	0Cr21AL6Nb	0Cr27AL7Mo2
Main chemical composition%
Cr	12.0-15.0	18.0-21.0	19.0-22.0	22.0-24.5	23.0-26.0	21.0-23.0	26.5-27.8
AI	4.0-6.0	3.0-4.2	5.0-7.0	4.2-5.0	4.5-6.5	5.0-7.0	6.0-7.0
Fe	balance	balance	balance	balance	balance	balance	balance
Re	-	-	-	-	-	-	-
						Nb0.5	Mo1.8-2.2
Max Working Temp	950	1100	1250	1250	1250	1350	1400
Melting point	1450	1500	1500	1500	1500	1510	1520
Density (g/cm³)	7.4	7.35	7.16	7.25	7.1	7.1	7.1
Resistivity μΩ·m,20	1.25±0.05	1.23±0.05	1.42±0.05	1.35±0.05	1.42±0.05	1.45±0.05	1.53±0.05
Tensile strength Mpa	588-735	600-700	637-784	630-780	637-784	637-784	686-784

Product Photo

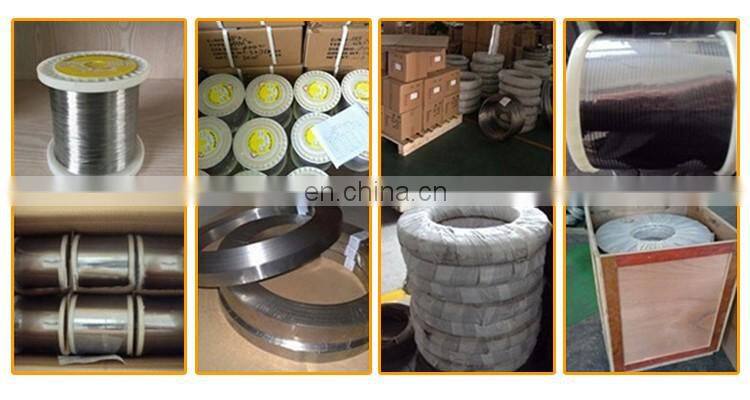

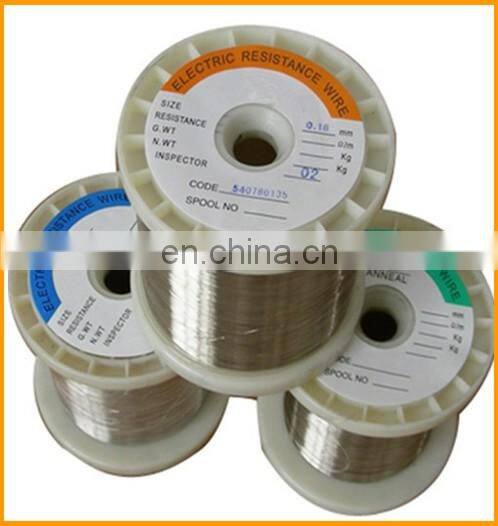

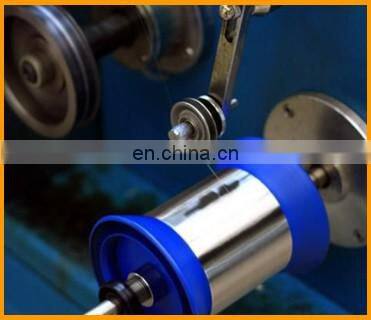

Photos of Alloy Steel Wire

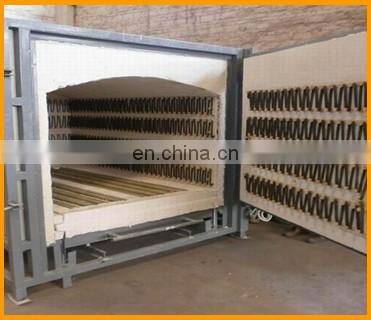

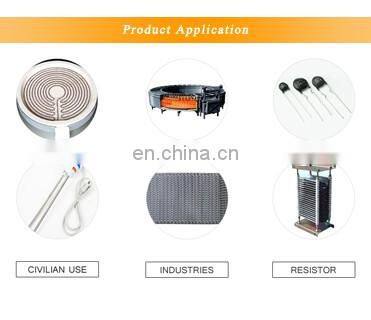

Application

Widly using of resistance wire

Packing & Delivery

1. Packing for alloy steel wire
Export carton packing box for small qty;
Export wooden packing box for large qty.

2. Shipping for alloy steel wire
1. Fedex/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

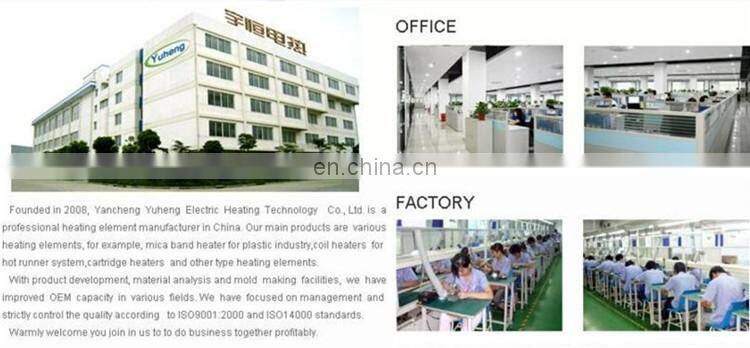

Company&Certificate

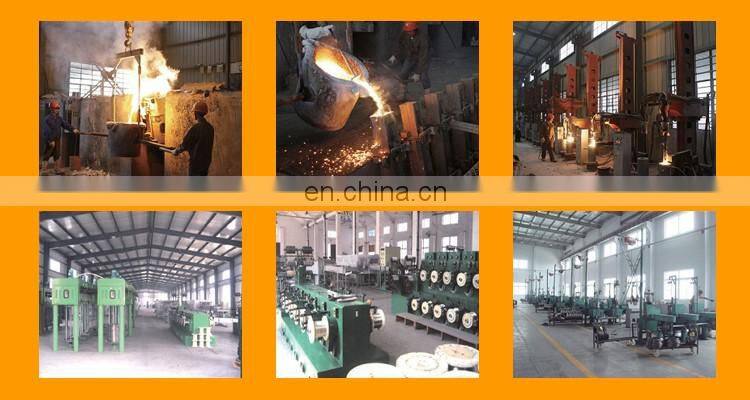

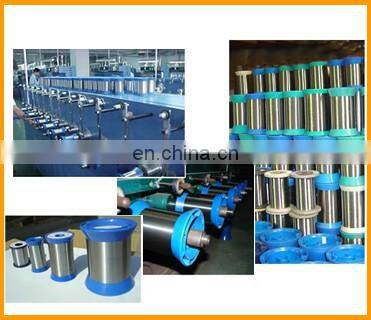

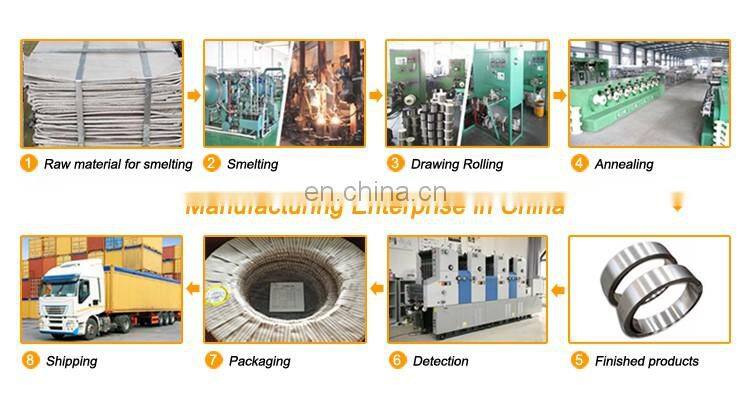

Production Progress of alloy steel wire

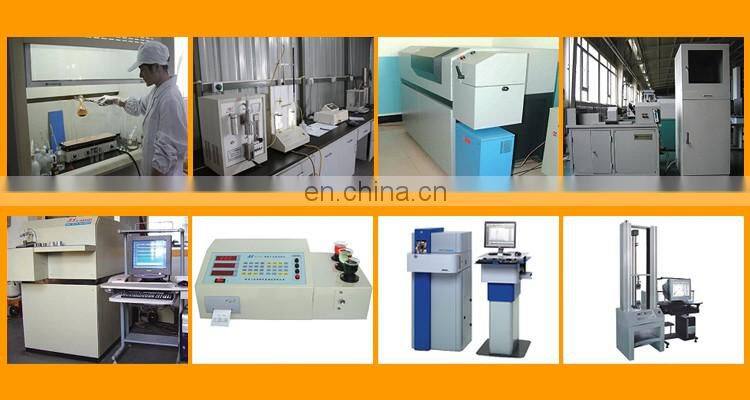

Testing Equirements for alloy steel wire

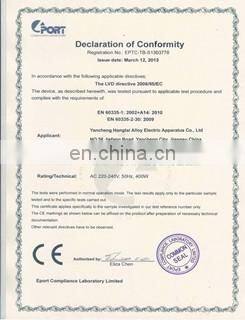

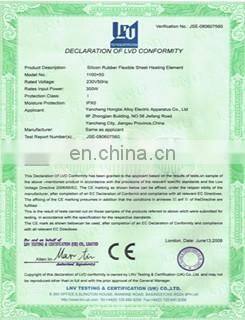

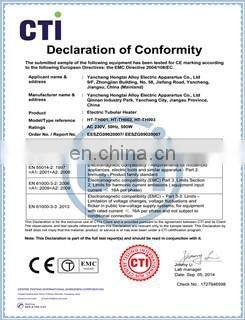

Certificates for alloy steel wire

Exhibition of alloy steel wire

Services

a. How to order alloy steel wire from Yuheng
1. Tell us the item name,quantity,color etc you need,contact us via Email or trademanager,we will quote our lastest price for you.
2.Provide us your delivery address,phone number,then we will make an profoma invoice for you.Shipping cost,ETD and our contact information will be all enclosed in the invoice.
3.after invoice confirmed,you can choose payment terms from paypal,T/T and Western Union.
4.After we receive your payment,will arrange production for you at once.

b. Warranty
1 year quality assurance

c. Return Policy
If our product defected within warranty period,Pls kindly provide us picures or video,we will show it to our engineer to figure out the problem,then send you replacement in the next order.
