Home > Products > Tube Heater > 110 Volt 1500 Watt Heating Element Cartridge Heaters

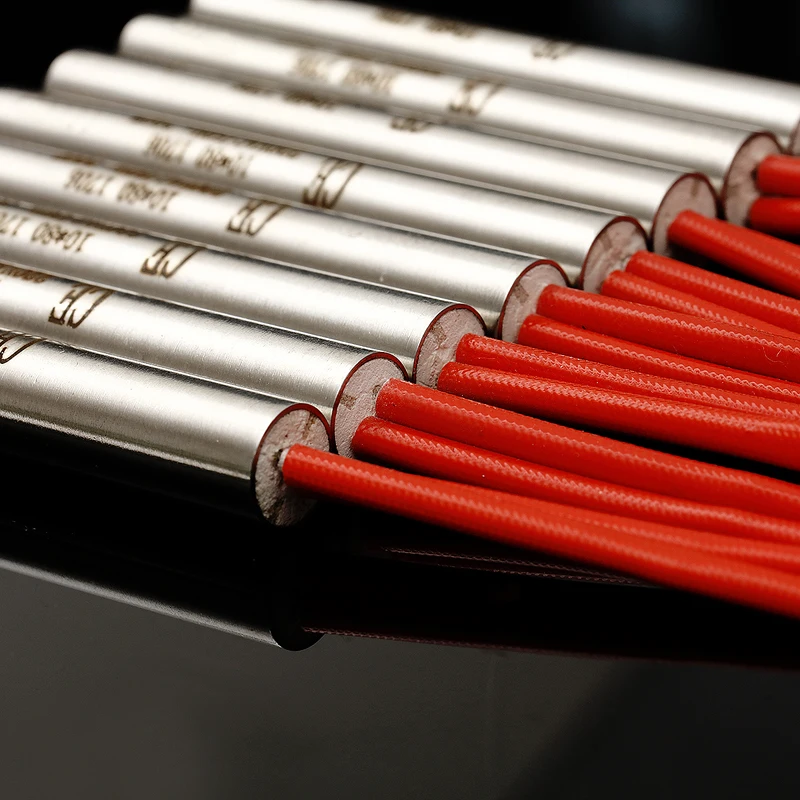

110 Volt 1500 Watt Heating Element Cartridge Heaters
US$ 1 - 5
/ Piece
5 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
2kw Electric Resistance Heating Tube
-
220v 415v 750w Fin Heater for Air Heating
-
240 Vac 380v Flange Water Immersion Heater
-
Anti Corrosion Liquid Heater Titanium Immersion Heater Tubular Electric Water Heater
-
120v 1.5kw 2kw 3kw Portable Electric Industrial Temperature Control Water Immersion Heater With Thermostat
-
M14 6mm 8mm 10mm 12mm 14mm Electric Cartridge Rod Heater for Mould Heating
Product Details
| Brand Name | Yuheng | Place of Origin | Jiangsu, China | |
| Type | Air Heater | Certification | CE | |
| Warranty | 1 Year | |||
| Weight | 1kg | Dimension(L*W*H) | Customized | |
| Condition | New | Voltage | 110v | |
| Power Source | Electric |
Product Description
Product Description
110 volt 1500 watt heating element cartridge heaters is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316, Incoloy800,840).
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
Features
1. Tube diameter: Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Teflon or Silicone)
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Teflon or Silicone)
Catrridge Heater Construction
Product Specification
Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | Nichrome 8020 resistance wire |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Voltage Available | 12 to 600 volts customied |
Maxium Heating Temperature | 800 Degree Celsius |
Length Tolerance | ±1mm |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Insulation Resistance (cold) | ≥ 500 MΩ |
Maxium Leakage Current (cold) | ≤0.5 mA |
Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater. B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Product Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Production
Product Show
After Sales Service
1. Package tracking
2. One year guarantee
3. Technical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information
Company Introduction
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
