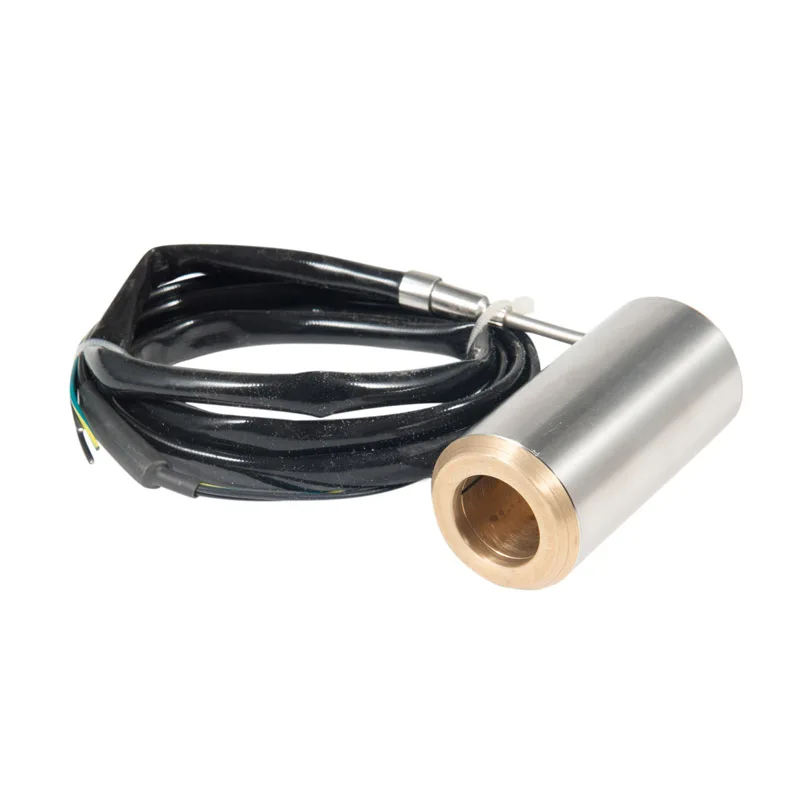

Brass Tube Coil Heater For Injection Mould
US$ 20 - 25
/ Piece
10 Pieces(Min. Order)
- Shanghai for Brass Coil Heater
- T/T Credit Card
You May Like
-
High Temperature Furnace MoSi2 Heating Element
-
4mm Diameter 12v 40w 60w 80w 100w Electric Micro Cartridge Rod Heater Element for 3d Printer
-
110v 220v Electric Resistance Tubular Cartridge Heater 158 mm for Pellet Stove Igniter
-
Industrial Cartridge Heater 12 Volt Heating Element
-
12V Electric 3D Printer Cartridge Heater
-
20w 35w 40w 50w 60w 80w 100w 400w 500w 800w High Density Wattage Customized Cartridge Heater Fire Ignite Rod
Product Details
| Brand Name | Yuheng Brass Coil Heater | Place of Origin | Jiangsu, China | |
| Type | Air Heater | Certification | CE | |
| Warranty | 1 Year, 12 Months | |||
| Weight | 0.2kg | Dimension(L*W*H) | 14*14mm | |
| Condition | New | Voltage | 120V | |
| Power Source | Electric |
Product Description
Description

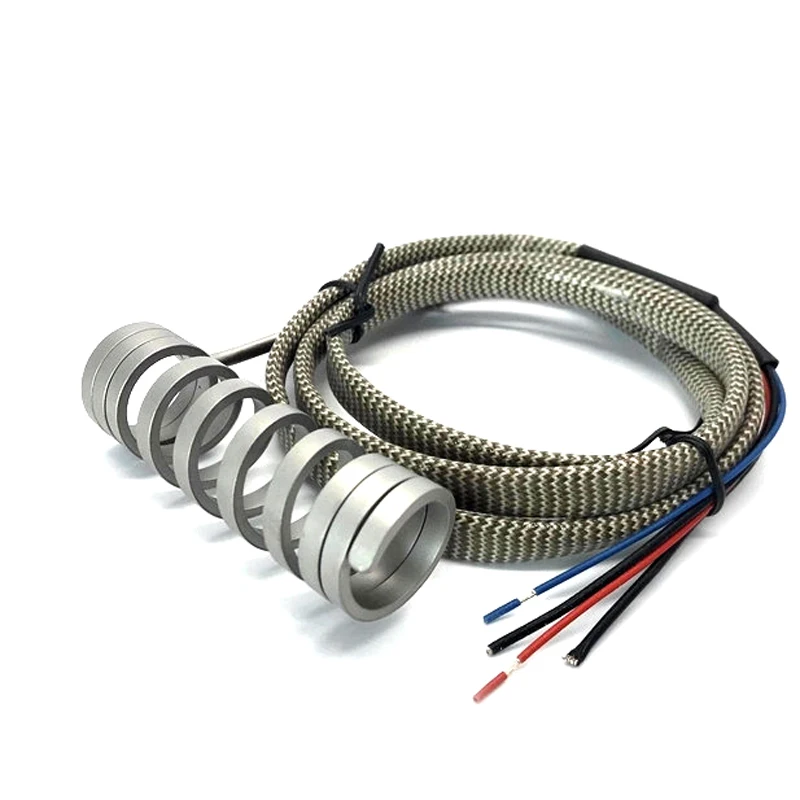

Yuheng Spiral Coil Heater is compacted for faster and efficient heat transfer. Generally the long 20-3000mm, spring heating ring external using high-quality Ni-Cr steel tube, the internal use of high purity magnesium oxide, high-temperature resistance wire.
With high working temperature, fast heating,uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reused. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built-in thermocouple are also available..

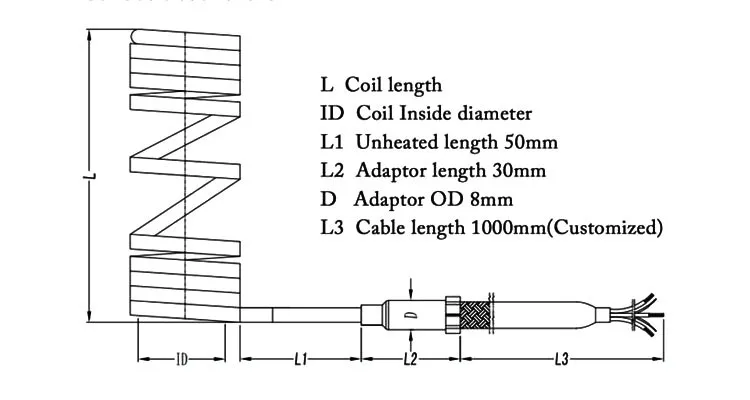

Sheath Material | Cr Ni-Steel | Thermocouple | J-type(standard); K-type |
Insulation Material | MgO | Length Tolerance(straight) | 5% |
Resistance Wire | NiCr 80-20 | Wattage Tolerance | 5% |
Thermocouple | J-type; K-type | Resistance Tolerance | 5% |
Max. Sheath Temperature | 650°C | Unheated Length | 35mm(standard) |
Die Electrical Strength | 800V A/C | Dimensional Tolerance | Coil I.D + 0.1~0.2mm |
Insulation | >5MW | Coil length +1mm |
Product Show
How to order?
If you have other question,pls contact our.
Pls provide this
Related Products

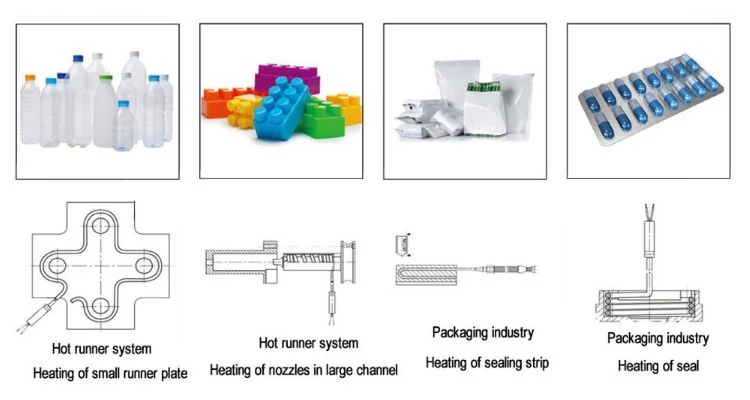

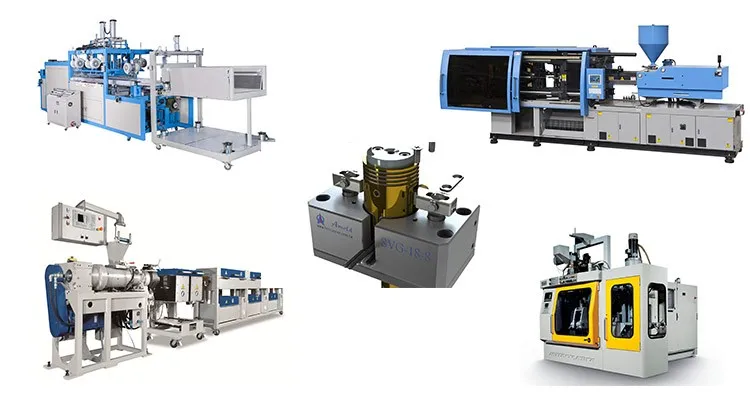

Product Application
1). Injection & Blow moulding machine nozzle
2). Hot Runner Nozzles & Bushings.
3). Packaging machinery
4). Hot runner Injection Moulds.
5). PET preform & Thin wall container Moulding
6). Hot runner Manifolds
2). Hot Runner Nozzles & Bushings.
3). Packaging machinery
4). Hot runner Injection Moulds.
5). PET preform & Thin wall container Moulding
6). Hot runner Manifolds
After Sales Service
1. Package tracking
2. One year guarantee
3. Technical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information
