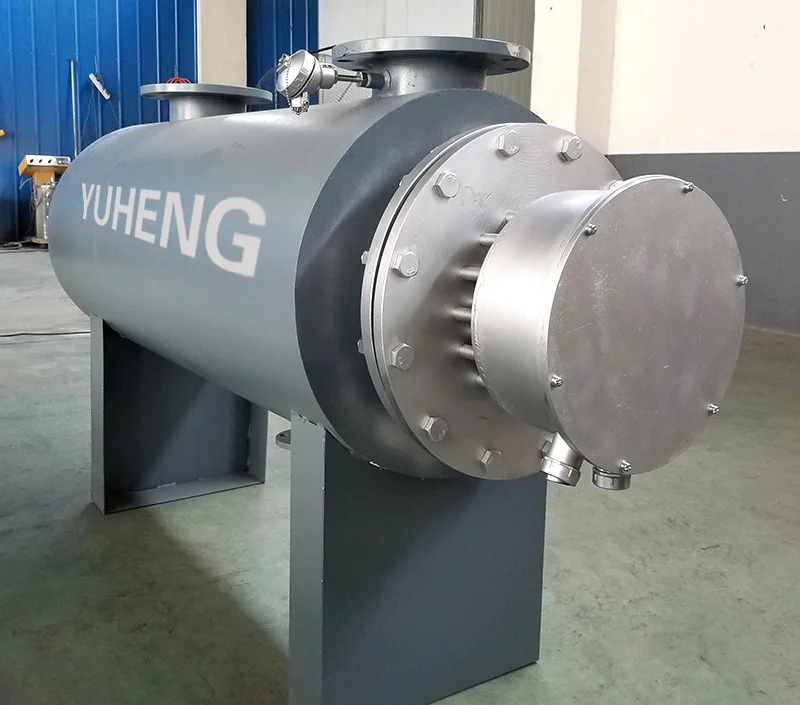

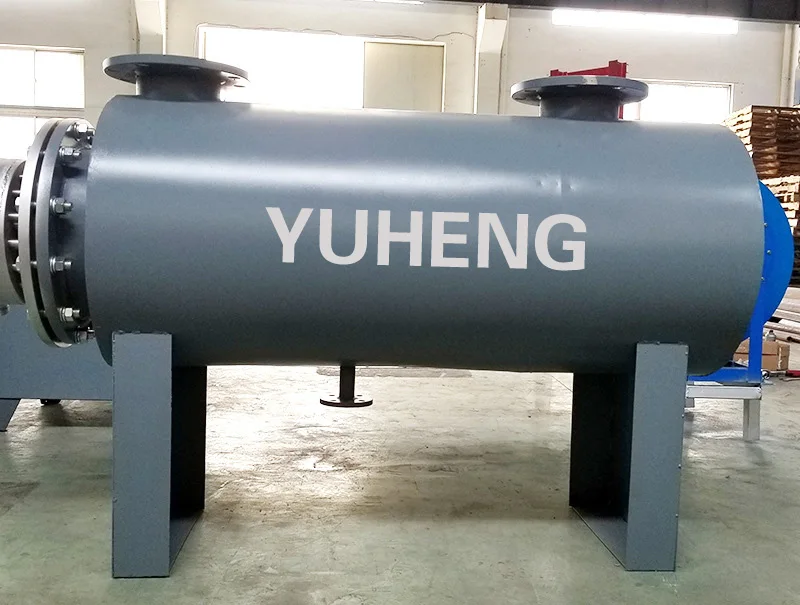

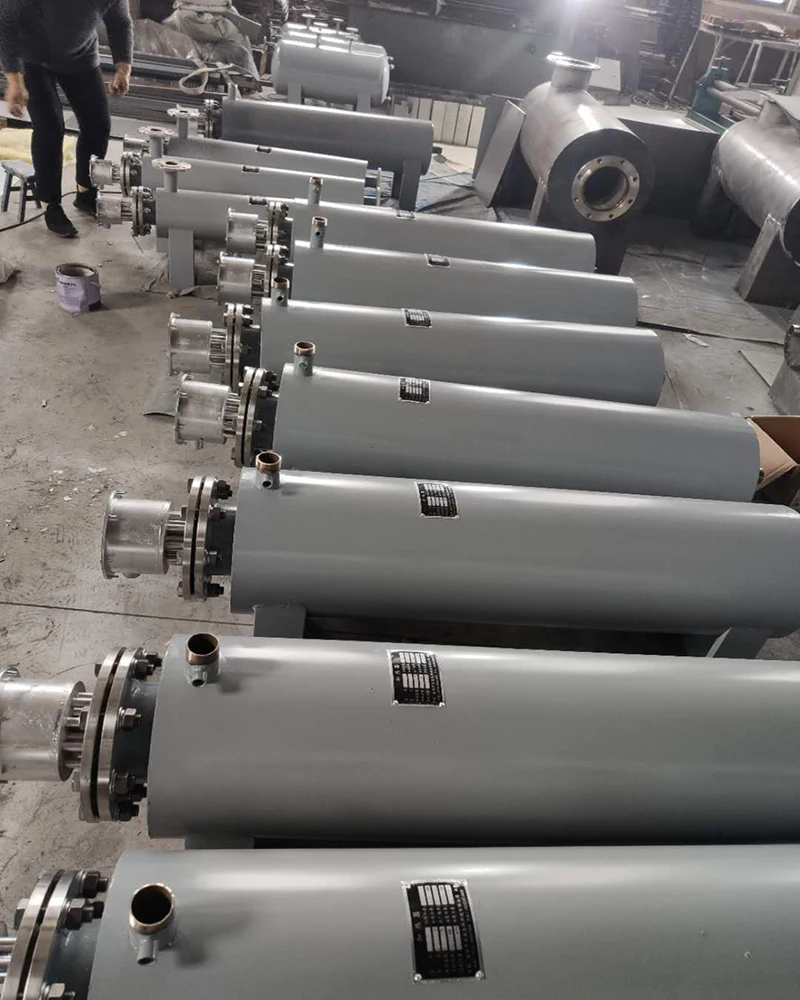

Industrial Electric Flange Oil Circulation Pipeline Heater
US$ 500 - 3,200
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
High Temperature Armored Wzp Temperature Sensor Thermocouple Pt100 Rtd With Single Thread
-
230v Industrial Electric Mica Insulator Barrel Band Heater for Injection Molding Machine
-
220v 400w Promotional Far Infrared Resistance Radiant ir Tube Lamp Quartz Heating Element
-
CE Certified Flexible Silicone Rubber Heating Strip
-
220v 230v 3kw 6kw 8kw 9kw 12kw 15kw Industrial Electric Resistance Screw Flange Tubular Rod Water Immersion Heater
-
Electric Green Stainless Grill Heater Tubular Bbq Grill Heating Element
Product Details
| Brand Name | Yuheng | Place of Origin | China | |
| Type | Immersion Heater | Certification | CE | |
| Warranty | 1 Year | |||
| Weight | Customized | Dimension(L*W*H) | Customized | |
| Condition | New | Voltage | 110-600V Customized | |
| Power Source | Electric |
Product Description
Product Description

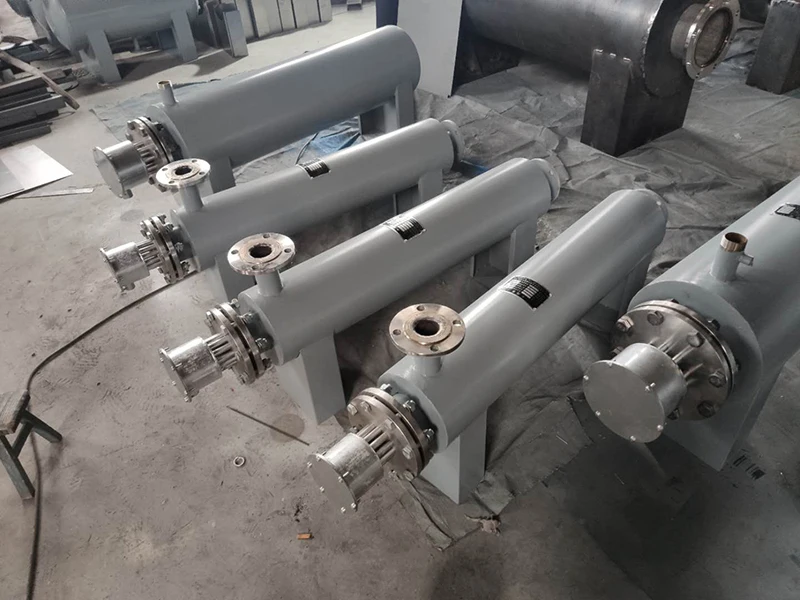

Yuheng pipeline heater Circulation Heaters, also known as "in line heaters," have uses in many applications. They can use steel ,stainless steel, or titanium depending on the application. Lube oil and waste oil applications often use steel for circulation heaters. This is because it is fairly inexpensive compared to stainless steel counterpart. Water circulation heaters use stainless steel because of its anti-corrosive qualities. In both applications, a pump flows the liquid, such as water or glycerol, through a closed pipe circuit. The liquid is reheated as it flows through the circulation heater. A major consideration for this application is viscosity. Electric circulation heaters generate heat, making the medium less viscous. The less viscous the fluid, the easier it is to pump through a circuit of pipes
Model | YH-XX | Product name | pipeline heater |
Rated power | 5-2000KW | Rated voltage | ≤690V |
Rated frequency | 50HZ | Flange | Customized |
Medium inlet and outlet | Customized | The maximum temp | 1000 °F |

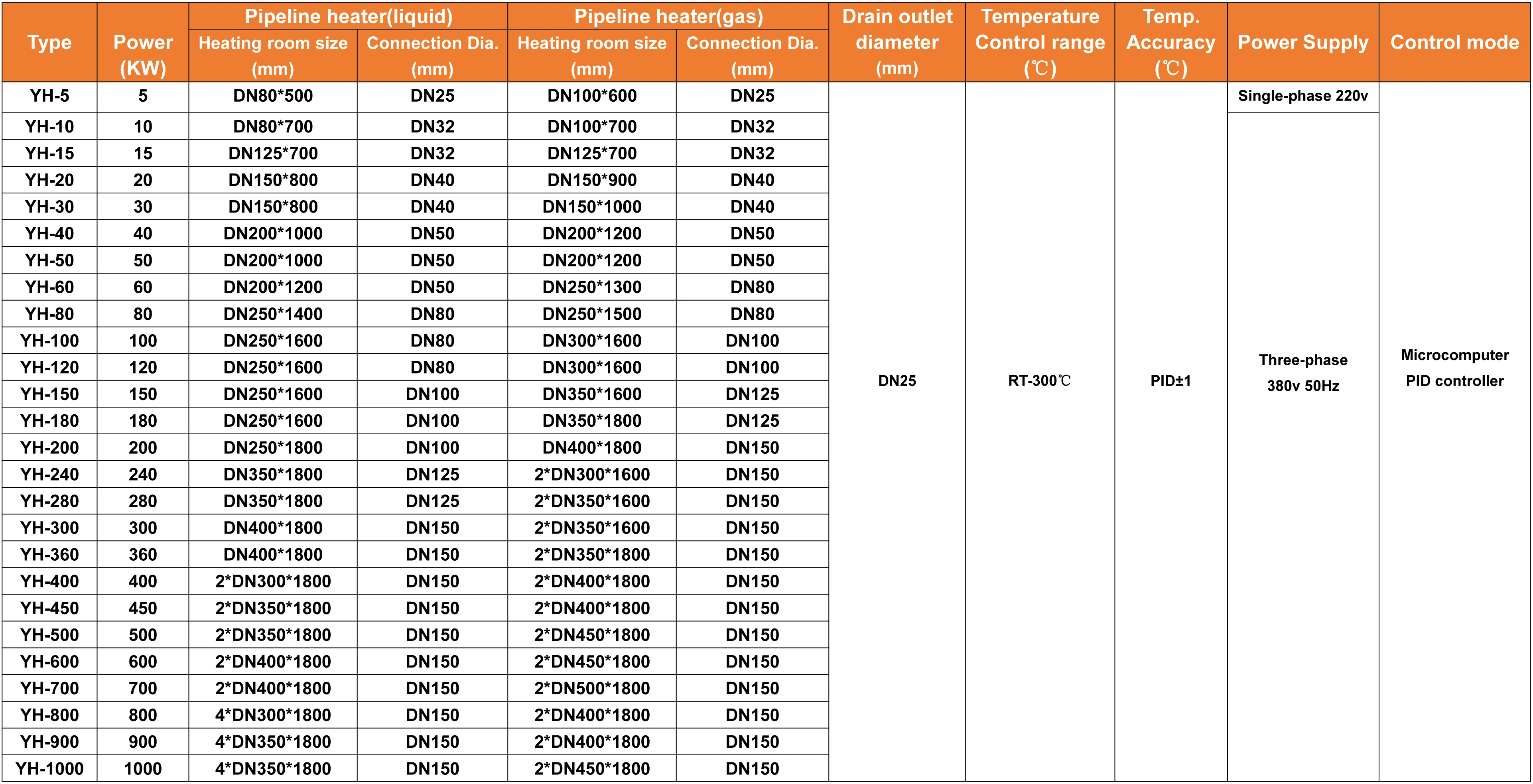

Product Specification
The key questions which need to be answered before selecting a Air Duct Heater are:
1. What's Size and shape?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the Operation temperature requirement?
4. How many sets will you want?
5. Other design requirement, feel free to tell us.
1. What's Size and shape?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the Operation temperature requirement?
4. How many sets will you want?
5. Other design requirement, feel free to tell us.
Please choose the specification of heater .
Other duct heater:

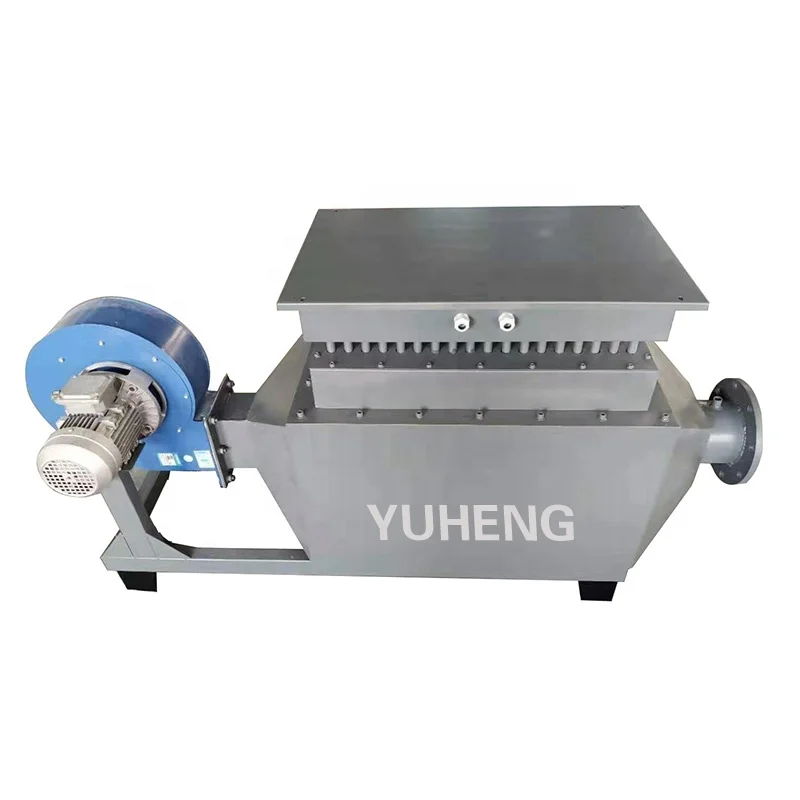

Air blower heater

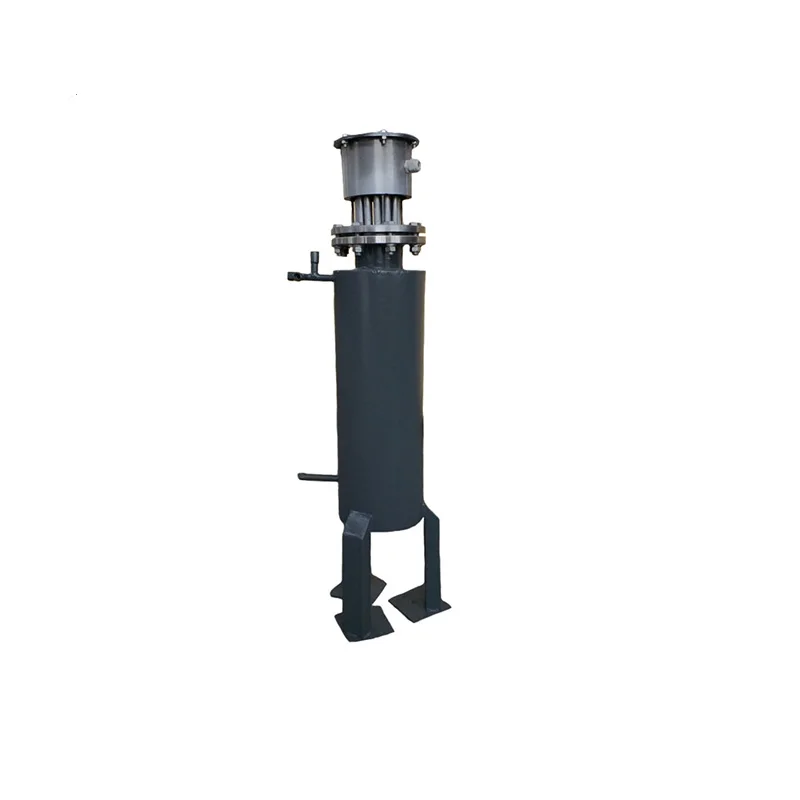

Circulation heater
Explosion-proof heater tube
Air Finned Heater
Related Products
Product Application

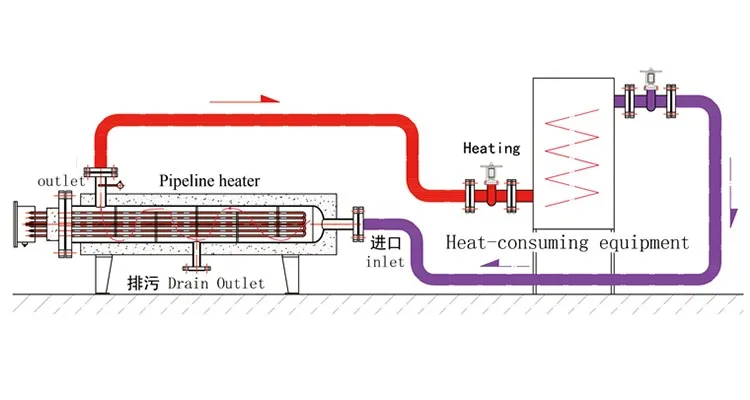

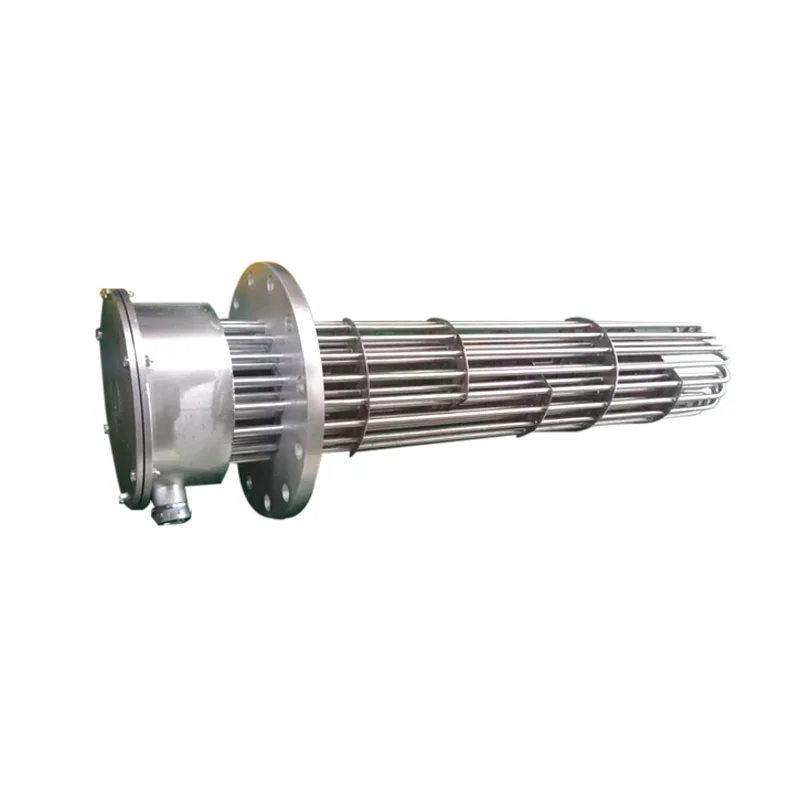

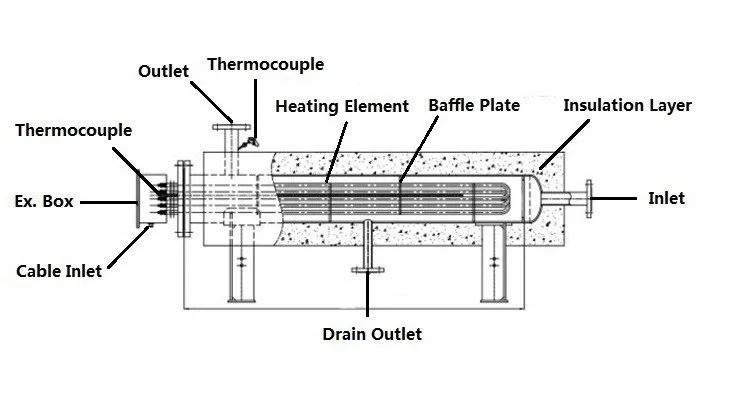

An pipeline heater is composed of an immersion heater covered by an anti-corrosion metallic vessel chamber. This casing is mainly used for insulation to prevent heat loss in the circulation system. Heat loss is not only inefficient in terms of energy usage but it would also cause unnecessary operation expenses. A pump unit is used to transport the inlet fluid into the circulation system.The fluid is then circulated and reheated in a closed loop circuit around the immersion heater continuously until the desired temperature is reached. The heating medium will then flow out of the outlet nozzle at a fixed flow rate determined by the
temperature control mechanism.
temperature control mechanism.
After Sales Service
1. Package tracking
2. One year guarantee
3. Technical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information
