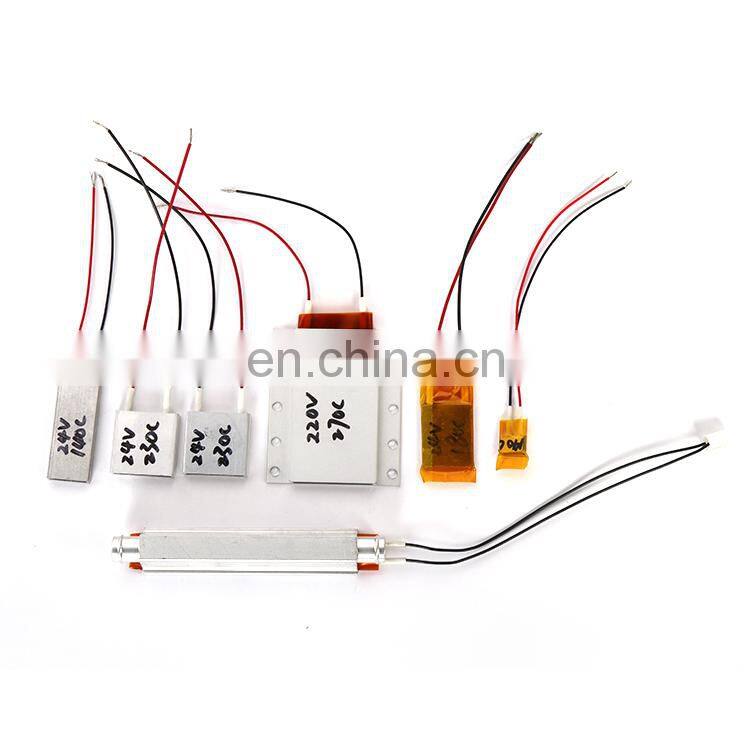

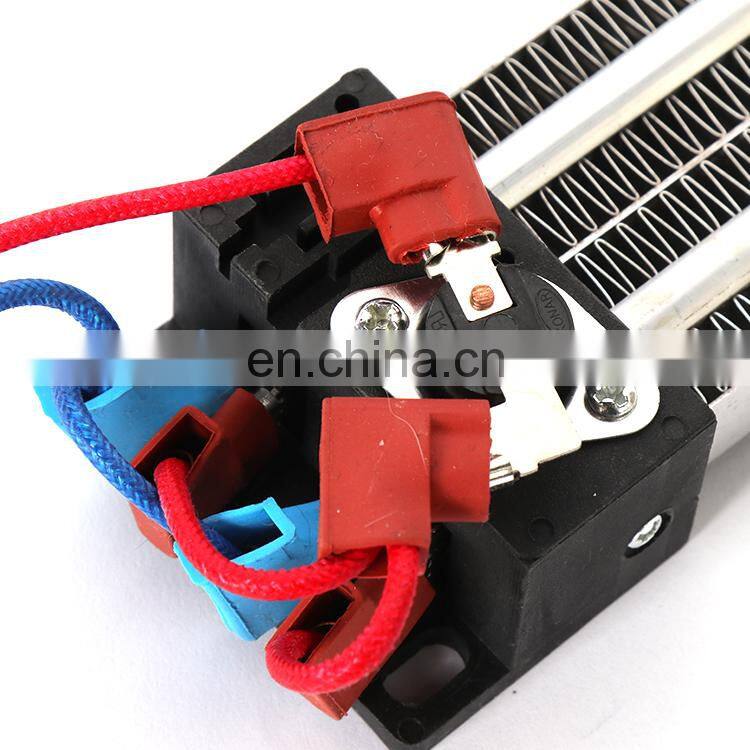

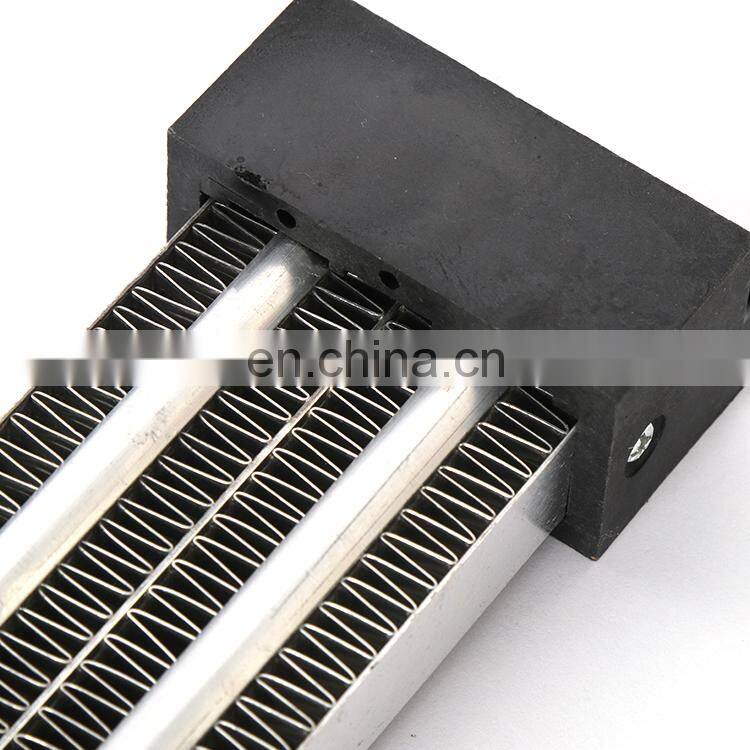

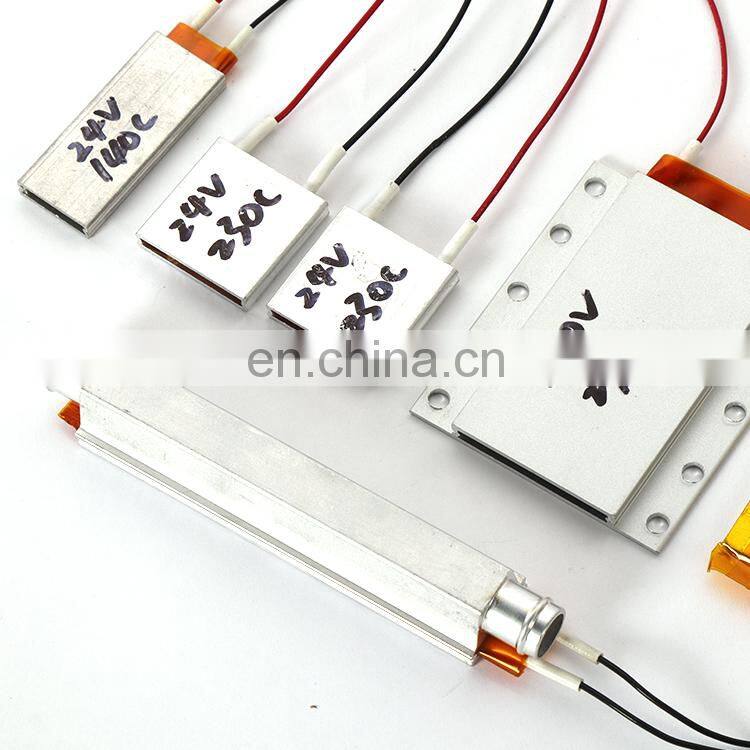

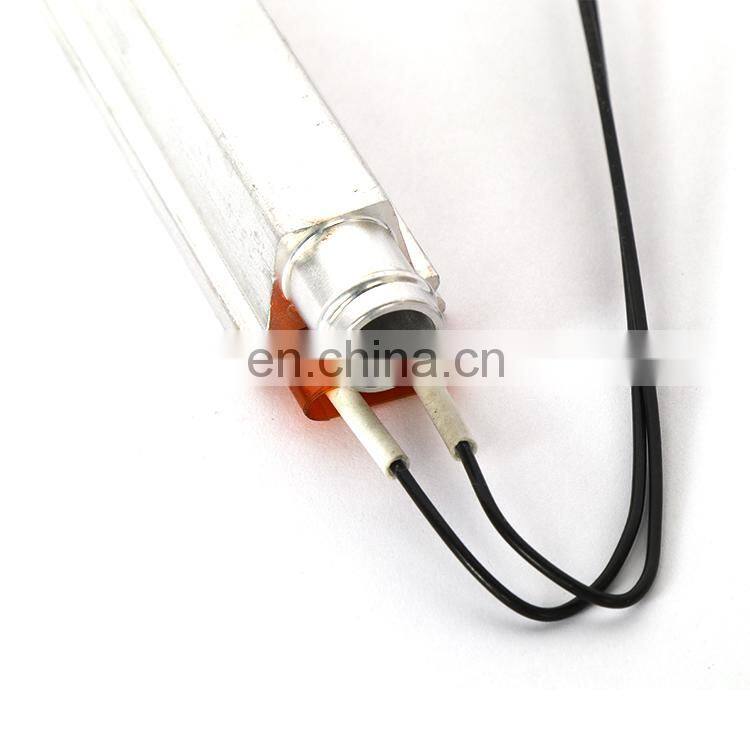

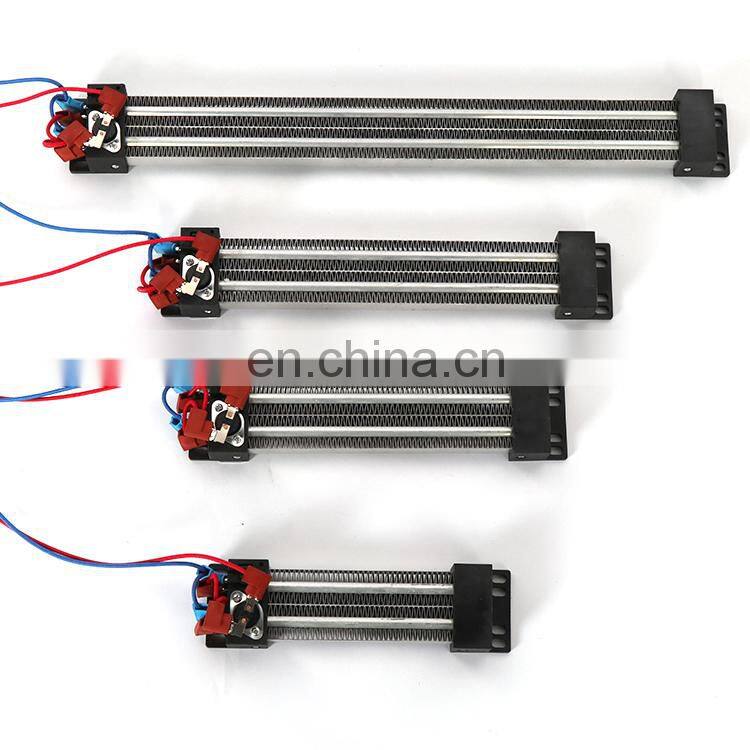

Constant Temperature Electric Heaters Electric Ptc Fan Heating Element Small Space Heating
US$ 5 - 5
/ Piece
1 Piece(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
2000W 220V 280*76mm Ptc Air Heater Element/Insulated Aluminum Shell Ceramic Core/electric Heater
-
2000W Thermostat Electric Ceramic Aluminum Shell Ptc Heating Element
-
Factory Wholesale Electric Heating Element 12v Ptc Heater in Electric Car
-
High Quality Electric 12v 100w Ptc Heater Ceramic Air Heating Ptc Element
-
Ptc Heater Elements Plater 12v 100w Ceramic Heater Air Heating
-
High Temperature Electric Ptc 12v 100w Ceramic Heater Heating Element
Product Details
| Brand Name | best | Place of Origin | Jiangsu, China | |
| Model Number | ptc heating element | |||
| Warranty | 1 Year | |||
| Power Source | Electric |
Product Description
Product Description
Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat, PTC
heater is made of PTC ceramic heating element and aluminum tube. It is an automatic constant
temperature heater and does not need any additional temperature applications.it is a new kind heater in
the market .It is fixed by a pair of metal electrodes with leads on both sides of PTC element.
| voltage | 12-240V AC/DC* (min. 110V, max. 265V) |
| temperature | -45 to +70 °C (-49 to +158 °F) |
| humidity | max. 90 % RH (non-condensing) |
| Protection type | IP54 / II (double insulated) |
| Mounting | screw fixing |
| Fitting position | variable |
| Heater body | aluminium, anodised |
| approvals | VDE + UL File No. E254776 |
| Size | Voltage | Power | length dis | Width dis | Length | Width | Aluminum length | Aluminum width |
| 120*50mm | 220V AC | 500W | 120mm | 40mm | 138mm | 52mm | 57mm | 43mm |
| 175*50mm | 800W | 175mm | 193mm | 112mm | ||||
| 230*50mm | 1000W | 230mm | 248mm | 167mm | ||||
| 280*50mm | 1200W | 280mm | 298mm | 217mm | ||||
| 345*50mm | 1500W | 345mm | 363mm | 282mm | ||||
| 390*50mm | 2000W | 345mm | 408mm | 282mm | ||||
| 430*50mm | 2000W | 430mm | 448mm | 367mm | ||||
| 490*50mm | 2000W | 490mm | 508mm | 427mm | ||||
| 120*75mm | 1000W | 120mm | 95mm | 160mm | 110mm | 97mm | 72mm | |
| 175*75mm | 1500W | 175mm | 215mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 270mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 320mm | 257mm | ||||
| 120*75mm | 1000W | 120mm | 68mm | 140mm | 75mm | 97mm | 75mm | |
| 175*75mm | 1500W | 175mm | 195mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 250mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 300mm | 257mm |
Main advantage :
1.High effective,
tects rank high
3.It can control the temperature by itself
4.leaks electric current small,life long and do not generate RFI noise.
5. It doesn't turn to red or get fire when it is working.
6.Even with the regard to voltage changes, the constant temperature mechanism will be effective.
PTC heater is widely used in:
Hot milk device ,coffee heater,Water heater , the physiotherapy device,Warm foot device ,
extruding machine fan heater ,heat preservation cup ,physical therapy apparatus
