220 v 800 Watt Customized Metal Heater Rod Ceramic Cartridge Heating Rod Element
- TAIZHOU
- T/T Credit Card
You May Like
-
Resistance 380v Finned Single End Electric Heating Cartridge Heater Finned
-
Industrial Electric Air Stainless Steel Finned Heating Element for Plastic Processing
-
220v 300w Sus304 Industrial High Density Resistance Electric Cartridge Heater Price
-
High Density 12v 24v 60w Heating Rod Heater Cartridge 3d Printer Heater
-
700w 220v China Manufacture Single-point Cartridge Electric Water Heating Rod Immersion
-
10*240mm 220v 400w Heating Element Tube Cartridge Heater With Clamp for Face Mask Machine
Product Details
| Brand Name | BEST | Place of Origin | Jiangsu, China | |
| Type | Air Heater | Certification | CE,ISO9001,ROHS | |
| Warranty | 1 Year | |||
| Weight | weight after production | Dimension(L*W*H) | as your requests | |
| Condition | New | Voltage | 12-440v | |
| Power Source | Electric |
Product Description

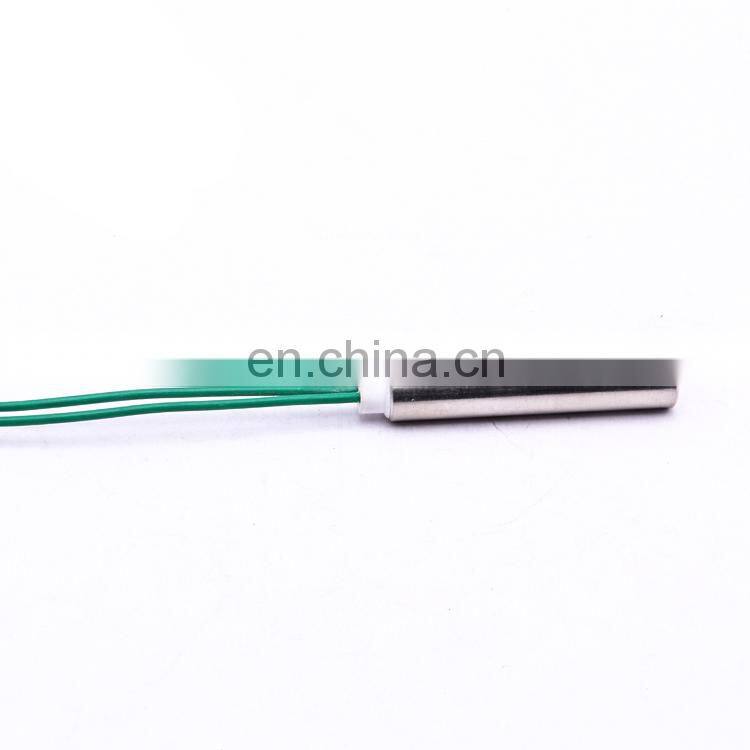

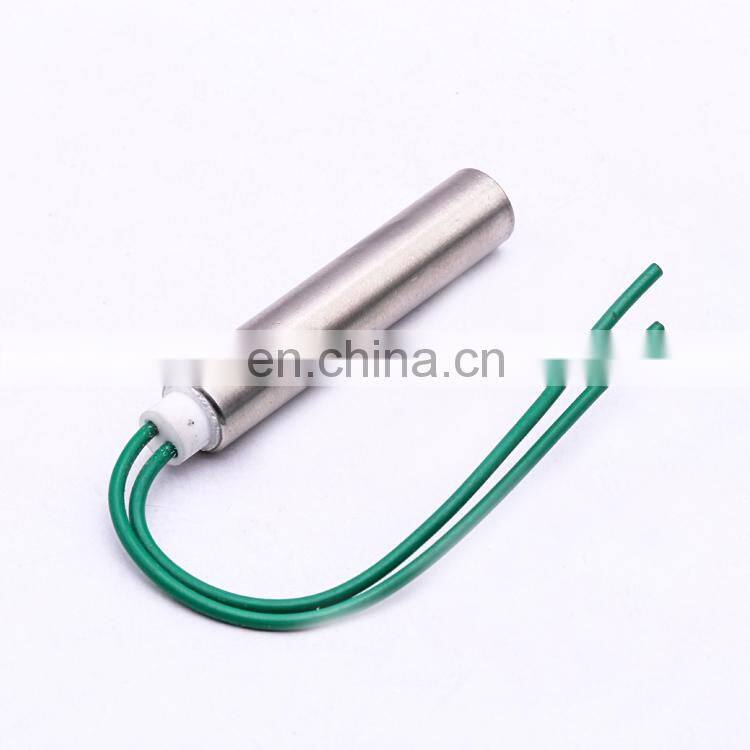

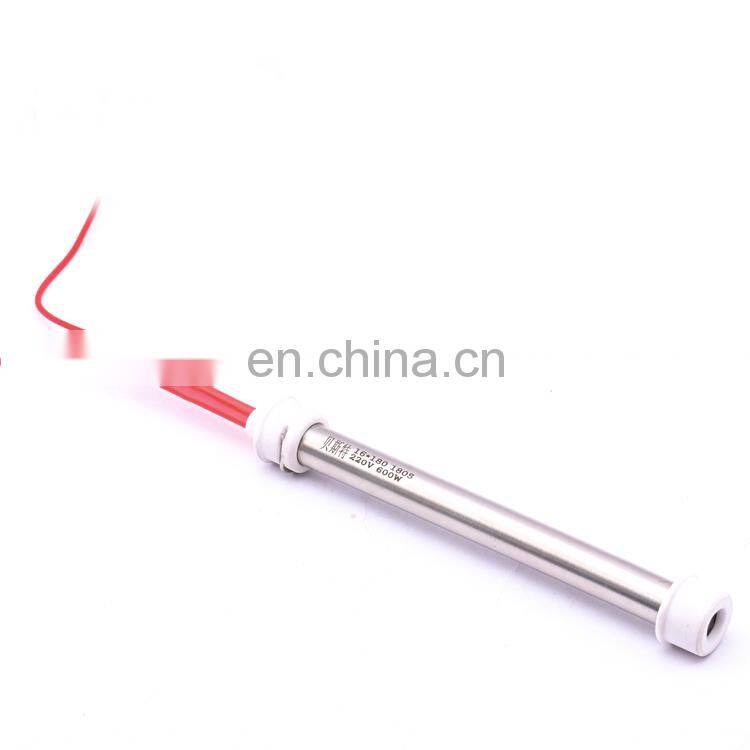

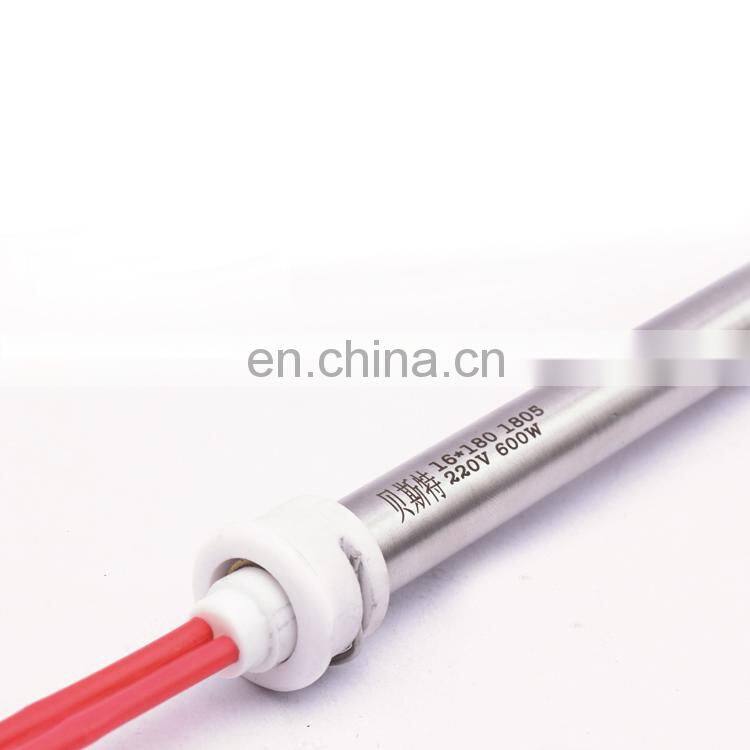

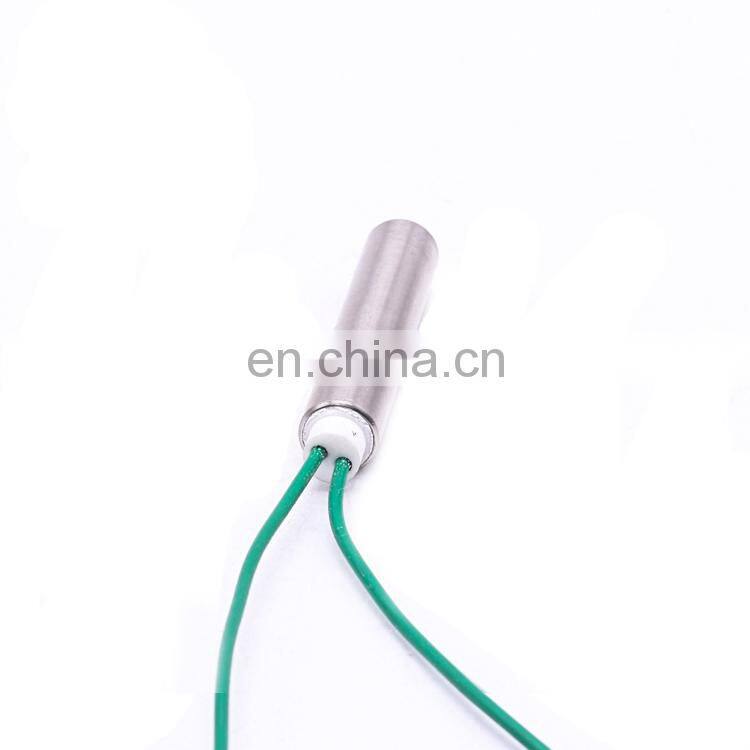

220 v 800 watt customized metal heater rod ceramic cartridge heating rod element

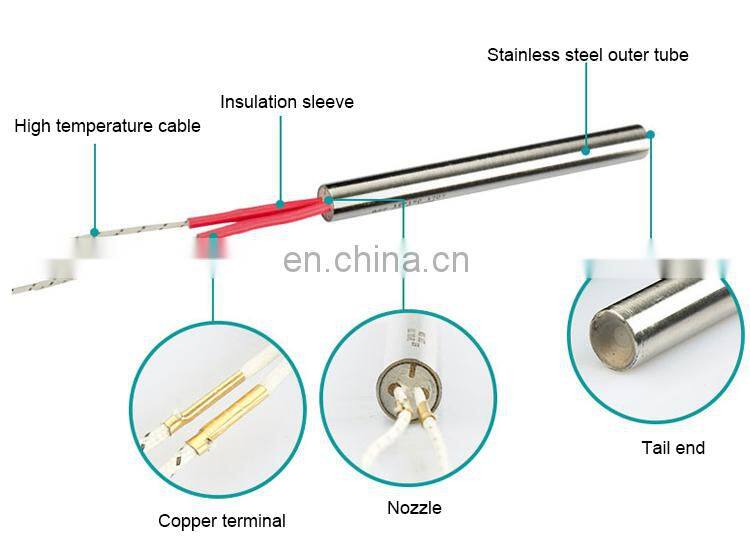

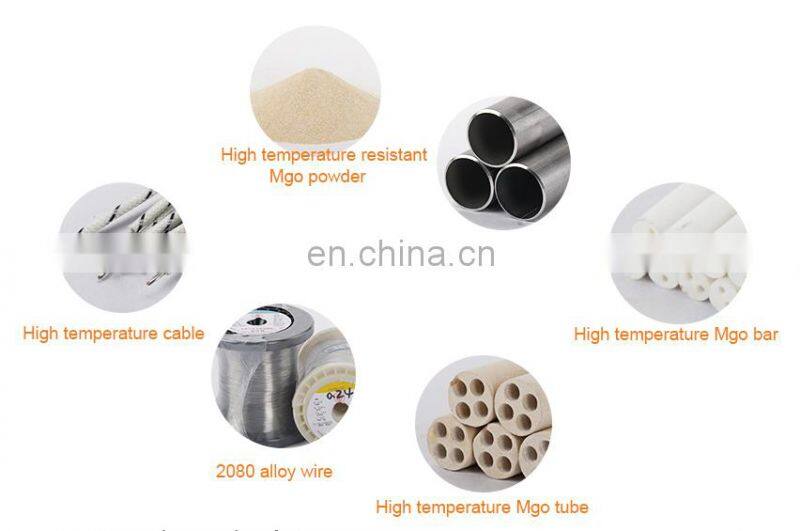

Electric heater cartridge is made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),
High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that
is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
| Resistance heating wire | NiCr 80/20 wire |
| Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
| Tube diameter | Min is 3mm, max is 30mm |
| Tube length | min is 15mm max is 3meter. |
| Maximum temperature | 870 degree Celsius |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Delivery time | 7-10 working days |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J |
| type K |
Product Advantages
1:High-Density Swaged Cartridge Heater
2:Low density cartridge heater are available
3:Good Alloy tube sheath for high corrosion resistance
4:Imported resistance wire, ensure high density large wattge
5: Fasteners and flanges to meet a variety of installation requirements.
6:High temperature, wear-resistant, waterproof
| Torpedo heaters for injection molding | Injection molding manifolds |
| Mass spectrometry | Rubber molding/Food production/Immersion tank heating |
| HVAC compressors | Fuel cells/Semiconductors/Medical devices |
| Sensor measurement devices | Extrusion/Die casting/Hot melt adhesives |
| Heat staking / hole punch | Plastic welding/Fluid heating/3D Printers |
Package : paper box and Wooden box or customized for you.
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
