Flexible Ceramic Pad Heater Element IR Heating Pad Heating Element From China
US$ 1 - 150
/ Piece
20 Pieces(Min. Order)
- Shanghai Ningbo and Guangzhou
- T/T Credit Card
You May Like
-
Top Selling Electric Heating Tape/String Electric Heating Wire
-
Silicone Rubber Carbon Fiber Heating Wire Heat Shrink Wire Connector Kit Heat Resistant Wire
-
Heat Resistant Electric Wire Electric Heating Wire Silicone Rubber Carbon Fiber Heating Wire
-
Heat Shrink Wire Connector Kit Electric Resistance Wire Heating Carbon Fiber Heating Wire
-
Silicone Rubber Insulation Electric Resistance Wire Silicone Rubber Carbon Fiber Heating Wire
-
Electric Blankets Heating Wire Carbon Fiber Electric Wire For Wholesale
Product Details
| Brand Name | JUNQIAN | Place of Origin | Jiangsu, China | |
| Certification | ISO9001 | |||
| Warranty | 1 Year | |||
| Weight | Customized | Dimension(L*W*H) | Customized | |
| Condition | New | Voltage | 220V/380V | |
| Power Source | Electric |
Product Description

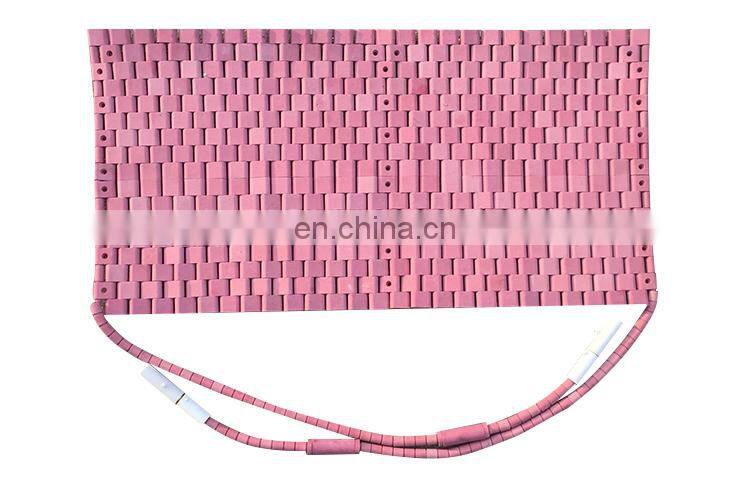

1050 Degree Electric Flexible Ceramic Heating Pad/Band Heater

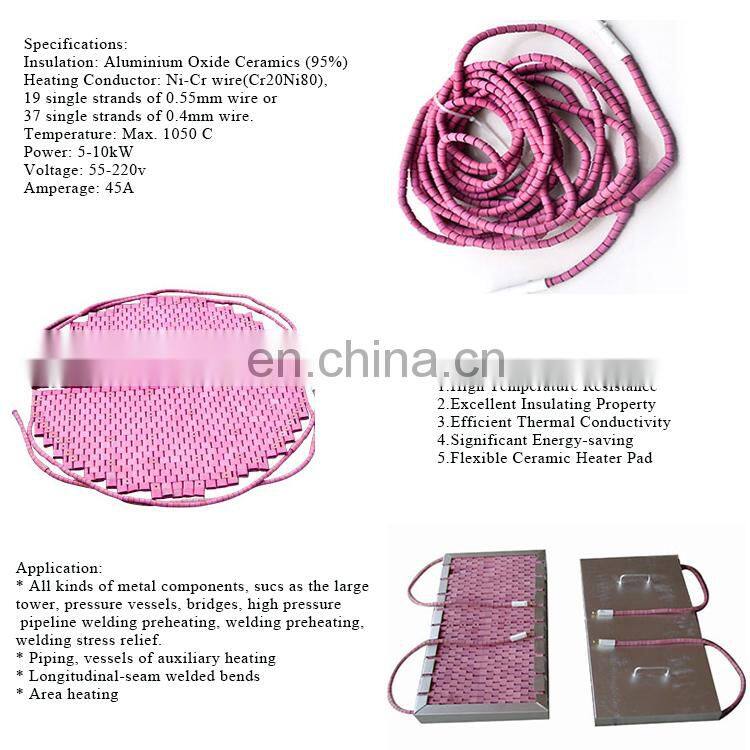

Flexible ceramic pad (FCP) Heaters are made from 95% Al2O3. These pad heaters are assembled of interlocking sintered alumina ceramic
beads which insulate stranded nickel chrome wire. This durable construction forms a flexible mat with remarkable mechanical strength
| Size | Power/Voltage | Size | Power/Voltage |
| 600*400mm | 10kw-220v | 330*310mm | 5kw-110v |
| 660*330mm | 10kw-220v | 420*260mm | 5kw-110v |
| 680*340mm | 10kw-220v | 500*220mm | 5kw-110v |
| 800*200mm | 10kw-220v | 500*460mm | 10kw-220v |
| 880*260mm | 10kw-220v | 530*420mm | 10kw-220v |
| 1020*220mm | 10kw-220v | 600*180mm | 5kw-110v |
| 1160*200mm | 10kw-220v | 260*200mm | 2.5kw-55v |
| 1360*160mm | 10kw-220v | 410*210mm | 2.5kw-55v |
| 1860*120mm | 10kw-220v | Dedicated temperature control box | 5kw |
| Dedicated temperature control box | 10kw | Dedicated temperature control box | 15kw |
| Dedicated temperature control box | 20kw | Other size | Other size can accpet customized |
Ceramic Infrared Lamp is efficient, robust heaters which provide long wave infrared radiation.
They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying.
They are also used very effectively in infrared outdoor heaters and infrared saunas.
It has many kinds of shapes, contains flat elements, trough elements, hollow elements, ceramic bulbs

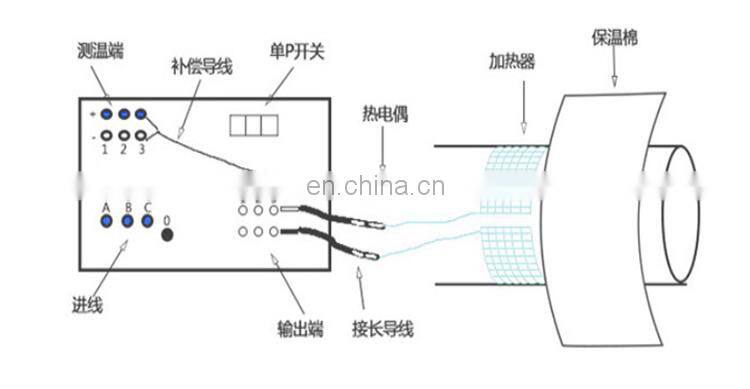

Wiring
