2016 Hot Sale Germany Type Gypsum Board Production Line/germany Type Gypsum Board Production Line Equipments Producing

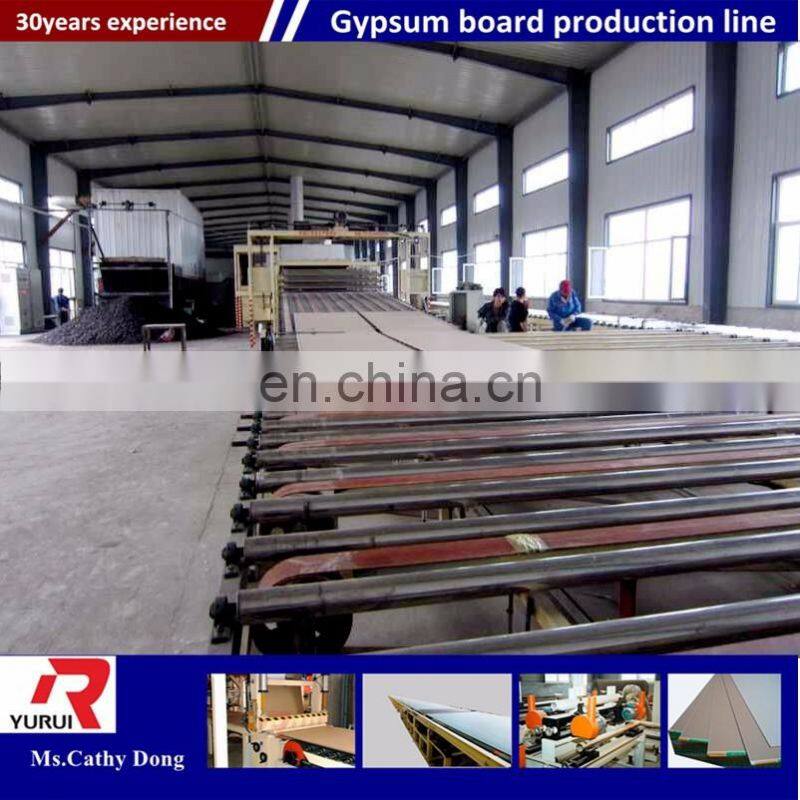

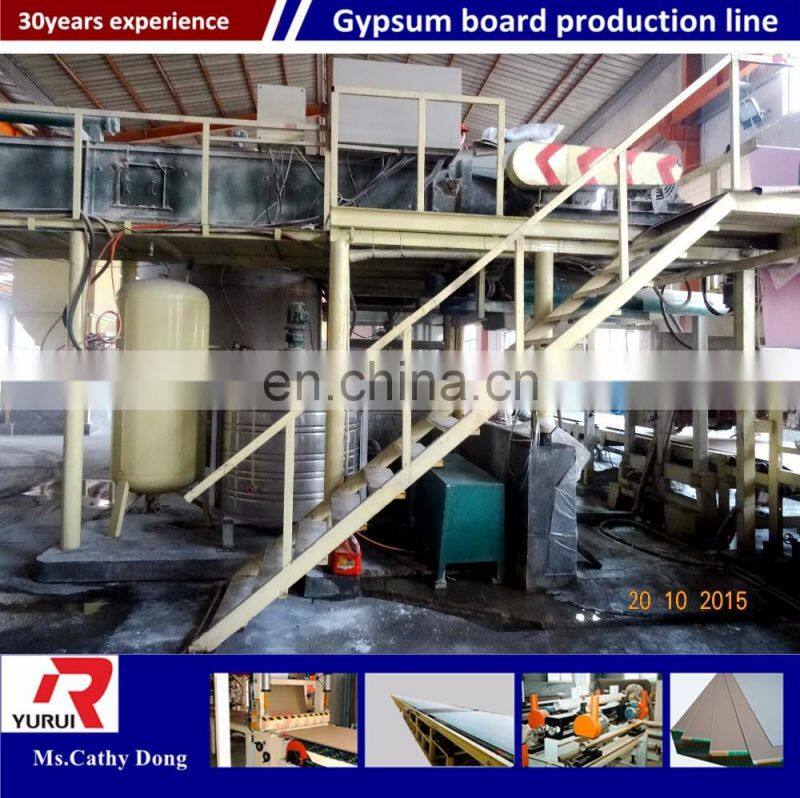

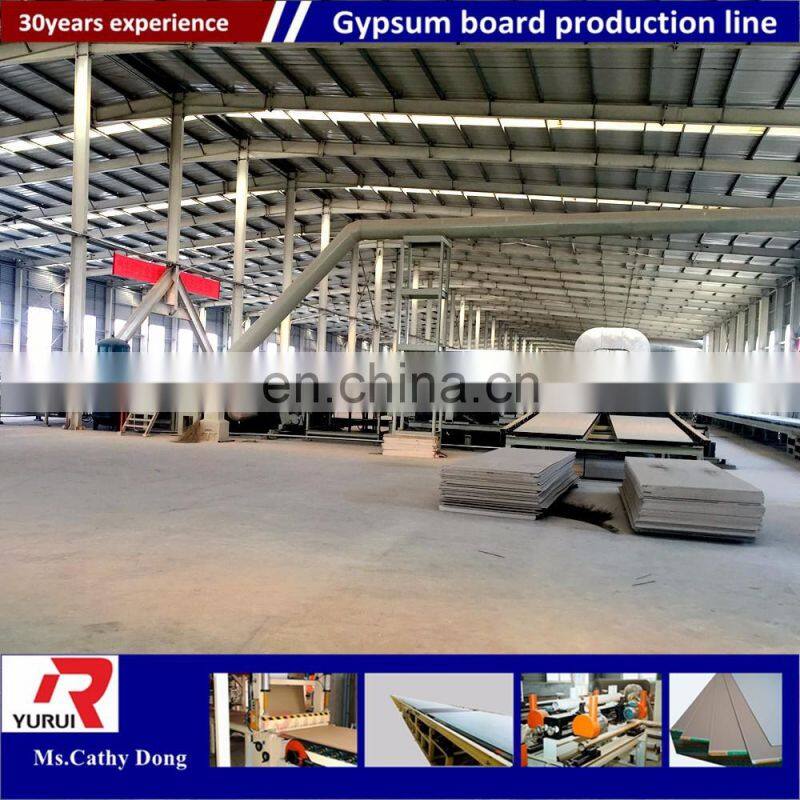

Natural gypsum board production line aerial view

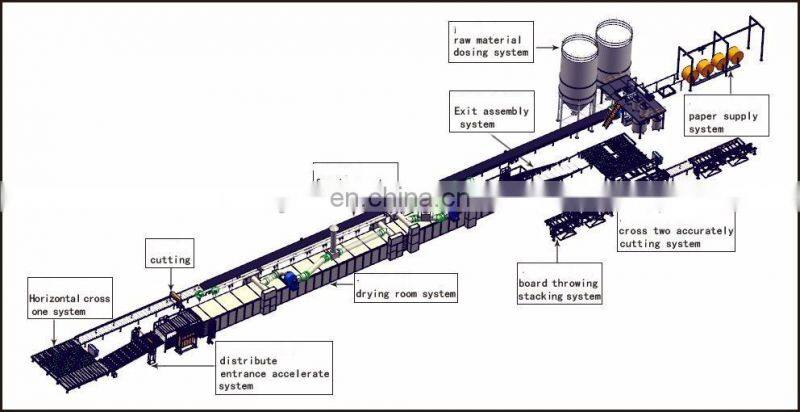

Natural gypsum board production line layout

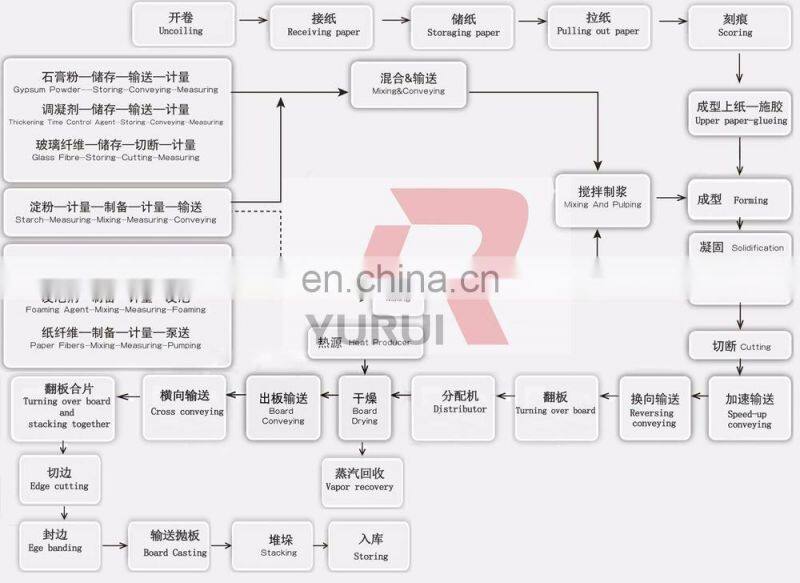

 General working process of germany type gypsum board production line equipments producing

1. Dosing system, to get the qualified gypsum powder slurry

2. Paper supply system, to supply cover paper for gypsum board

3. Forming/solidification system, to form and solidify slurry into board

4. Automatic cutting system, to cut board into required length

5. Transit system, to horizontally transport the cut plate to distributor

6. Distribution system, to transit gypsum board into different story/layer of drying system

7. Drying system, to dry gypsum board by heat

8. Discharging and packing system

 Advantages of our germany type gypsum board production line equipments producing

1. Reasonable structure, low energy-consumption, high output, low noise, easy operation,  small area

space and  exact size of gypsum board.

germany type gypsum board production line equipments producing Equipment data

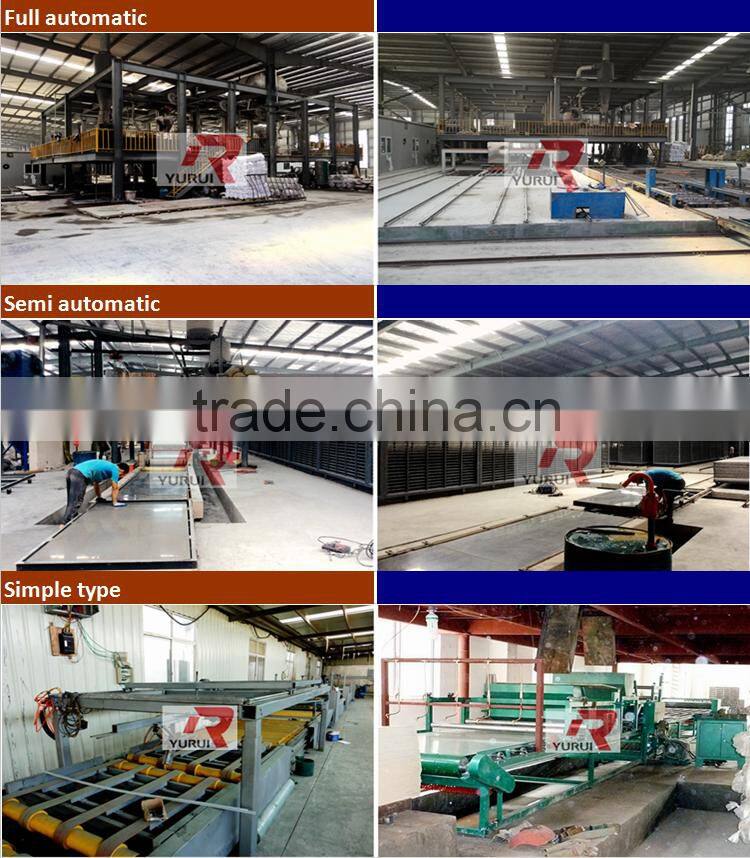

We have different projects with all kinds of configurations,  welcome to our factory.  You will see your ideal configuration. We will show you running plant of China Automatic fireproof mgo Board production line, mgo panel wall machine



Loading

/Shipping

Application: used to dose and mix suitable of raw material to get the gypsum powder slurry.

Composition: Rotary screen, bucket elevator, intermediate storage bunker, speed adjustment screw conveyor, belt measuring said, mixing machine, foaming agent machine, water supplying device, conveyor device, weighing device and electric control parts.

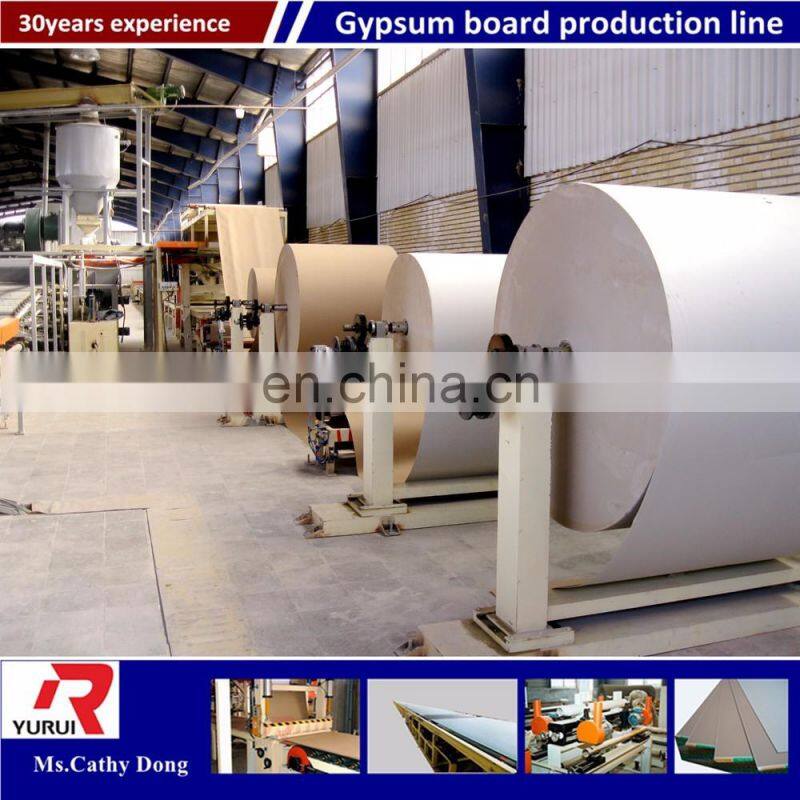

 2,paper supply system

Application:used to provide paper to the gypsum board.

Composition:The paper roll lifting machine, uncoiling device, pneumatic paper receiving machine, paper storing machine, paper pulling machine, paper guiding machine, scoring machine and automatic correction machine.

3,Forming&solidification system

Application: to form the semi-finished gypsum board products from the gypsum powder slurry.

Composition: board forming machine, vibrating forming machine, automatic vertical edge devices, frequency control forming belt, angle edge belt, up into device, belt deviation rectification device and so on.

4,Automatic cutting system

Application: used for cutting the solidified plate on molding belt machine into required length.

Composition: accelerating device, measuring device, servo cutting machine, PLC control system, etc.

 5,Transit system

Usage: used to horizontally transport the cut plate to distributor.

Composition: accelerating device, horizontal transport device, plate turnover device, servo motor control system, etc.

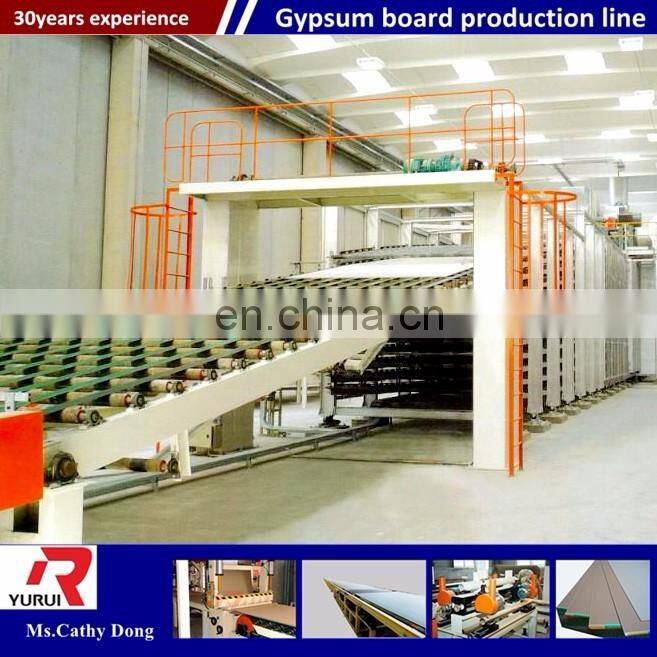

6, Distribution system

Application: used to transport the wet gypsum board to each story of drying machine with the control of PLC distributor.

7,Drying system

 Application:to dry the formed gypsum board.

8,Discharging board and finished board system

Application:Used to convey gypsum board,and cutting to get required size, then edging and stacking.

9,Boiler heating system

Heat conduction oil furnace heating system

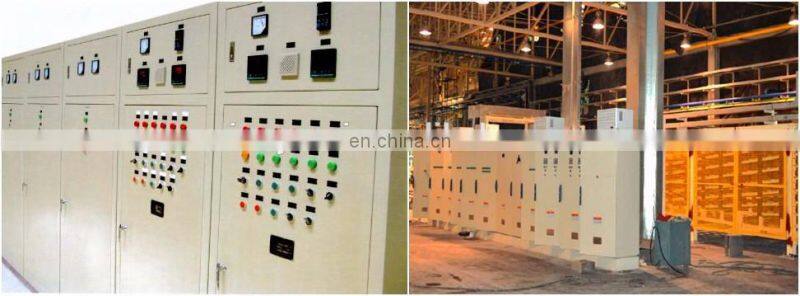

 10,Automation control subsidiary (electronic control system)

1. Promise the most competitive price base on the same quality level

3. Supply the perfect service on machines, production, marketing, 24 hours online consultant

4. Gaurantee machines quality for 1 year after installation

5. Control the delivery time within your expectation

Service from Yurui Company

1. We offer technical support until the workers know how to operate.

2. We offer the technology data and relative files of CE Certification Gypsum Board Machine.

3. The operating instruction will go to the customers with the equipment.

4. We provide lifelong guidance. Visiting clients in regular times.

5. Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.

Q: How long is the warranty of your equipment?

A: 1year

Q: Do you supply spare parts?

A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.

Q: Will you provide training?

A: The training is free of charge, and our engineer will be on duty to train your worker.

Q: How will you provide installation& commissioning

A: Will provide 2~8persons (adjustable according to the degree of automatic) for installation. Engineers team will go with your project.

Q: Can we contact you any time?

A: Yes, of course
