PVC PP PE Single Wall Corrugated Pipe Plastic Drainage Pipe Machine Line
- T/T Credit Card
You May Like
-
PPR Three Layers Pipe Fiber Glass Making Machine / PPR Glass Fiber Pipe Co-extrusion Plastic Machine
-
PPR Three Layers Pipe Fiber Glass Making Machine / PP PE PVC Glass Fiber Pipe Co-extrusion Plastic Machine
-
PVC Garden Soft Flexible Fiber Reinforce Pipe Making Machine/PVC Garden Hose Production Line
-
PVC Garden Soft Flexible Fiber Reinforce Pipe Making Machine/PVC Garden Hose Tube Production Line
-
PVC PP PE PPR Conduit Water Conduit Pipe Extruder Making Machine/ Water Electric Pipe Production Line
-
8caviity Pet Bottle Making Machine Price
Product Details
| Brand Name | Faygo | Place of Origin | Other Country | |
| Certification | CE, ISO | Type | Pipe Production Line | |
| Warranty | 1 Year | |||
| Weight | 3-5T | Dimension(L*W*H) | L12*W2*H2.5m | |
| Production Capacity | 8-15m/min | Condition | New | |
| Voltage | 380V 3Phase 50HZ or customized | Application | Energy Supply Pipe | |
Product Description
PP PE PVC Corrugated pipe making machine
The production line is mainly used to produce small diameter single wall PVC,PP and PE corrugation pipe, which could be used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe; Small size corrugation pipe of 4.5-50mm could be made for car use purpose. Being composed of 65/45/30 extruder, corrugated pipe mould forming machine, pipe die, air-cooling device, winder, the production line can extrude and mold PVC, LDPE, HDPE and other thermoplastic corrugated pipe of many specifications continuously.
| Pipe diameter | 8-32mm | 16-75mm |
| Main Extruder model | SJ50 | SJ65 |
| Main Extruder L/D | 25:1/28:1/30:1 | 25:1/28:1/30:1 |
| Capacity | 30-50kg/h | 60-80kg/h |
| Main Motor | 11KW/15KW | 18.5KW/22KW |
| Cooling type | Air fans cooling | Air fans cooling |
| Forming mould quantity | 50 paris | 60 pairs |
| Production Speed | 8-12m/min | 8-15m/min |
| Forming machine motor | 1.5kw | 1.5kw |
Machine Show:

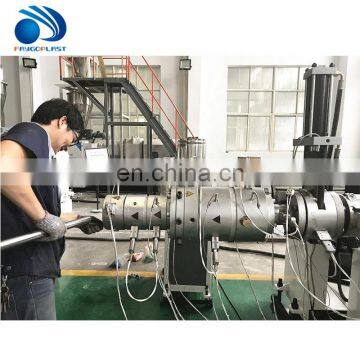

38GrMoALA alloy steel under nitriding treatment . Depth of screw:0.4-0.6mm hardness: HV>740. Depth of barrel:0.5—0.7mm hardness: HV>940
Extrusion capacity: 60kg/h, Main Electrical Parts: Temperature Controller: OMRON, Contactor: SIEMENS

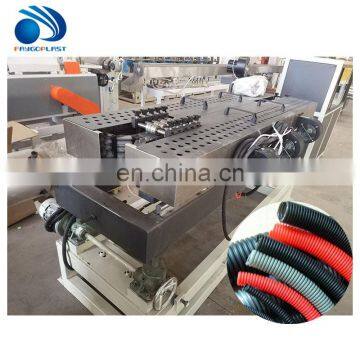

Plastic Corrugated Pipe Molding Machine, Machine Size:2300*650*1150mm, Motor Power:3-4kw, Pipe Diameter:10-58mm
production Speed:5-22m/min, Number of Mould:46-72pairs,
Mold size:36*56.5*75mm, Length of Molds:4070mm, Cooling mode:water cool, Control Mode:Touch screen.

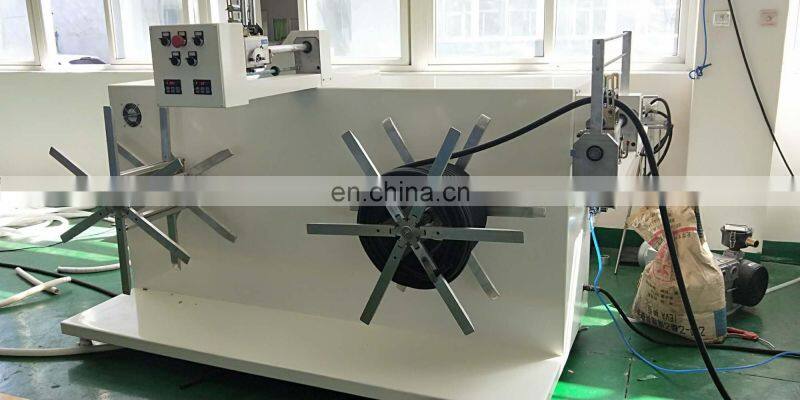

Feature:Adopted with infrared sensor synchronization, and controlled by PLC, this equipment is drived by servo motor with an advantages
in easy to operate, winding smooth and high benefits.
Company Show:
Jiangsu Faygo Union Machinery Co., Ltd is a new high-tech enterprise covering 2000m2, which specialized in researching and manufacturing blowing machines.
Our product have been exported to Middle East, Southeast Asia, South America and Europe etc. We have received universal confirmation and trust from our customers.
Add: No.8, Feixiang Road, Korea Industry Zone, Fenghuang Town, Zhangjiagang City, Jiangsu Province, China.
